EPV15FLEX Flexible SMD LED Video Panel

EPV15FLEX Flexible SMD LED Video PanelArchive

Code 1239100066

The EPV15 Flex is a flexible / bendable 15mm pitch indoor / outdoor rated LED panel designed to provide flexible designs giving you the ability to make seamless circles, curves and arches of LED video. Integrated power / data on-board and easy rigging and quick connections make this unit ideal for portable applications.

Code 1239100066

EPV15FLEX Flexible SMD LED Video Panel

Technical Data

- Indoor / Outdoor proved
- 15mm Pixel Pitch

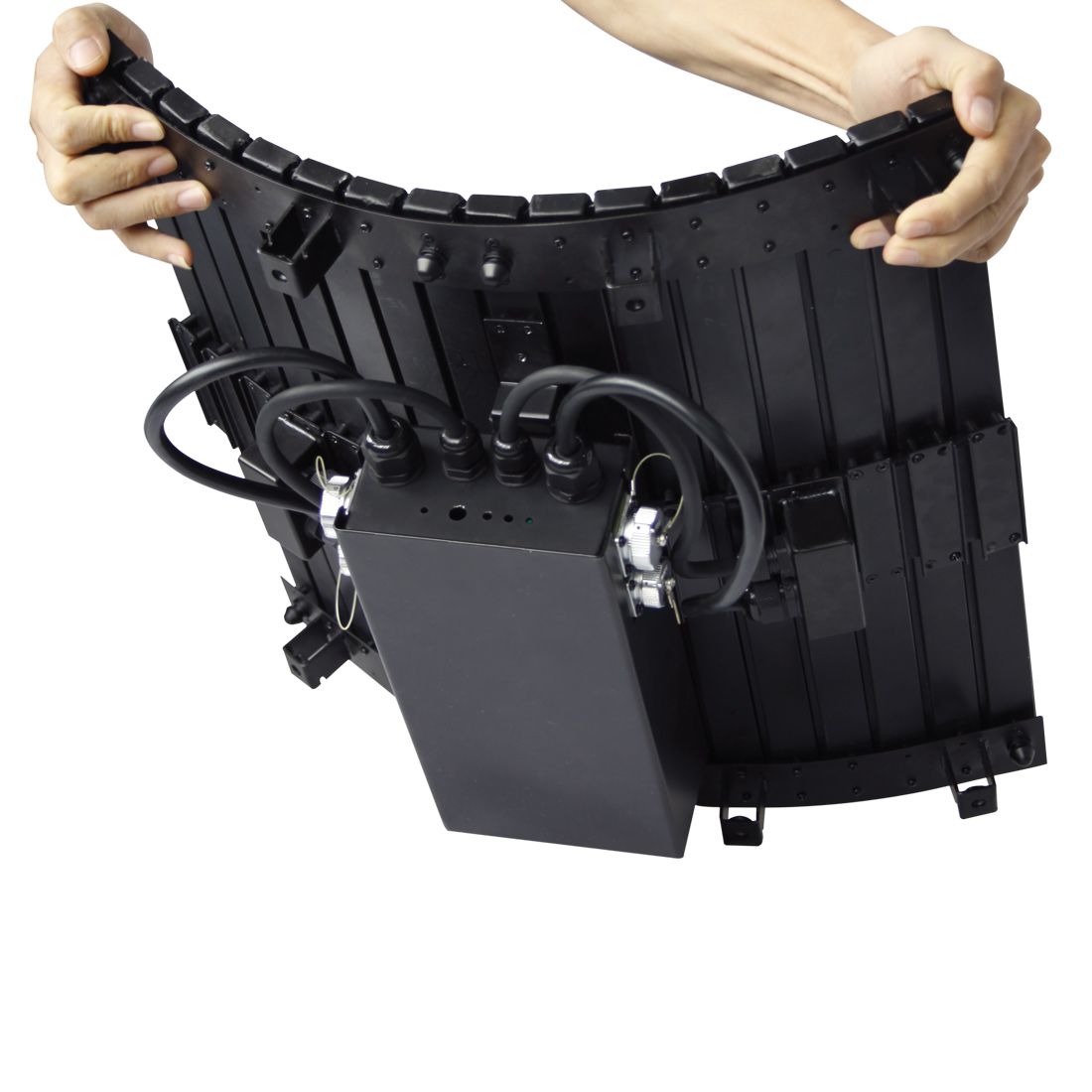

- Easy Flex Design for Creating Curved Video Walls
- Ideal For Rental / Production / Install
- Seamless Building System
- extreme bightness for outdoor use
- Lightweight, super-thin, semi-transparent design

Specifications
- IP65 Front / IP54 Back
- 3-in-1 RGB SMD LED, type 5050
- Long Life LED (rated at 100,000 Hours)
- 15mm Pixel Pitch
- 4500 Nits brightness
- Frame Size 480mm x 480mm x 90mm
- Refresh Rate ≥600Hz
- Contrast ratio ≥16384
- 12bit Processing Depth
- 1024 pixels (32 x 32) Pixels per Panel
- 4444 pixel per square meter
- Scanning Rate 100Hz
- Viewing angle: H140°/V110°
- Minimum Viewing distance 12m
- Weipu outdoor data connectors
- Weipu outdoor power link
- Operating temperature: -20 C to +50 C
- Operating humidity: 5%-95%
- 100-240V AC, 50/60Hz (Multi-voltage)
- Power consumption per panel maximal: 300W
- Average power consumption per panel: 190W
- Weight: 7.5 kg
