Code 1239100136

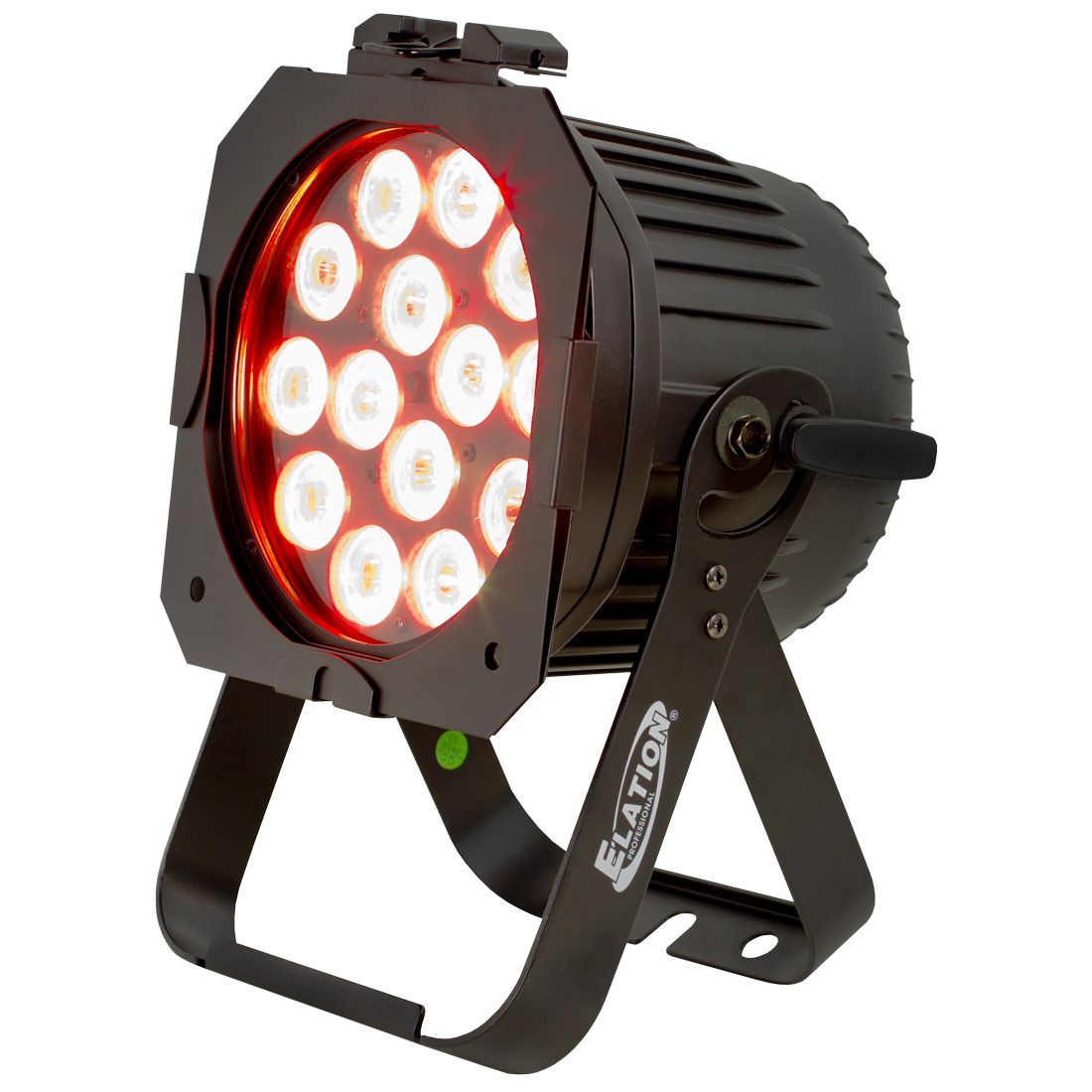

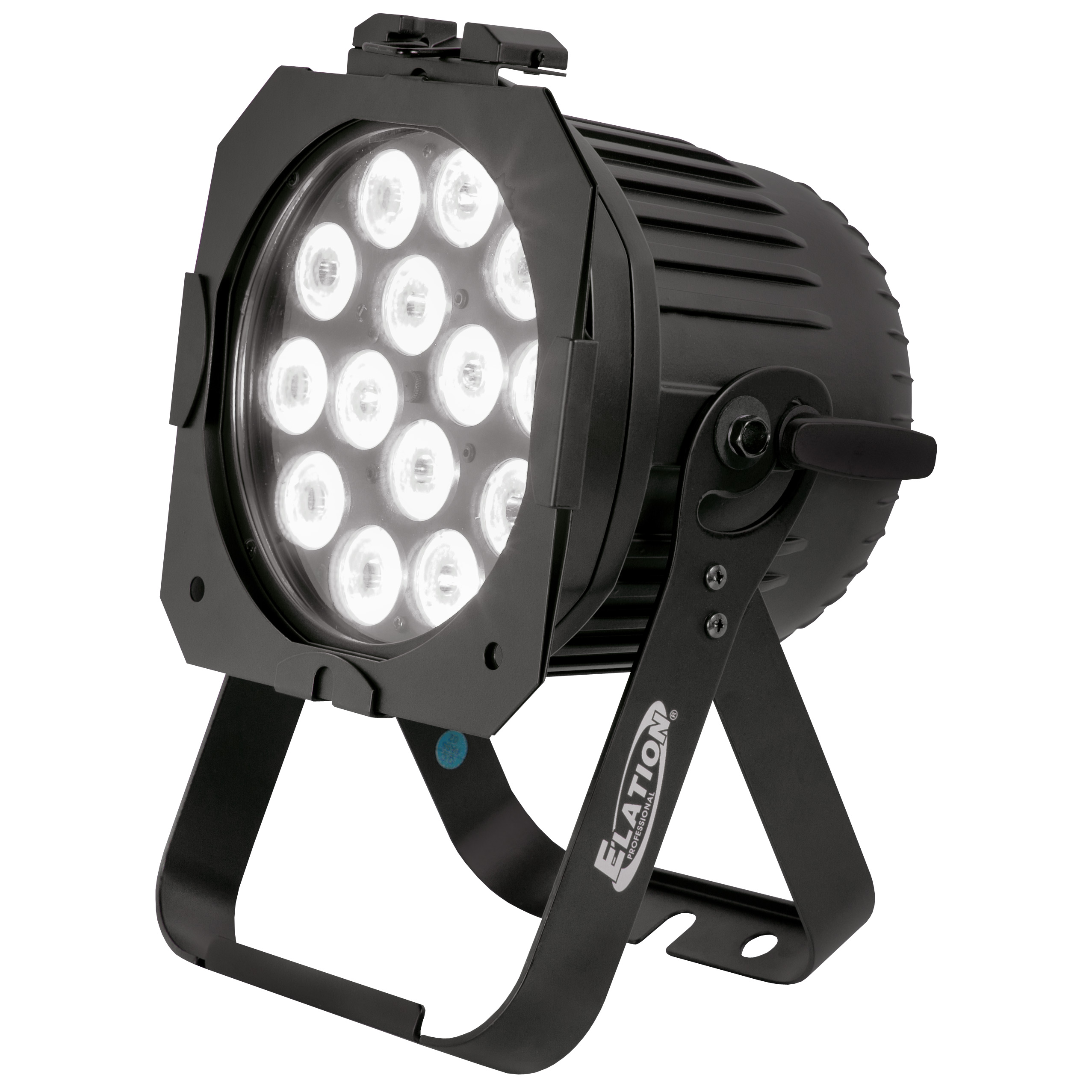

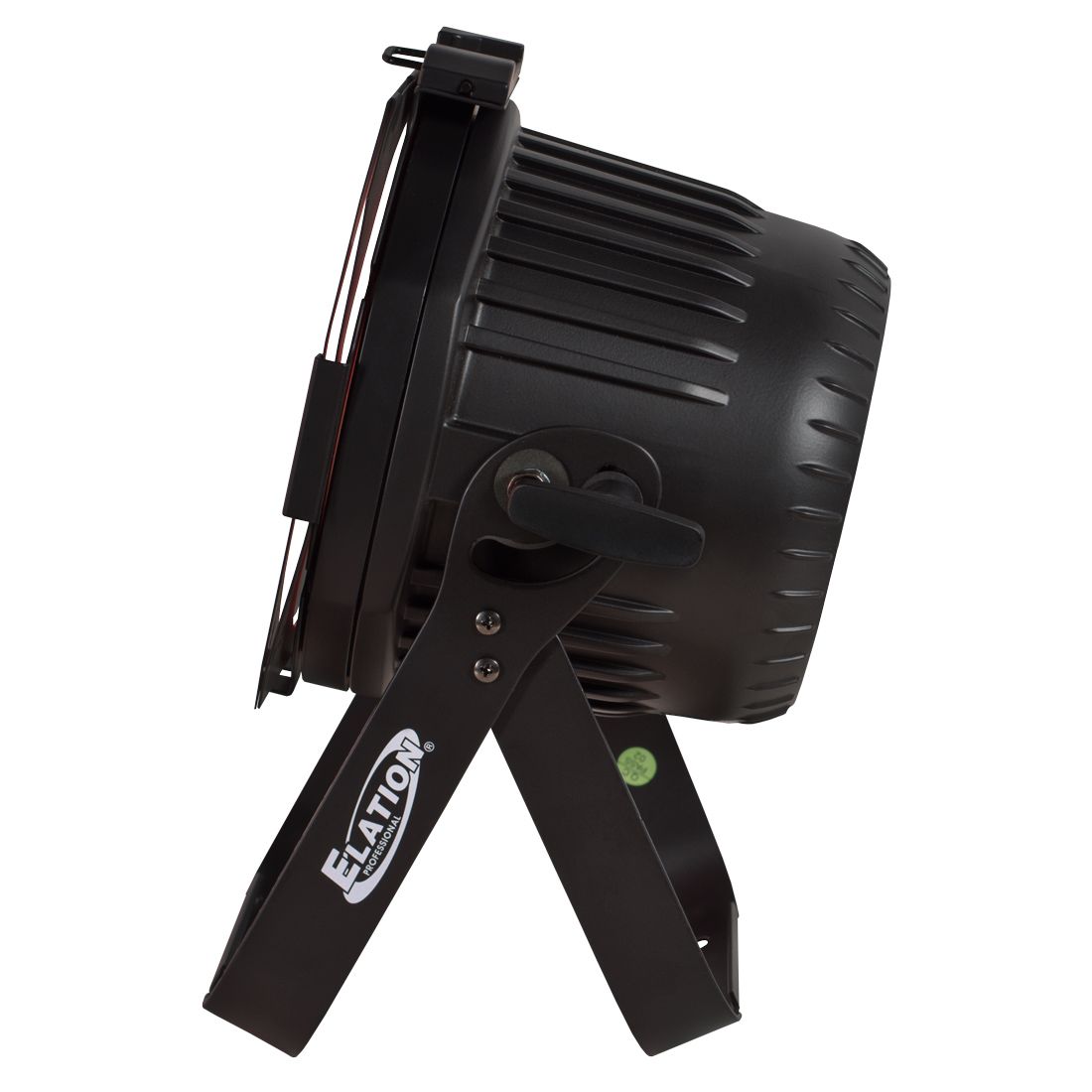

Epar QW

The Epar QW™ features (14) 5W QUAD color RGBW LEDs, 10° beam angle, electronic strobe (1-18 fps) and dimming (0-100%), 5 different dimming curves, flicker free operation for TV and Film, 85W max power consumption, no fans - silent operation and a multi-voltage universal auto switching power supply (120-240v).

Technical Data

FEATURES

10° Beam Angle
Glass Front
Gel Frame Holder Included
No Fans - Silent Operation
Flicker Free Operation for TV and Film


SOURCE

(14) 5W QUAD Color RGBW LEDs
50,000 Hour Average Life


PHOTOMETRICS


10° Beam Angle, 15° Field Angle
1.363 LUX @ 3M


EFFECTS

Electronic Strobe
5 Selectable Dimming Curves
Color and Chase Macros
Electronic Dimming: 0% - 100%

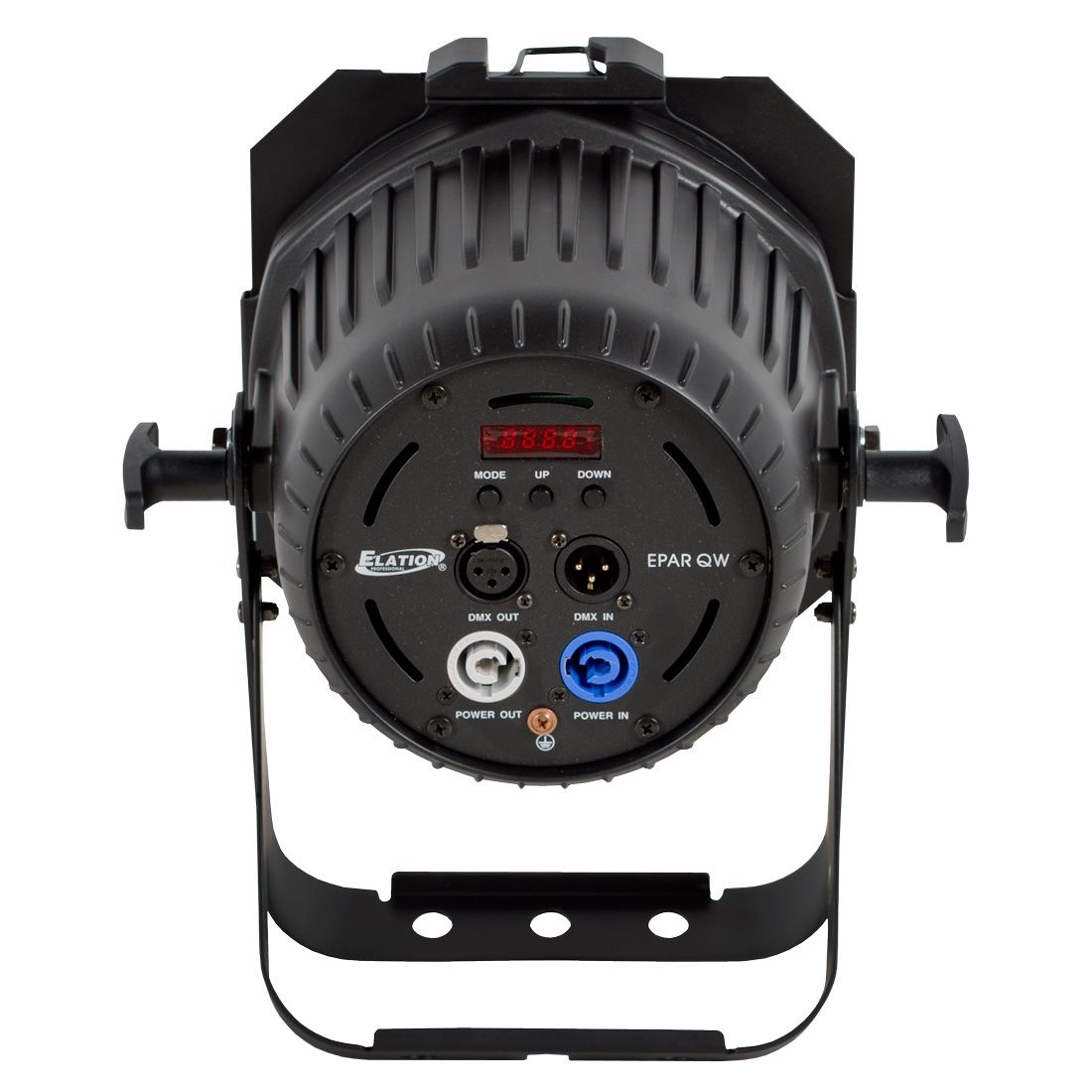

CONTROL / CONNECTIONS

(4) DMX Channel Modes (1/3/5/6/8/9)
(4) Button Control Panel
LCD Menu Display
Locking 3pin DMX In/Out
Locking power connector In


SIZE / WEIGHT

Length: 252mm
Width: 216mm
Vertical Height: 281mm
Weight: 4,1kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
85W Max Power Consumption
-25°C to 45°C

Specifications and documentation subject to change without notice
