  • ELAR QUAD PAR
Code 1236200025

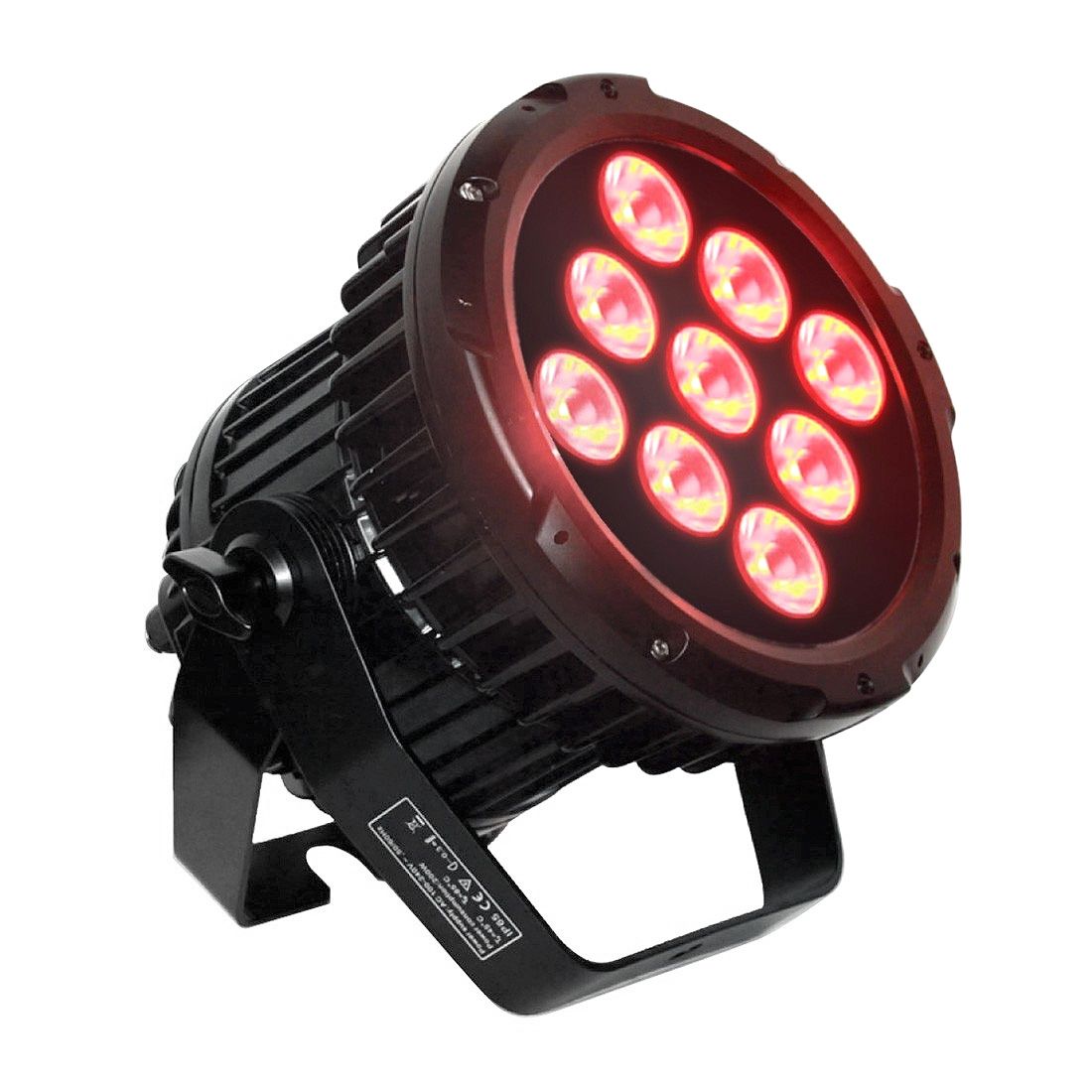

ELAR QUAD PAR

More Power, More Punch, More Pixels... Designers and lighting professionals can dial up a spectrum of rich, perfectly blended colors for illuminating the largest stages, buildings, facades, landscapes and other entertainment or architectural elements where extreme output and/or direct view pixel blinder effects are desired with the Elar Quad Pars from Elation Professional.

Technical Data

FEATURES

IP65 Rated
8° Beam Angle
Single Pixel Control
Flicker Free Operation for TV and FILM
Rugged Die-Cast Aluminum Exterior
Multiple Unit Power Linking


SOURCE

(9) 10W QUAD Color CREE RGBW LEDs
100,000 Hour Average Life


PHOTOMETRIC DATA

14,250 LUX @2,5M


EFFECTS

Electronic Strobe 1-18FPS
Color and Chase Macros
Electronic Dimming: 0% - 100%


CONTROL / CONNECTIONS

(6) DMX Channel Modes (4/5/7/9/18/36)

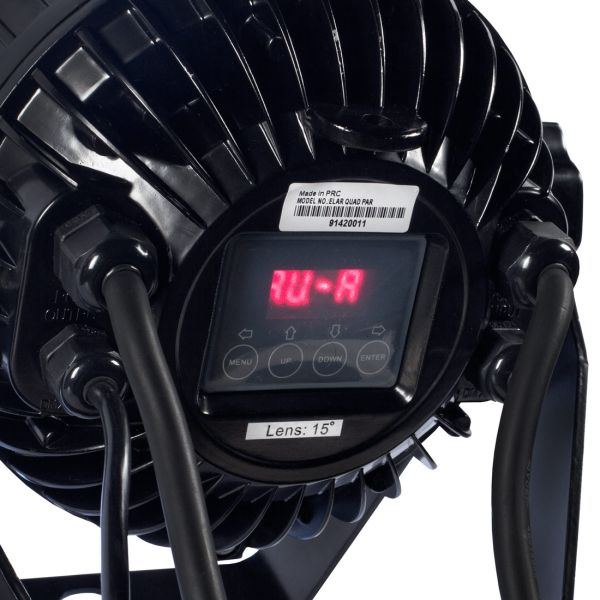

(4) Button Control Panel
Color LCD Menu Display
IP 3pin DMX In/Out
IP 3pin Power In/Out

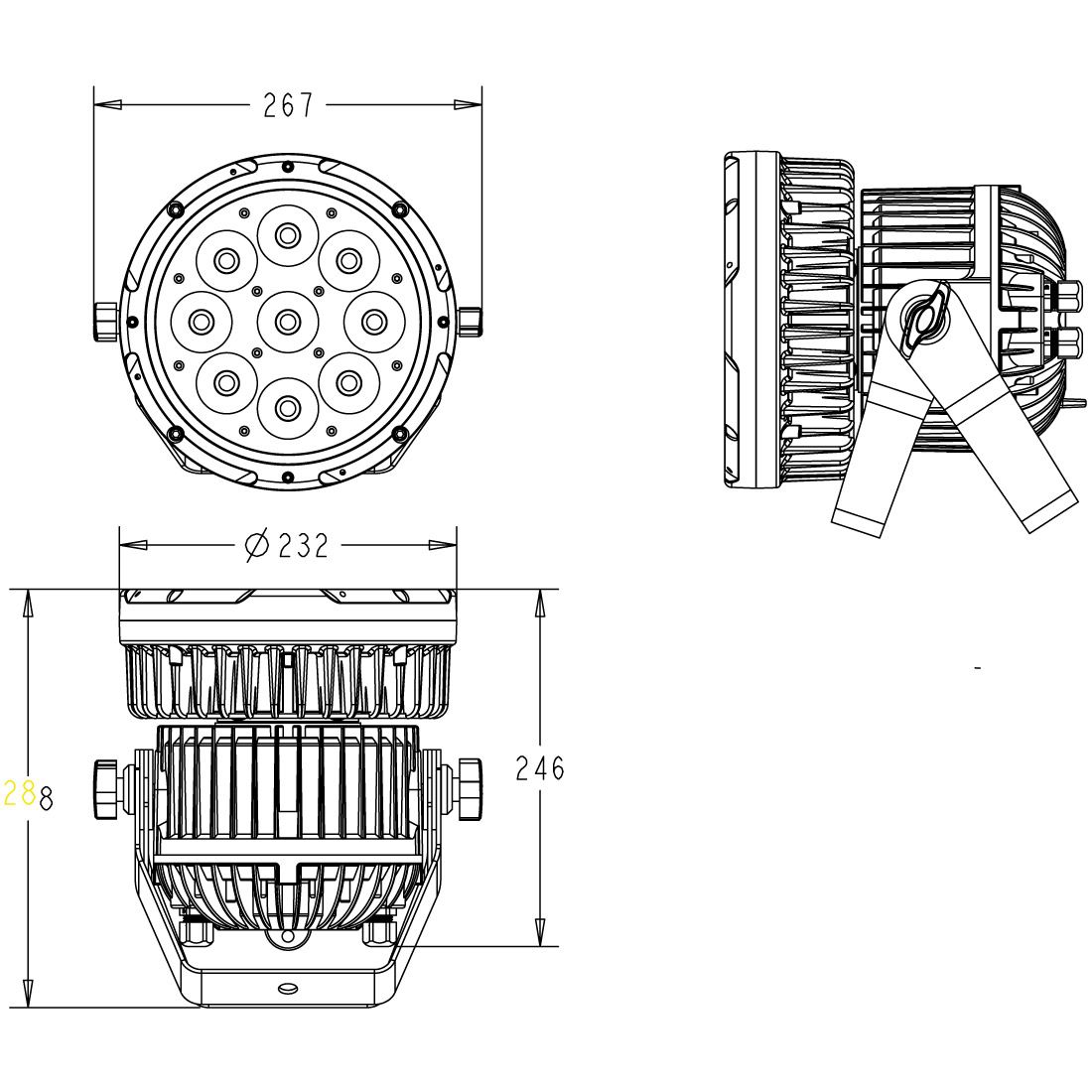

SIZE / WEIGHT

Length: 267mm
Width: 232mm
Vertical Height: 246mm
Weight: 5,5kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
125W Max Power Consumption
Multiple Unit Power Linking
-25°C to 45°C

Specifications and documentation subject to change without notice
