  • ELAR QUAD PANEL
Code 1236200024

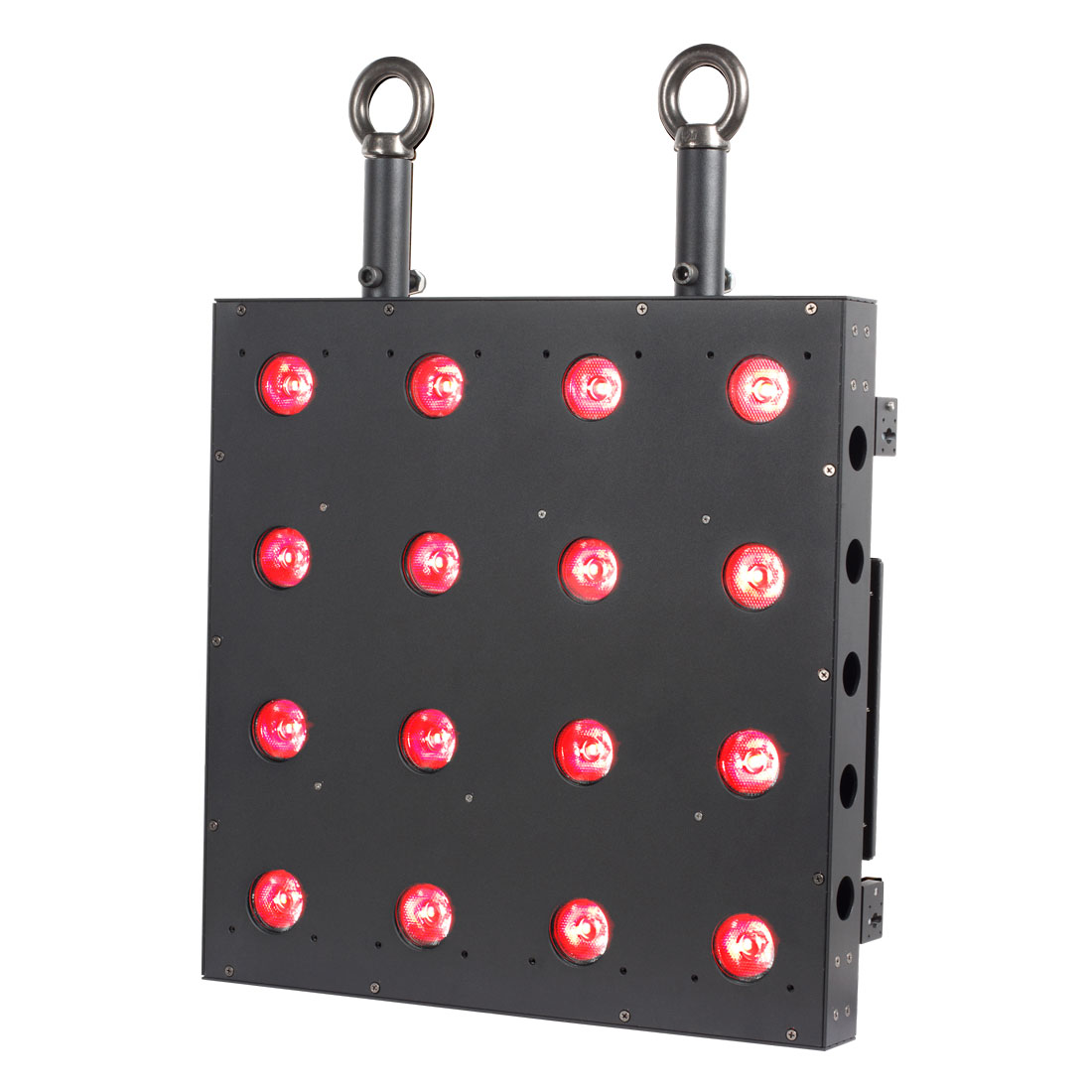

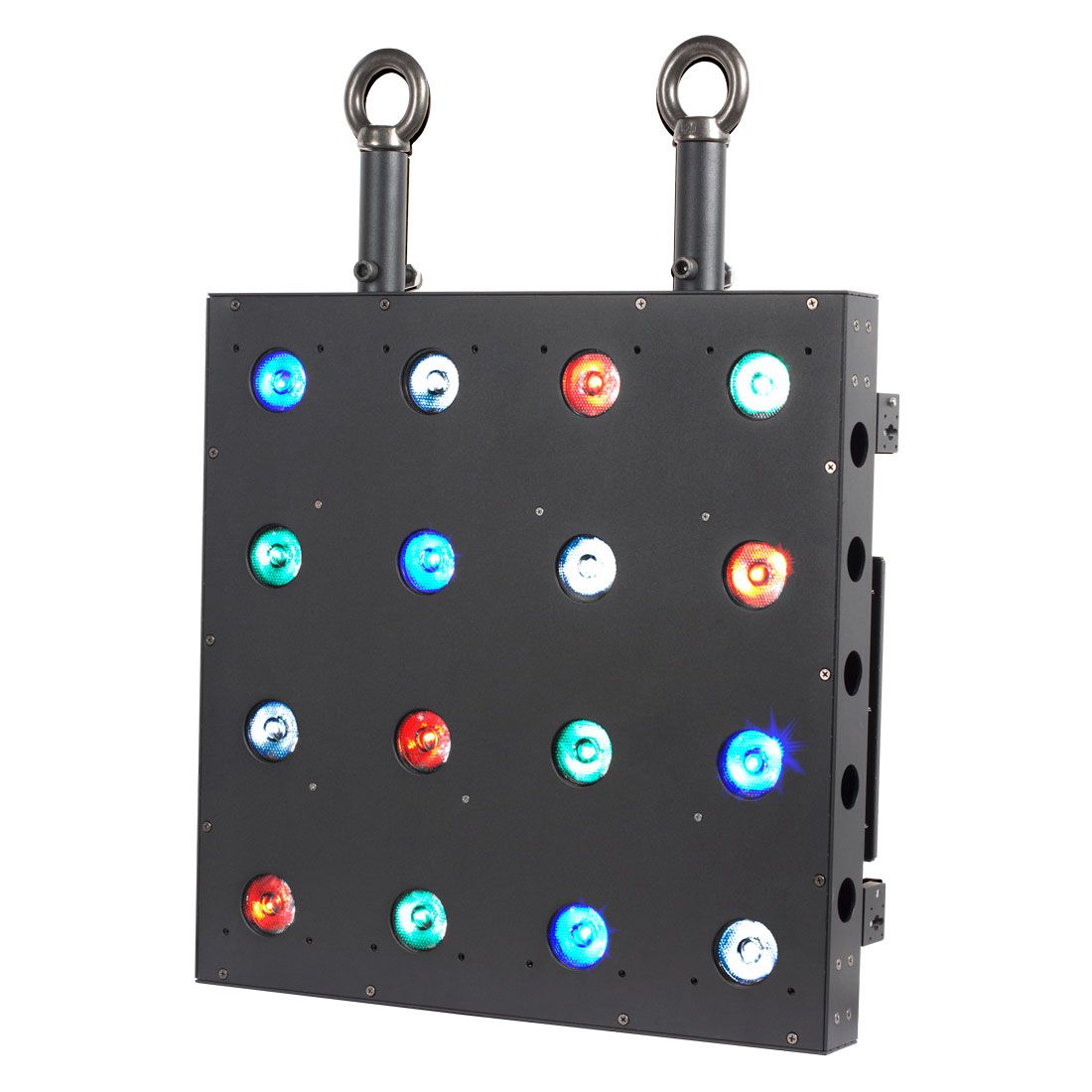

ELAR QUAD PANEL

More Power, More Punch, More Pixels... Designers and lighting professionals can dial up a spectrum of rich, perfectly blended colors for illuminating the largest stages, buildings, facades, landscapes and other entertainment or architectural elements where extreme output and/or direct view pixel blinder effects are desired with the Elar Quad Panels from Elation Professional.

Technical Data

FEATURES

IP65 Rated

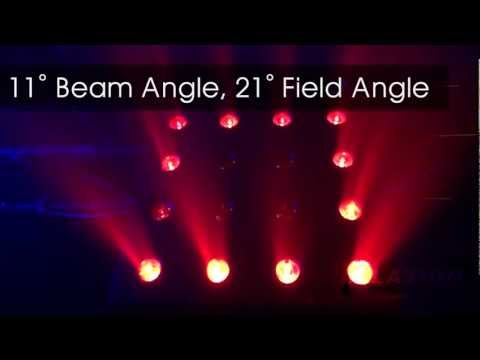

12° Beam 21° Field Angles
Single Pixel Control
Seamless Modular Construction
Flicker Free Operation for TV and FILM

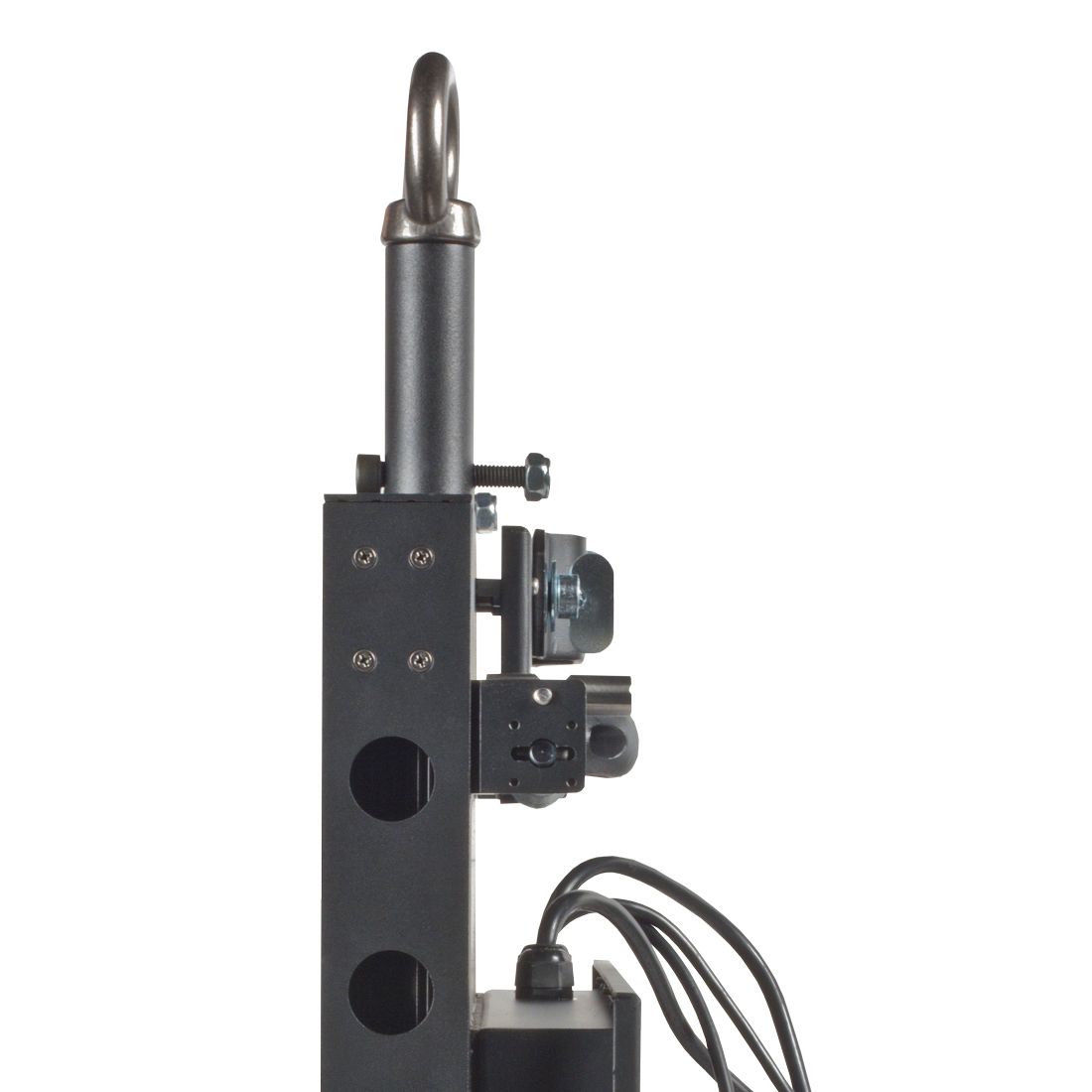

Rugged Die-Cast Aluminum Exterior
Multiple Unit Power Linking


SOURCE

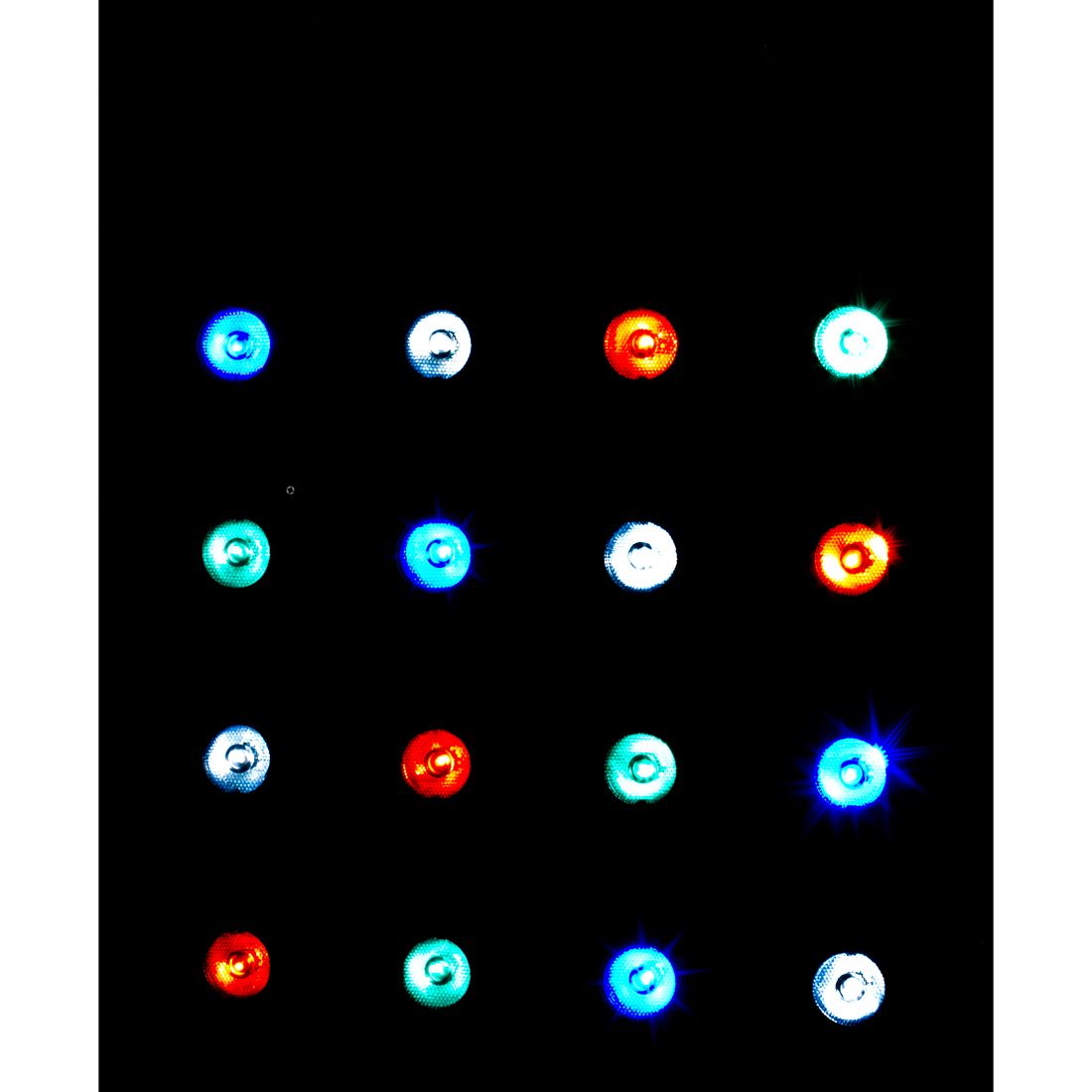

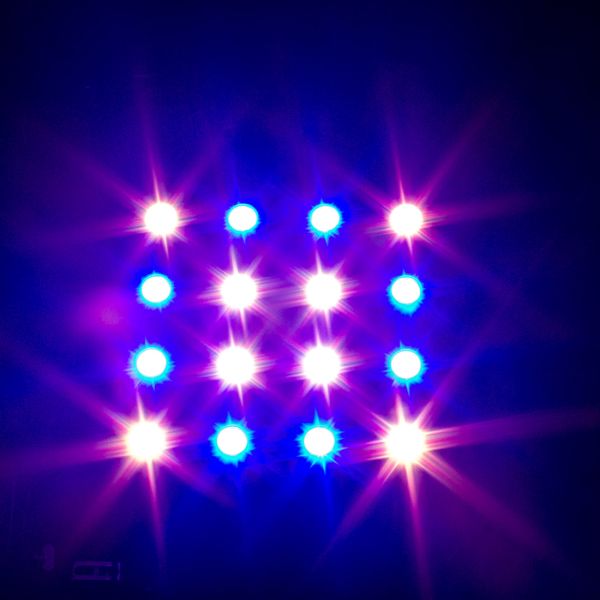

(16) 10W QUAD Color CREE RGBW LEDs
100,000 Hour Average Life


PHOTOMETRIC DATA

12,170 LUX @2,5M


EFFECTS

Electronic Strobe 1-18FPS
Color and Chase Macros
Electronic Dimming: 0% - 100%

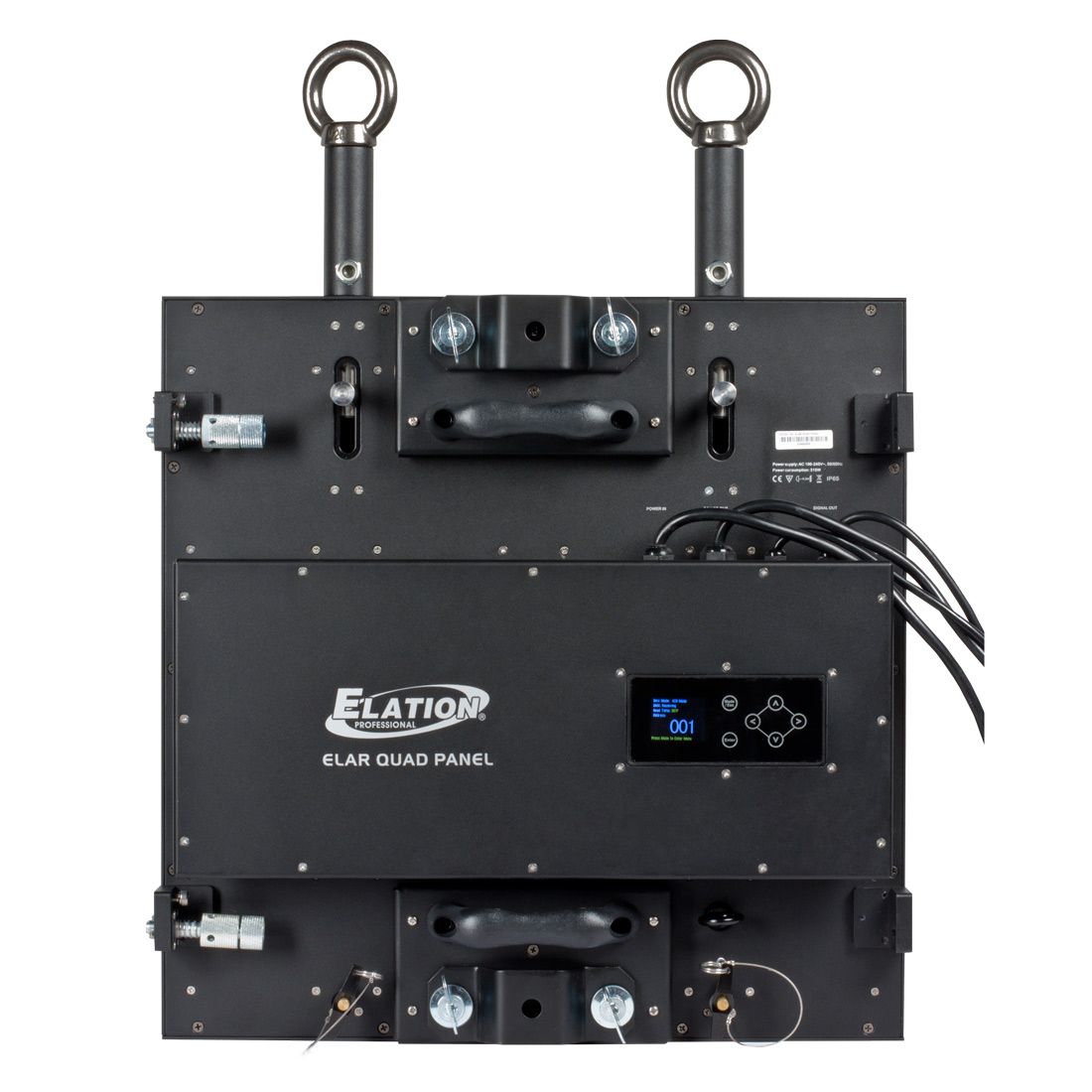

CONTROL / CONNECTIONS

(7) DMX Channel Modes (4/5/8/10/8_2/16_4/64)
(4) Button Control Panel
Color LCD Menu Display
IP 3pin DMX In/Out
IP 3pin Power In/Out

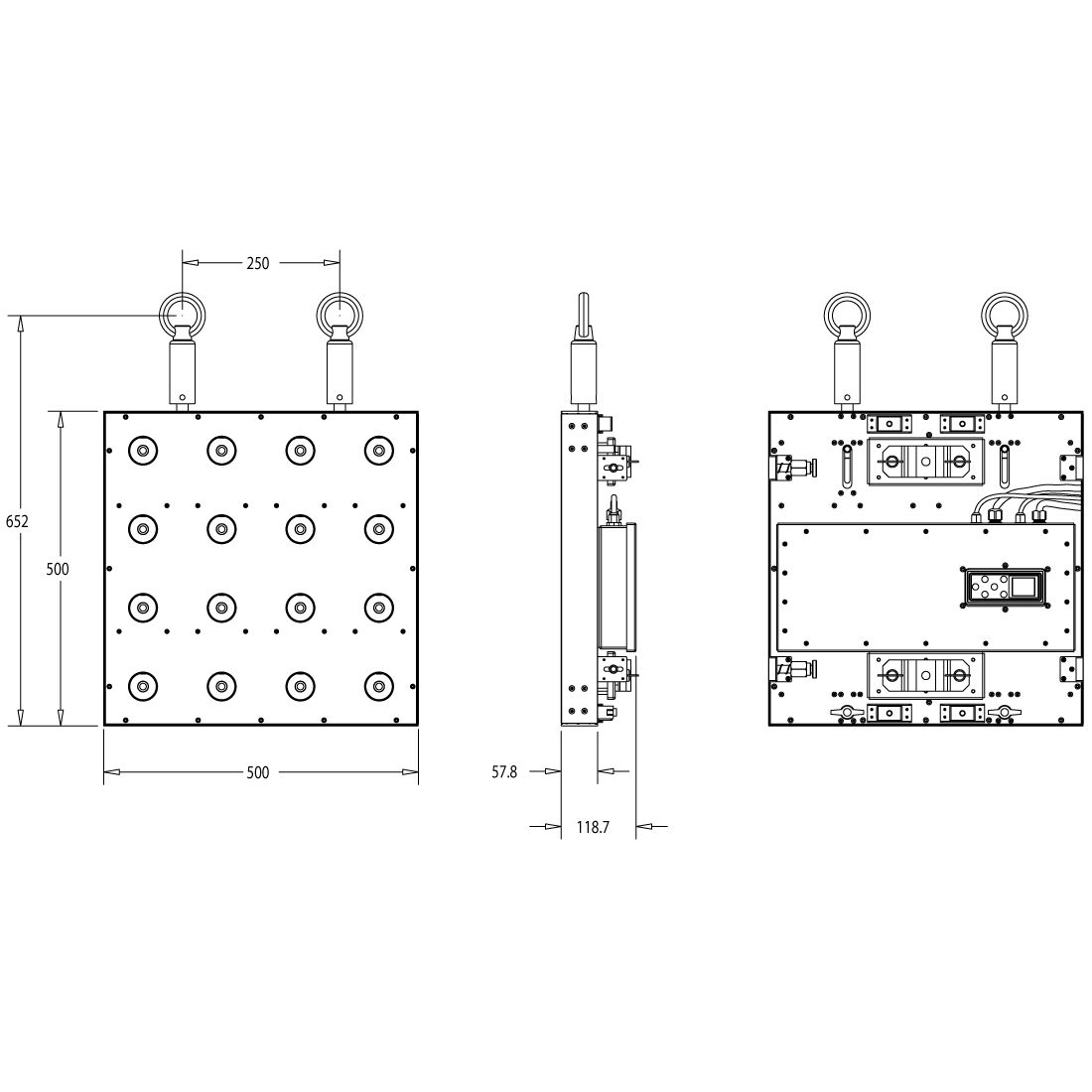

SIZE / WEIGHT

Length: 500mm
Width: 500mm
Vertical Height: 119mm
Weight: 19kg


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
290W Max Power Consumption
Multiple Unit Power Linking
-25°C to 45°C

Specifications and documentation subject to change without notice
