Code 1236300058

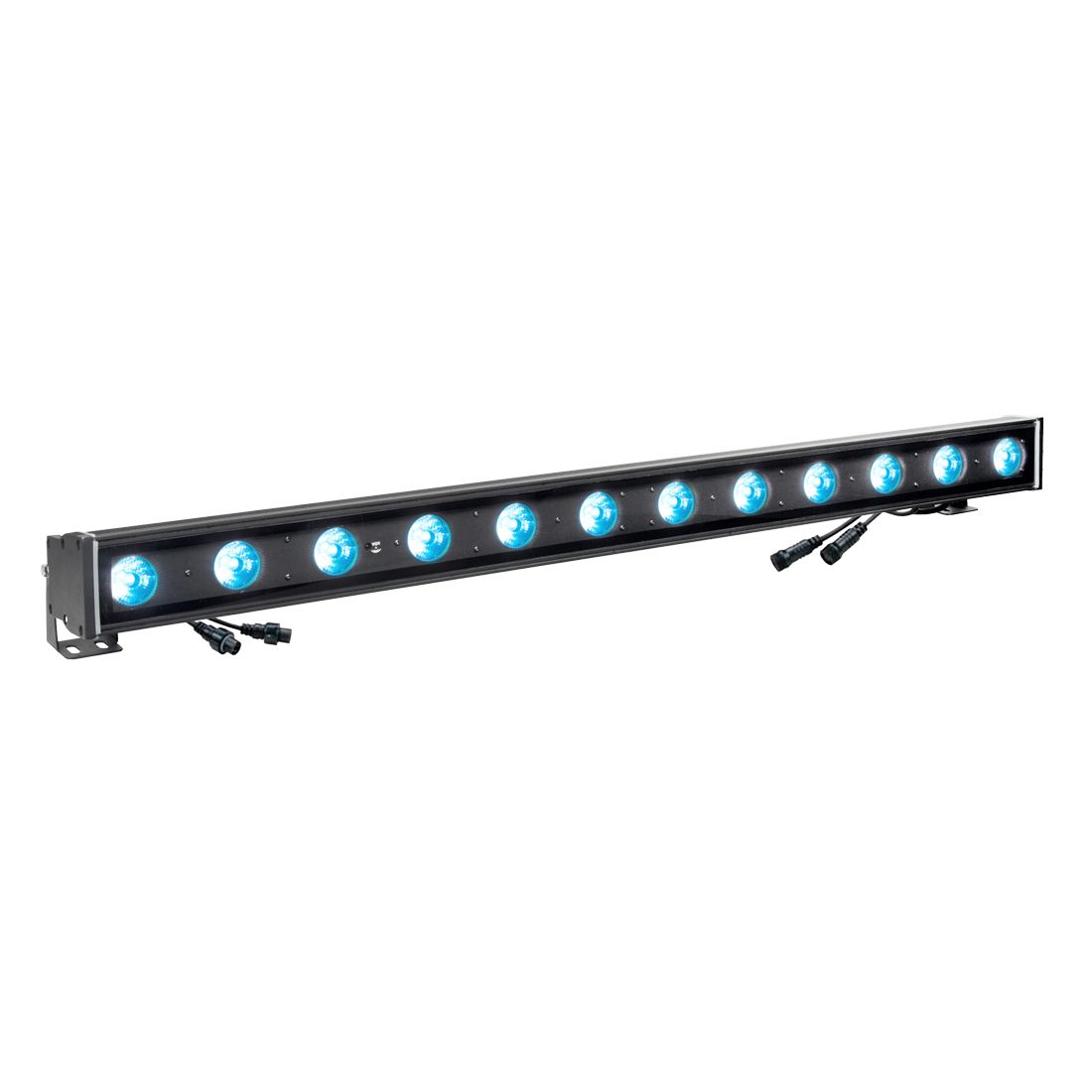

ELAR EXTQW BAR HP

The IP65-rated ELAR EXTQW BAR HP™ features 5W QUAD RGBW Color LEDs, a 25° beam angle, variable color and strobe effects, flicker free operation for TV and Film, 3pin DMX in/out and 4pin power in/out connections, integrated rigging yoke, linkable power, low power consumption and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

IP65-Rated
25° Beam Angles
Full RGBW Color Mixing
No Fans - Silent Operation
Pixel Controlled LEDs
Die-Cast Aluminum Housing / Tempered Glass
IR Remote Programmable
Flicker Free Operation for TV and Film
RDM - Remote Device Management


SOURCE

(12) 5W QUAD Color (RGBW) LEDs
50,000 Hour Average LED Life


PHOTOMETRIC DATA

1,430 LUX @ 3m (25°)


EFFECTS

Color + Variable Strobe Macros
Electronic Dimming: 0% - 100%


COLOR

Full RGBW Color Mixing and Color Macros


CONTROL / CONNECTIONS

(3) DMX Channel Modes (7/11/51)
Power Link Multiple Units - (6) at 120V (12) at 240V

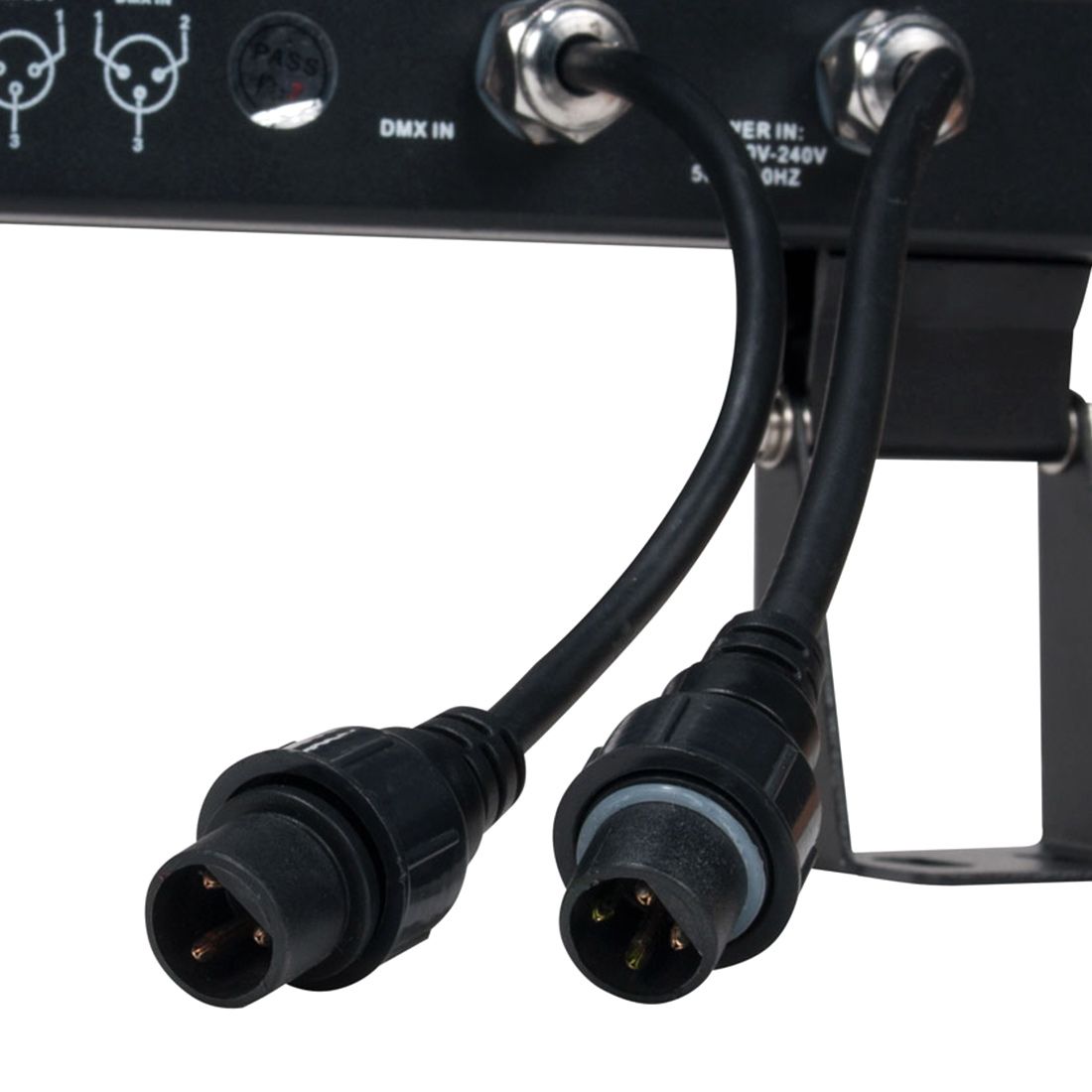

3pin IP DMX In/Out

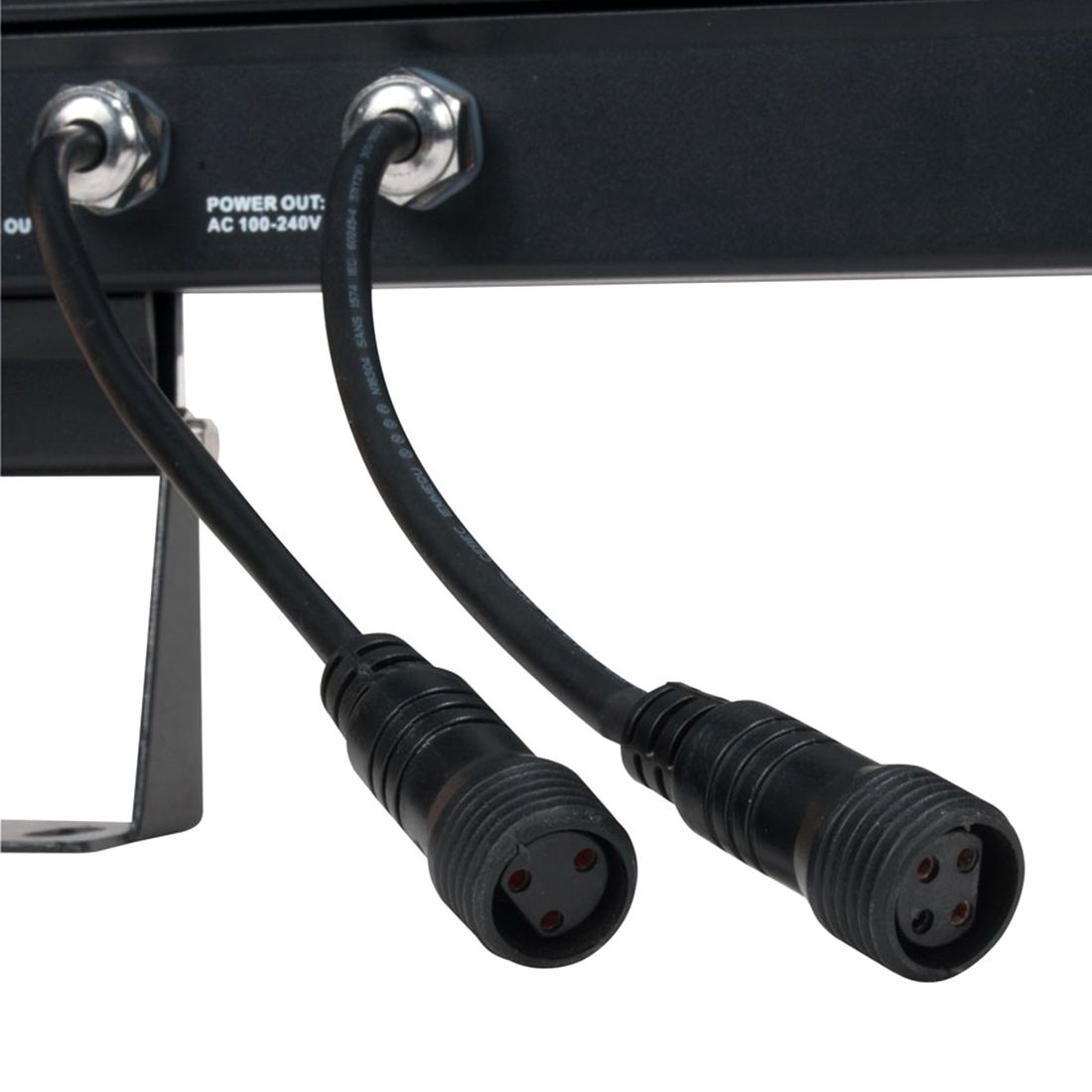

4pin IP Power In/Out


SIZE / WEIGHT

Length: 39.4” (1000mm)
Width: 3.5” (90mm)
Vertical Height: 7.1” (181mm)
Weight: 11.5 lbs. (5.2 kg)


ELECTRICAL

AC 100-240V - 50/60Hz
90W Max Power Consumption


INCLUDED ITEMS

(1) 6.5 ft. (2m) 4pin Female to CEE 7/7 Power Cable
(1) 5.5 ft. (1.7m) 3pin IP Male to 3pin XLR Female DMX Cable
(1) 5.5 ft. (1.7m) 3pin IP Female to 3pin XLR Male DMX Cable
(1) Bag of DMX End Caps
(2) Mounting Brackets

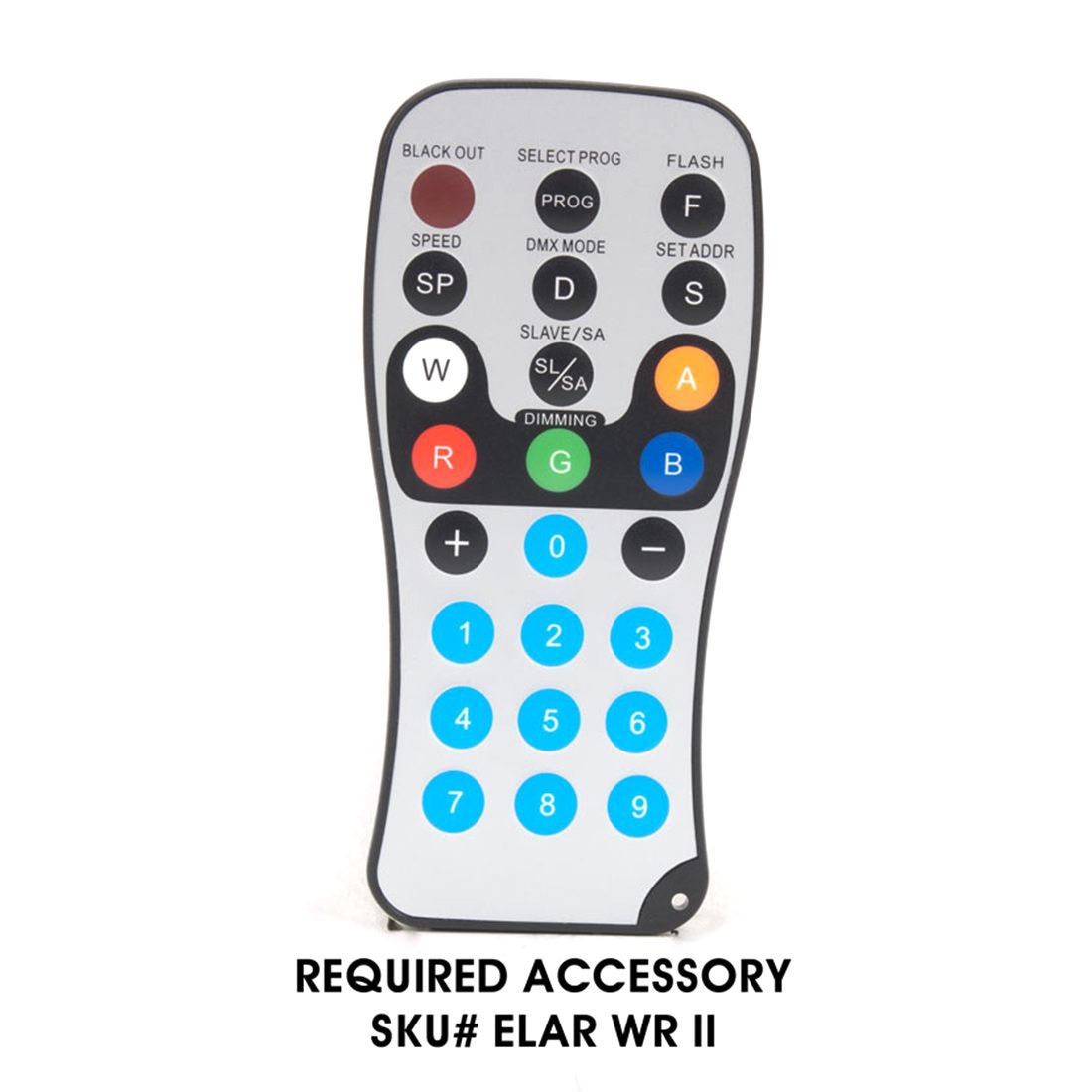

Elar WR II Remote required!

Specifications and documentation subject to change without notice
