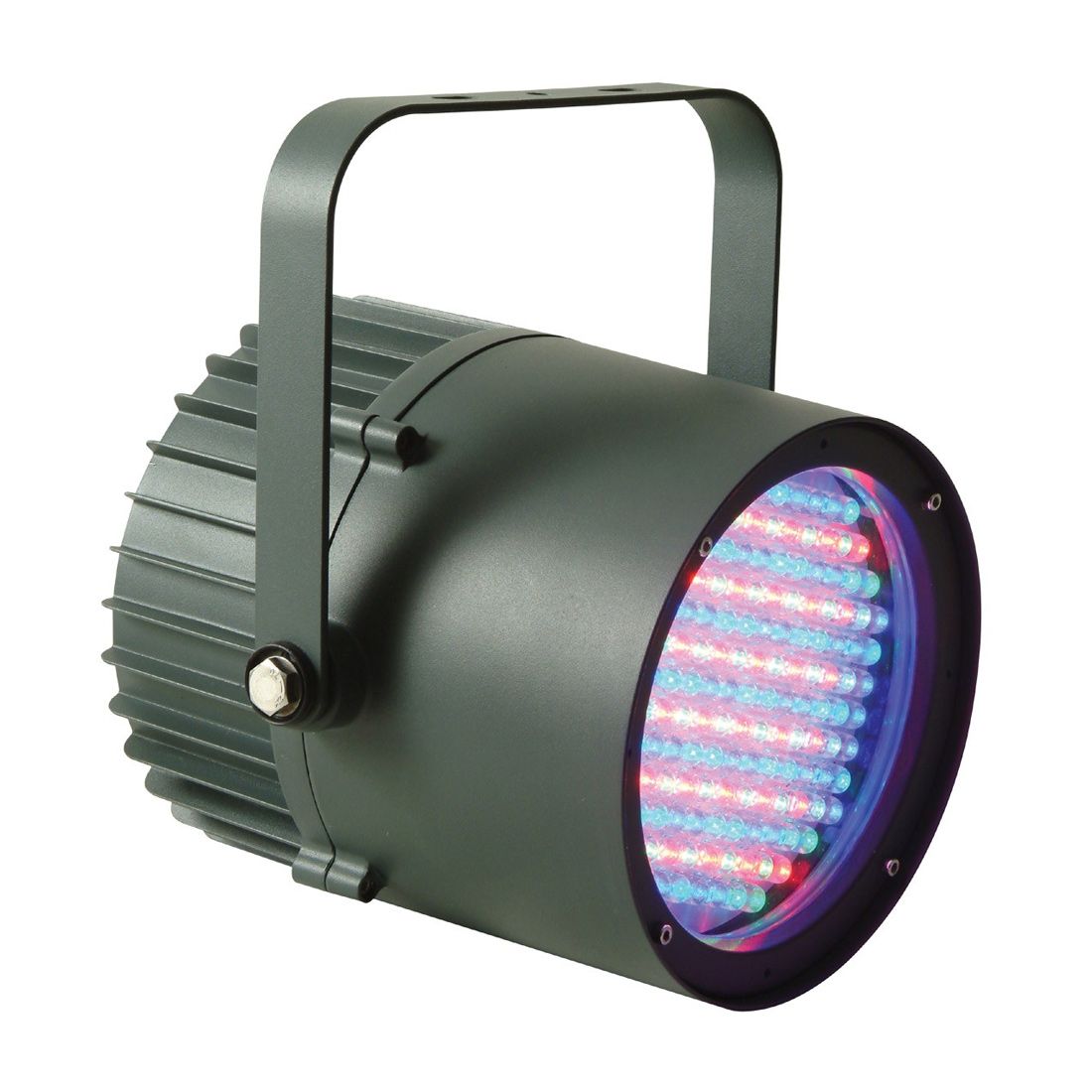

Code
1236100001
- 145x 10mm high power LEDs
- 40 degr. beam angle
- IP 65 outdoor rated
- DMX controllable
- IR remote controllable

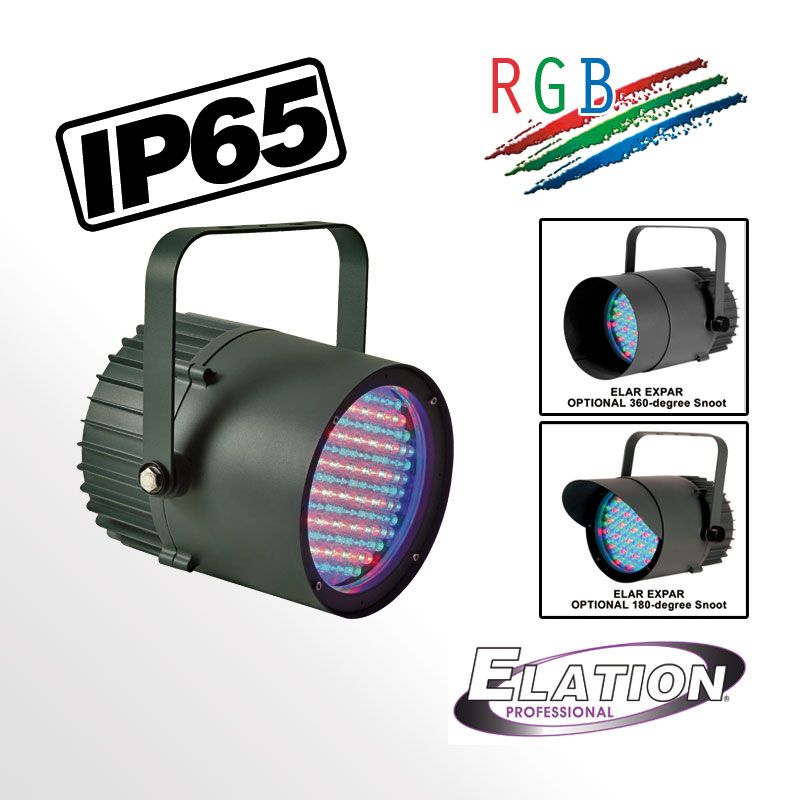

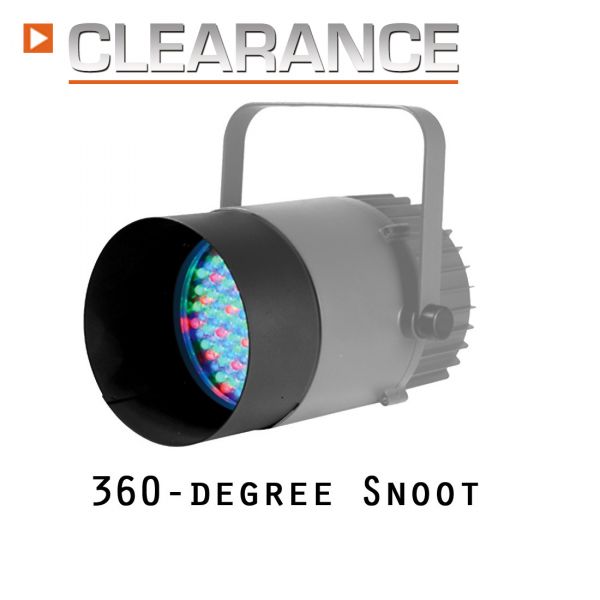

- Optional snoots available
- Die-cast aluminum housing
Specifications
- RGB 10mm High Power LEDs- 145 LEDs

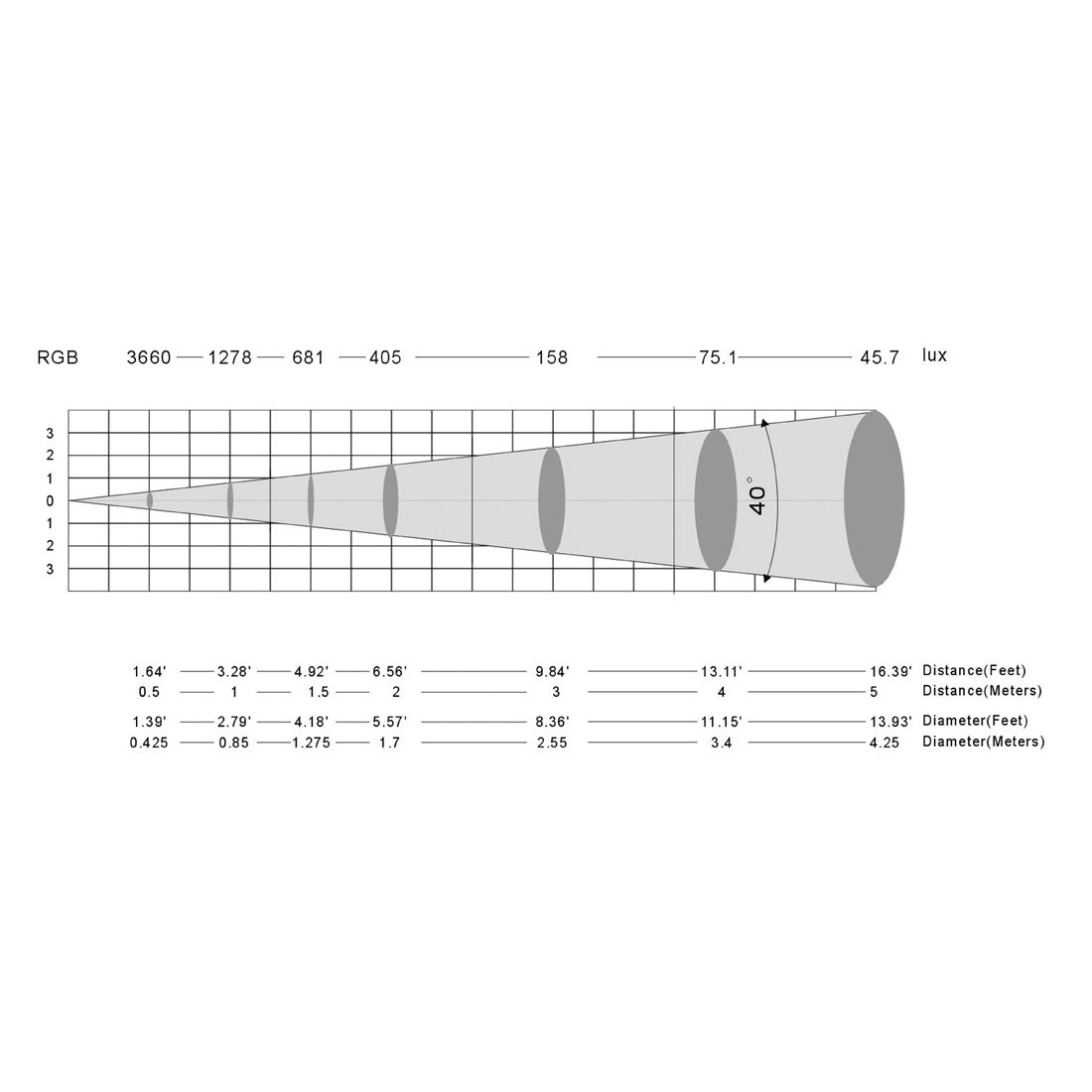

- Beam angle: 40 degr.
- Power consuption only 20W
- Power/Data Linkable
- Internal power supply
- IP65 rated for permanent outdoor use
- DMX-512 or Stand-Alone
- Die cast aluminum housing
- Durable mounting yoke
- UV Protection Front Plexi glass for long time outdoor use
- Remote control by ELAR WR wireless (sold seperately)
- Special cables for Outdoor use (optional)
- ELAR Wireless to control unit (optional)
- Special converter cable to connect to DMX (optional)
- Power supply: 100 - 240 V AC

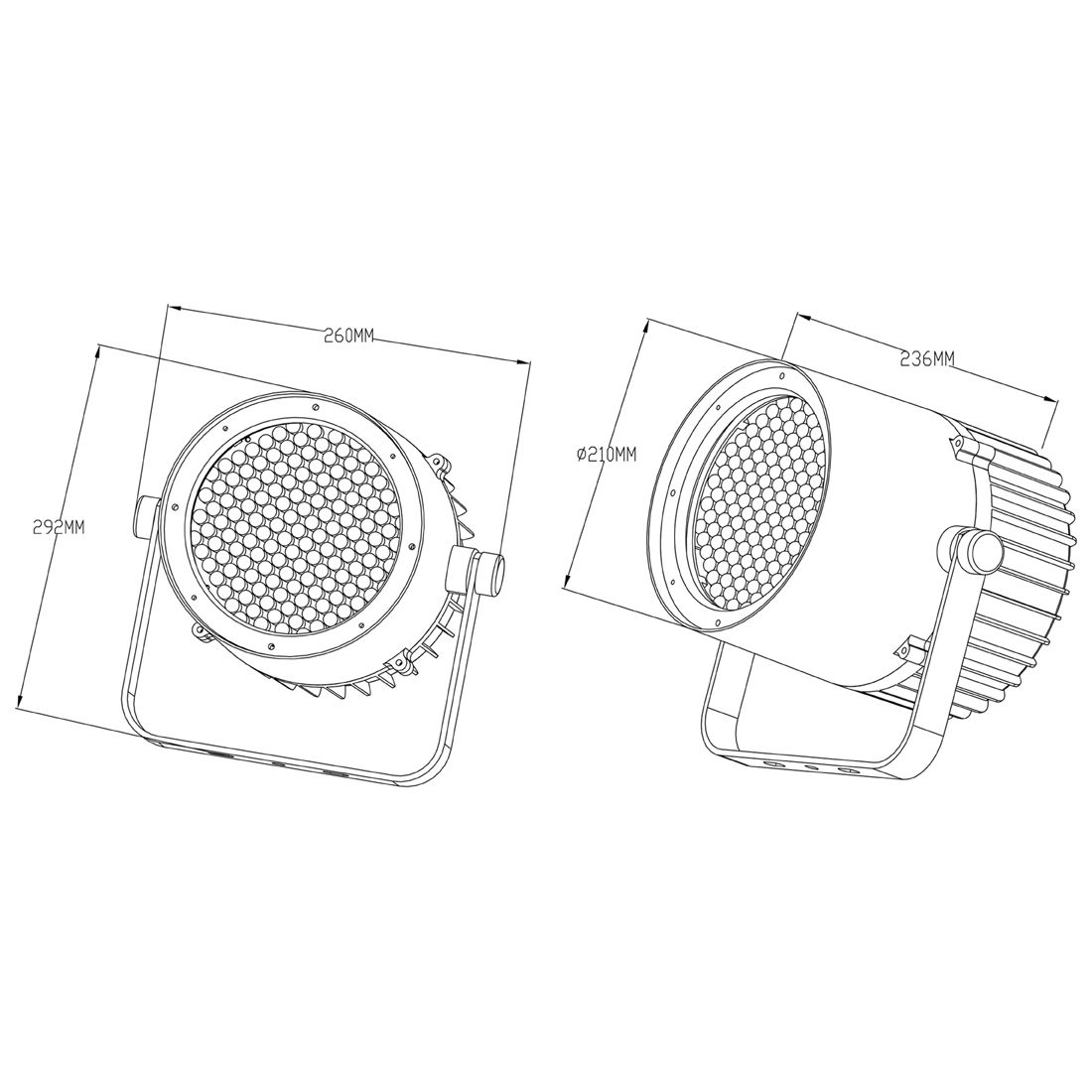

- Dimensions: 260mm x 210mm x 305mm
- Weight: 4,55 kg
The ELAR-unit is preset to DMX Adress "1".
- Starting Adress and DMX mode can be selected via the optional remote
- To controll the ELAR-unit with DMX the optional "indoor" to "outdoor" adapter is needed
- To connect several ELAR-units with DMX, special outdoor XLR Cables are needed
Specifications and documentation subject to change without notice
