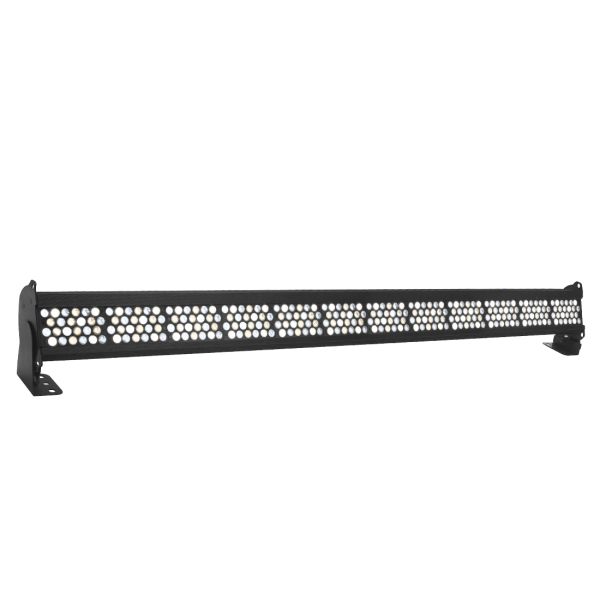

DW CHORUS 72

FEATURES

Variable Dimming Curve Modes
Variable White Color Temperature (2,700K - 6,700K)
Multiple Unit Power Linking
ArtNet™ / Klingnet™ / RDM Protocol Support
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM

SOURCE

288x 3W Cool White and Warm White Lumi™ LEDs
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

(288) Total LEDs - 144 CW + 144 WW
37,500 LUX (3,484 FC) @3.3’ (1m) (11° FULL ON)

EFFECTS

Variable White Color Temperature (2,700K - 6,700K)
Strobe and Chase Effects / Variable Dimming Curves

CONTROL / CONNECTIONS

Multiple DMX Channel Modes
4 Button Control Panel and LCD Menu Display
ArtNet™/ KlingNET™ / RDM Protocol Support

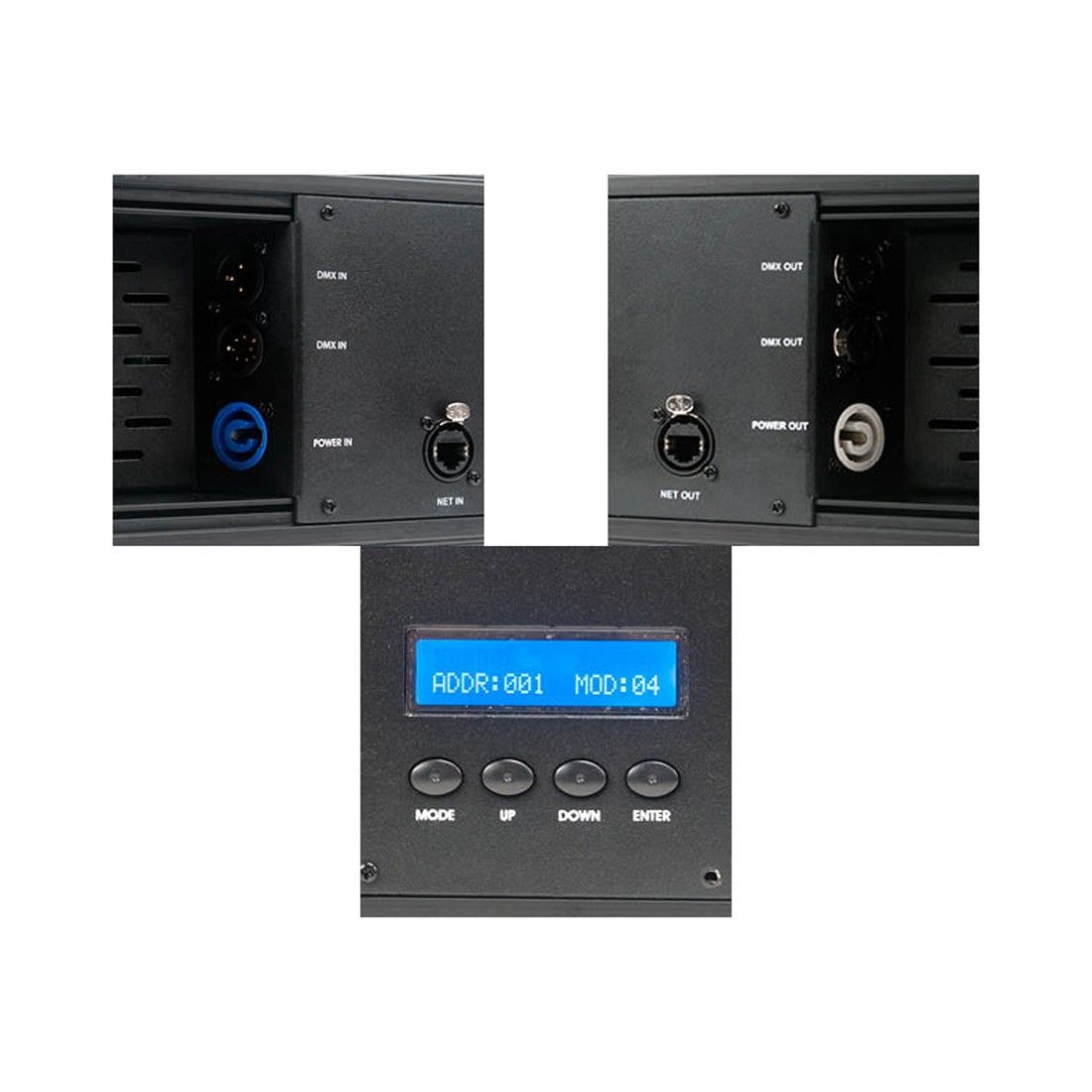

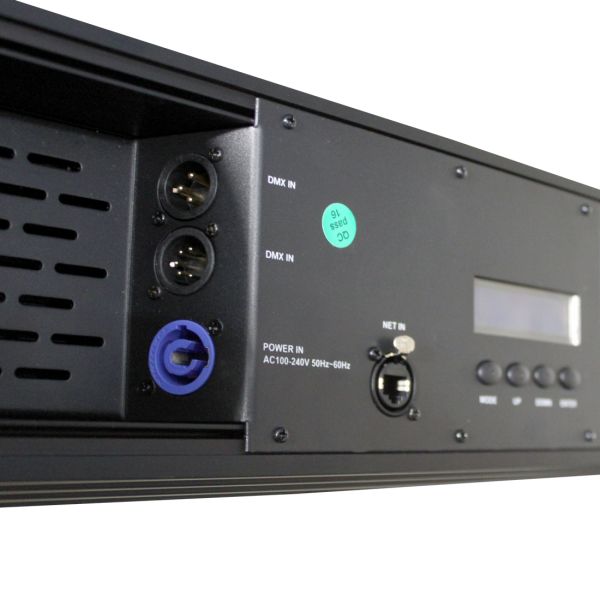

(2) locking RJ45 Ethernet Ports, 3pin and 5pin XLR DMX In/Out and power In/Out
Multiple Unit Power Linking
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 69.3” (1760mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 53.0 lbs. (24.0kg)

ELECTRICAL / THERMAL

AC 110-250V - 50/60Hz
510W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
