DW CHORUS 24

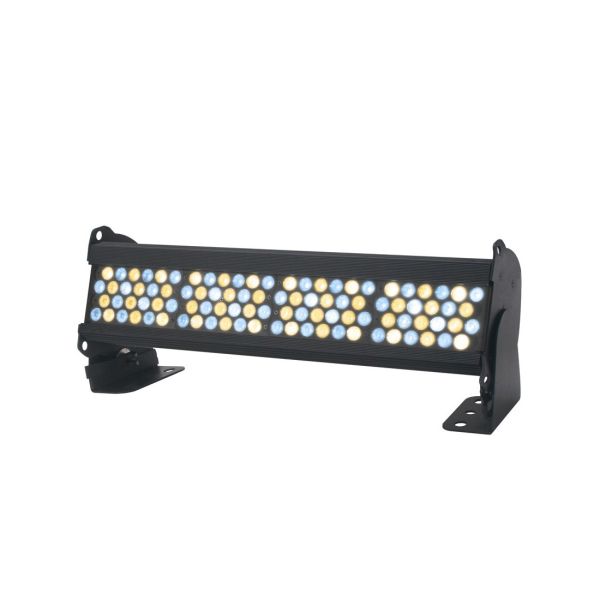

DW CHORUS 24 Picture

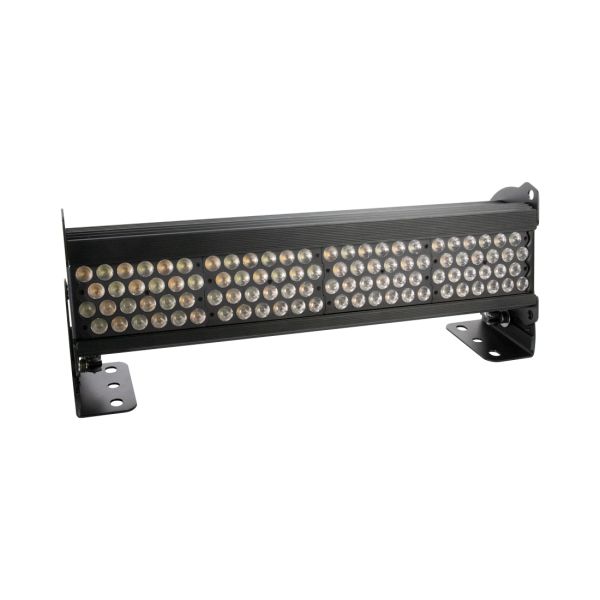

DW CHORUS 24 Picture 2

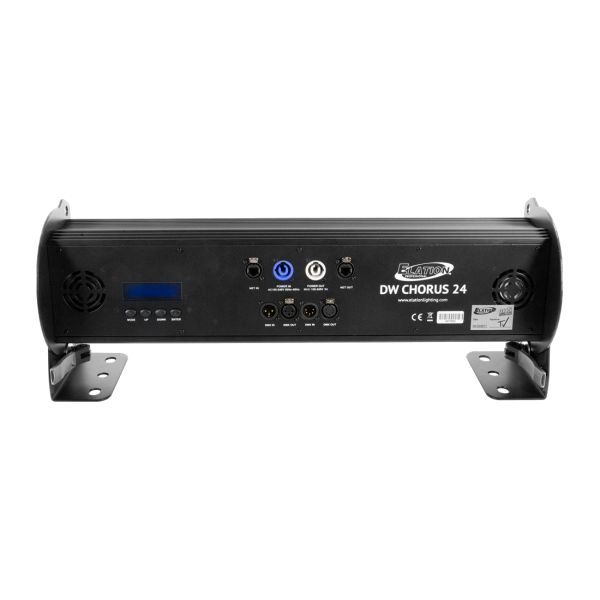

DW CHORUS 24 Picture 3

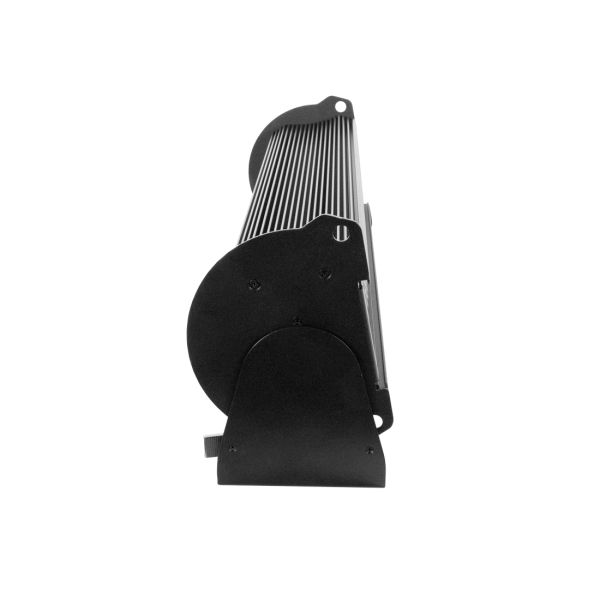

DW CHORUS 24 Picture 4
Code
1236200052
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/d/w/dw_chorus_24_website_pic.jpg)
![DW CHORUS 24 Picture](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/e/l/elation_DW_chorus_24_1.jpg)
![DW CHORUS 24 Picture 2](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236200052-DW-Chorus-24_1_1.jpg)
![DW CHORUS 24 Picture 3](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236200052-DW-Chorus-24_Back_1.jpg)
![DW CHORUS 24 Picture 4](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/1/2/1236200052-DW-Chorus-24_side_1.jpg)
FEATURES
Variable Dimming Curve ModesVariable White Color Temperature (2,700K - 6,700K)
Multiple Unit Power Linking
ArtNet™ / Klingnet™ / RDM Protocol Support
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
SOURCE
96x 3W Cool White and Warm White Lumi™ LEDs100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
(96) Total LEDs - 48 CW + 48 WW
20,570 LUX (1,911 FC) @3.3’ (1m) (9° FULL ON)
EFFECTS
Variable White Color Temperature (2,700K - 6,700K)Strobe and Chase Effects / Variable Dimming Curves
CONTROL / CONNECTIONS
Multiple DMX Channel Modes4 Button Control Panel and LCD Menu Display
ArtNet™/ KlingNET™ / RDM Protocol Support
(2) locking RJ45 Ethernet Ports, 3pin and 5pin XLR DMX In/Out and power In/Out
Multiple Unit Power Linking
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 23.8” (604mm)Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 23.0 lbs. (10.4kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz169W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
FIRMWARE UPDATES
Current firmware can be found here (login required)
Specifications and documentation subject to change without notice
