Design Wash 1200CArchive

Code 1237000014

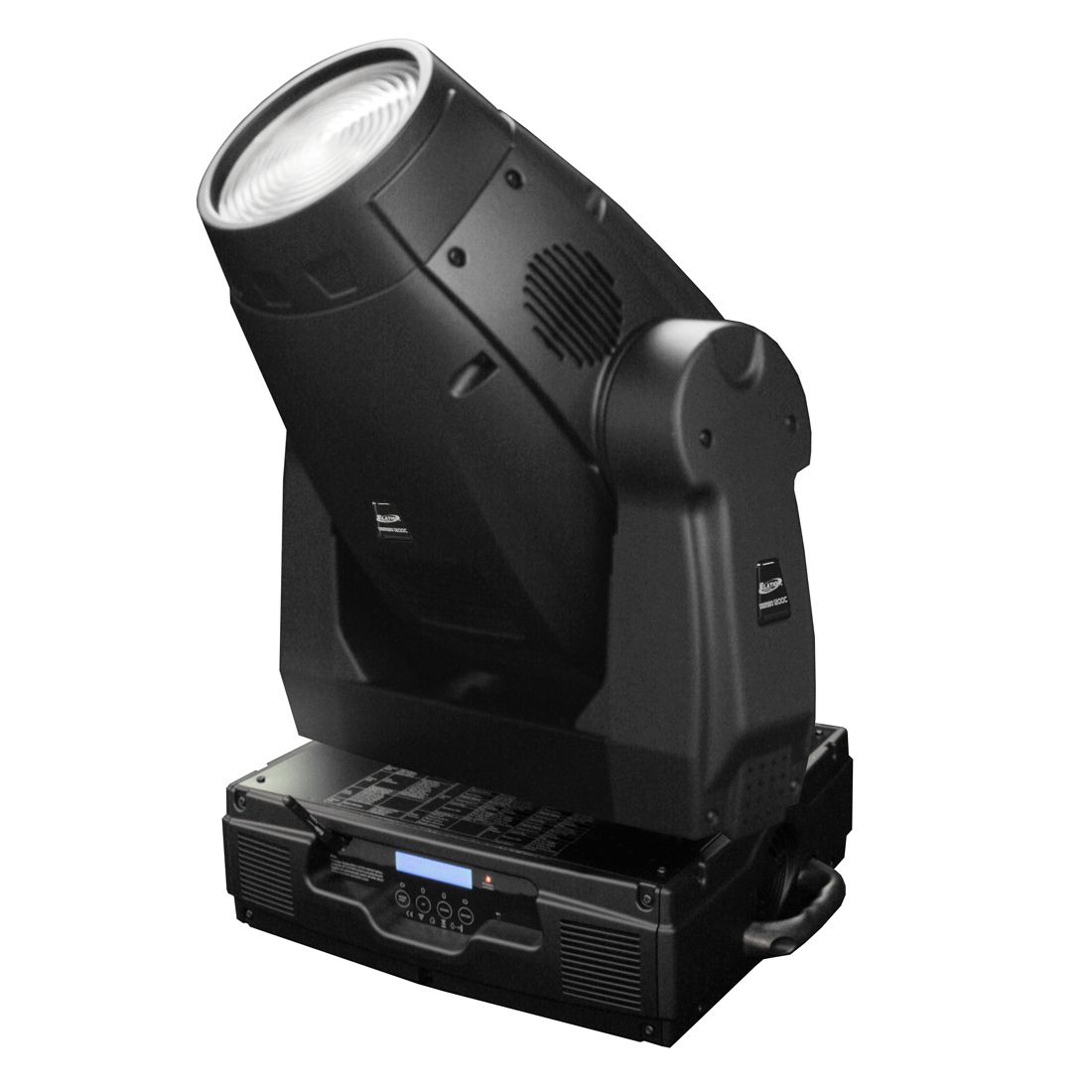

Design Wash 1200C


Technical Data

- CMY / 8 Colors
- Variable CTO + CTB + UV filter
- 11°-45° Zoom, Rotating Beamshaper
- 630° PAN (2s), 265° TILT (1,5s)
- EWDMX + RDMX + Fan & Lamp Control
- Modular Construction, Pan/Tilt Lock
- Ultrabright Discharge, Premium Lenses

Specifications:

- Phillips Fast Fit MSR 1200 SA/DE (1200W, 7500°K, 750h) included
- 86.400 Lux @ 2,5m @ 11°
- 11°-45° beam angle
- High output luminous-parabolic dichroic reflector
- All lenses are anti-reflection coated
- CMY gradual color mixing
- 1 color wheel with 8 colors, interchangeable (quickout):
- 6 colors + UV + CTB + White
- Variable CTO
- Variable speed color scrolling both directions (rainbow)
- New 360° beam shaper with continous rotation
- Dual flag mechanical dimming system
- Variable speed strobe effect, 1-13 flashes per second
- Preset variable/random strobe, dimming pulse effects
- Motor driven zoom 11°-45°
- Automatic Pan / Tilt position correction
- Pan / Tilt Lock
- Maximum Pan-movement 630° in 2.0 secs or 540°/ 16 bit
- Maximum Tilt-movement 265° in 1.5 secs / 16 bit
- 3 Phase motors for fast, accurate Pan / Tilt positioning
- Vector Mode with blackout MIB function
- Battery powered blue LCD Matrix Display
- EWDMX receiver for wireless DMX built-in
- 18 DMX channels USITT DMX-512 (standard mode)
- other DMX modes: full 16-bit / basic / custom 1/2/3
- Customizable DMX channel assignment
- DMX, stand-alone, Primary/Secondary, sound activated mode
- DMX recorder and edit function integrated
- Software update via DMX, using optional E-Loader
- 3-pin and 5-Pin XLR serial input/output
- Fan cooled - fans regulated by automatic, silent or DMX
- Constant temperature readout / management function
- DB rating @ 1M = 55,5db
- 2x 1/4 turn fastening Omega Clamps
- Electronic ballast and power supply
- Power consumption: 1500W
- Voltage: AC 100V ~ 240V 50/60Hz
- Dimensions (LxWxH): 470x462x517mm (Head up)
- Weight: 33,6 kg

Specifications and documentation subject to change without notice
