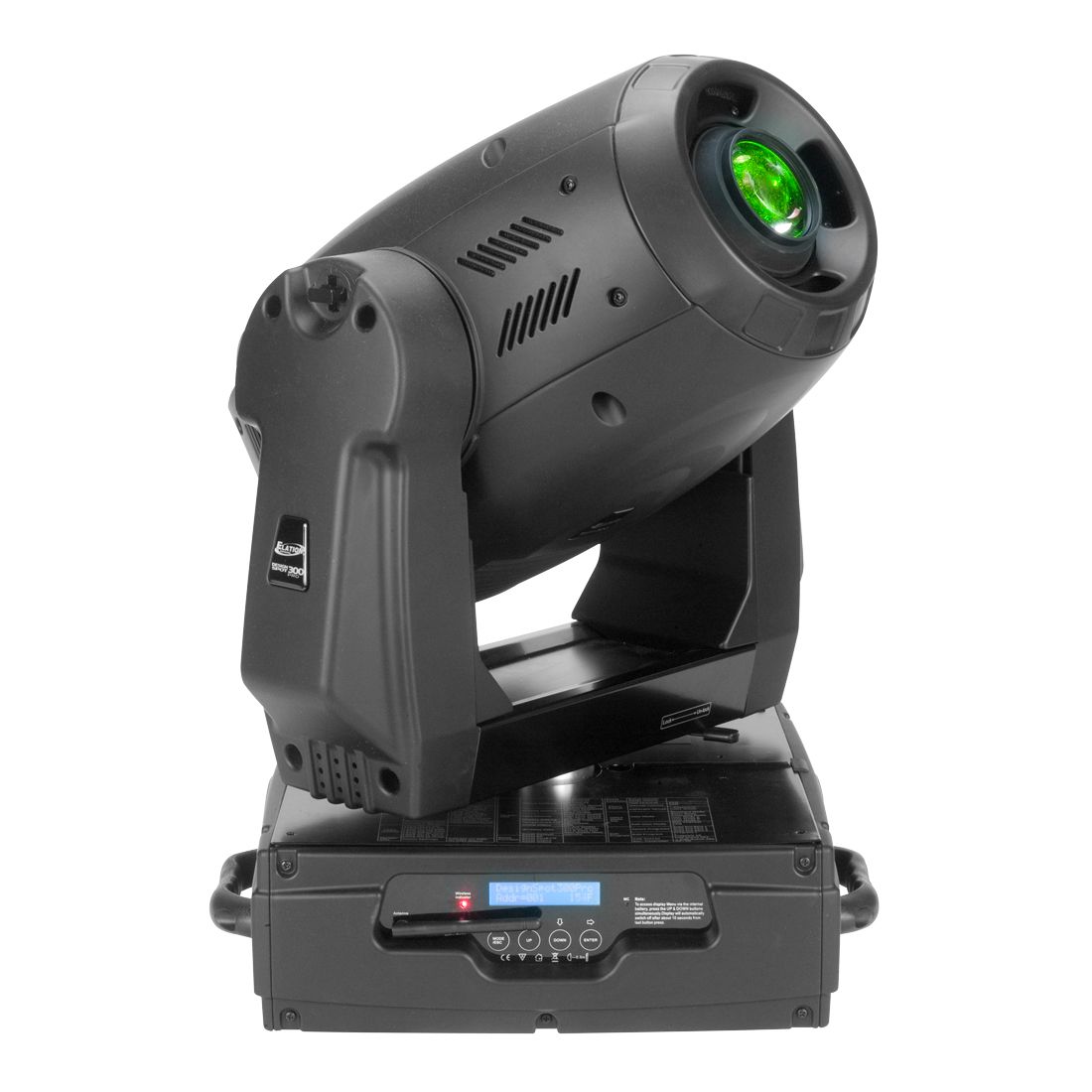

300W CMY Spot w/Zoom & EWDMX Moving Head

COLORS
- CMY color mixing
- 8 interchangeable dichroic filters (including CTO, UV & CTB) plus white
- Continuous, variable speed, color scrolling in both directions (rainbow effect)
- More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

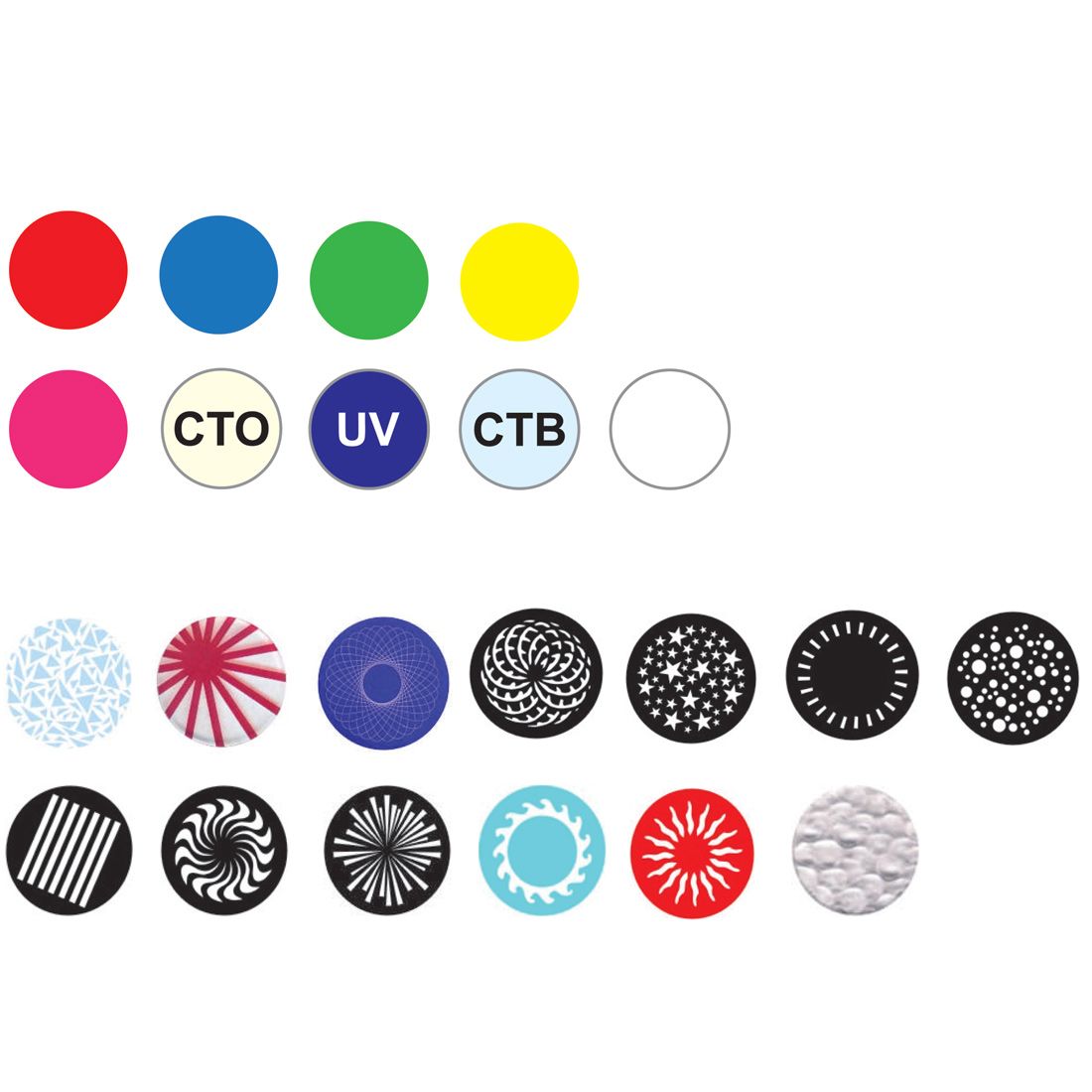

GOBOS
- 2 Gobo Wheels, 13 Total Gobos, 10 Metal, 3 Glass
- 6 Interchangeable, Indexable, Rotating Gobos plus open
- 7 Interchangeable, Static Gobos plus open
- Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
- Glass Gobo Size: 26.9mm outside diameter, 23mm image diameter
- Gobo Overlay (Gobo Morphing)

SHUTTER/DIMMER
- Variable speed strobe effect (1-13) flashes per second
- Pre-set variable/random strobe and dimming pulse effect
- Dual Flag mechanical dimming system
- Flicker free

IRIS
- Beam narrow to wide (5% - 100%)
- Variable speed iris macros
- Small to large and large to small

FROST
- Hard edge to soft edge frost

PRISM
- Effect wheel with 3-facet & 3D Glass Prism rotating/Indexing Prism
- Both directions at variable speeds
- Macro-function for rotating gobos/rotating prisim combinations

ZOOM
- Motor driven Variable Zoom 16 to 25 Degrees

FOCUS
- Motor driven focus from near to far

Control Features
- 22 DMX Channels
- EWDMX Wireless DMX receiver built in
- RDMX - Remote DMX Addressing
- USITT DMX-512 (16-bit resolution)

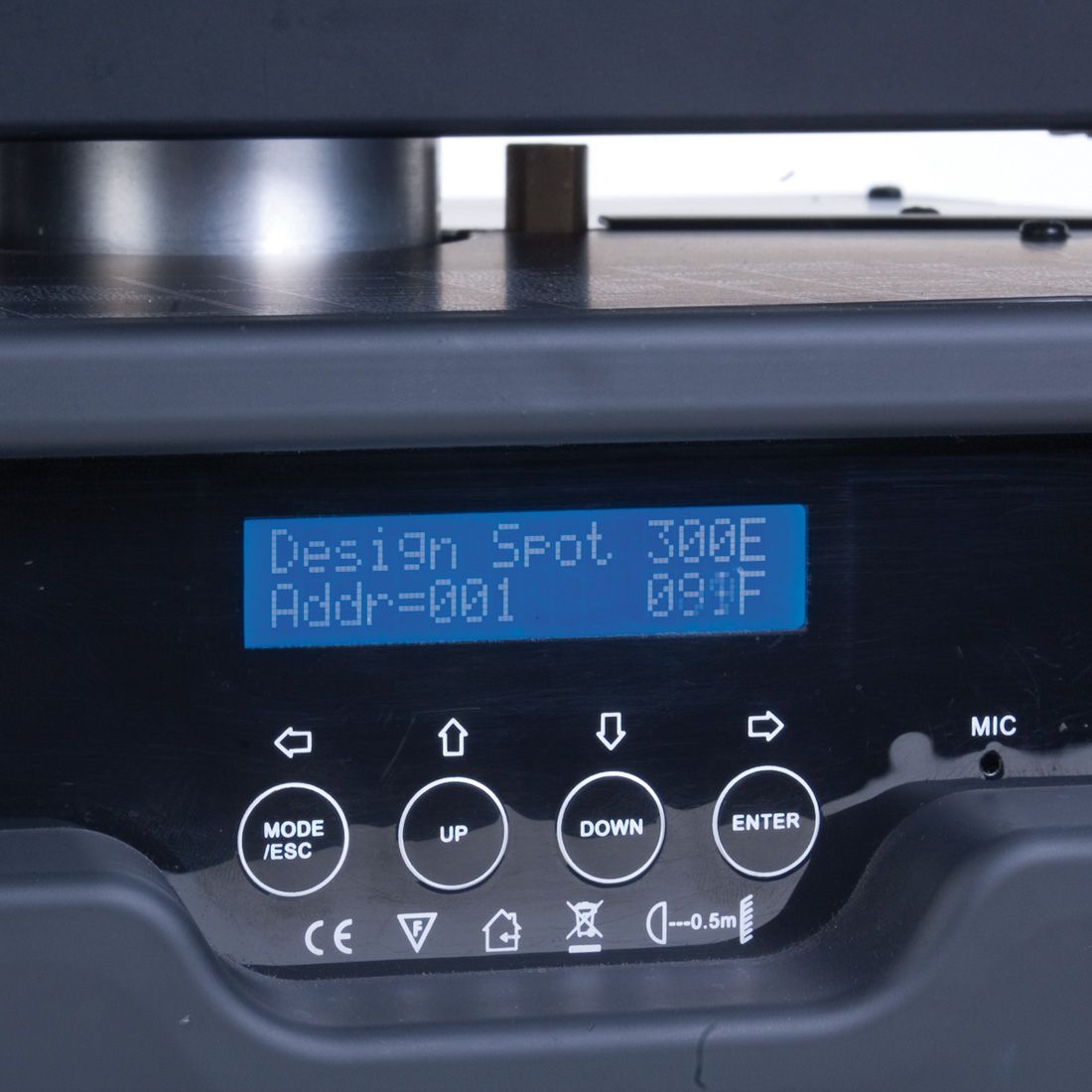

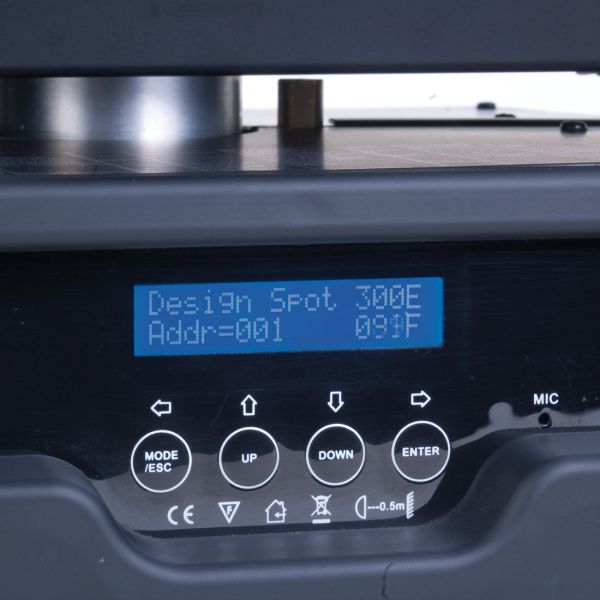

- Full Text LCD Display
- On board menu settings
- 3-pin & 5-pin XLR serial input/output

OPTICAL SYSTEM
- High output luminous-parabolic dichroic reflector
- Variable Beam Angle 16 – 41 degrees
- 5,300 Lux @ 5M

LAMP
- Lamp Source: MSR 300
- Type: Discharge
- Wattage: 300W
- Base: Fast Fit Gold
- Rated Average Life: 1,000
- Color Temp: 8,500k

PAN/TILT
- Automatic Pan /Tilt position correction
- Pan/Tilt Lock
- Maximum PAN-movement 630° in 2.0 secs (default) or 540° (user selectable) / 16 bit
- Maximum TILT-movement 265° in 1.5 secs / 16 bit
- Vector Mode with blackout

POWER SUPPLY
- Electronic Power Supply - Multi-voltage: AC 98V ~ 240V 50/60Hz
- 4.1A or 490W

DIMENSIONS & WEIGHT
- (LxWxH): 402 x 449 x 501 mm - Head Level
- 26.5 kg
- DB Rating 52db@ 3’
