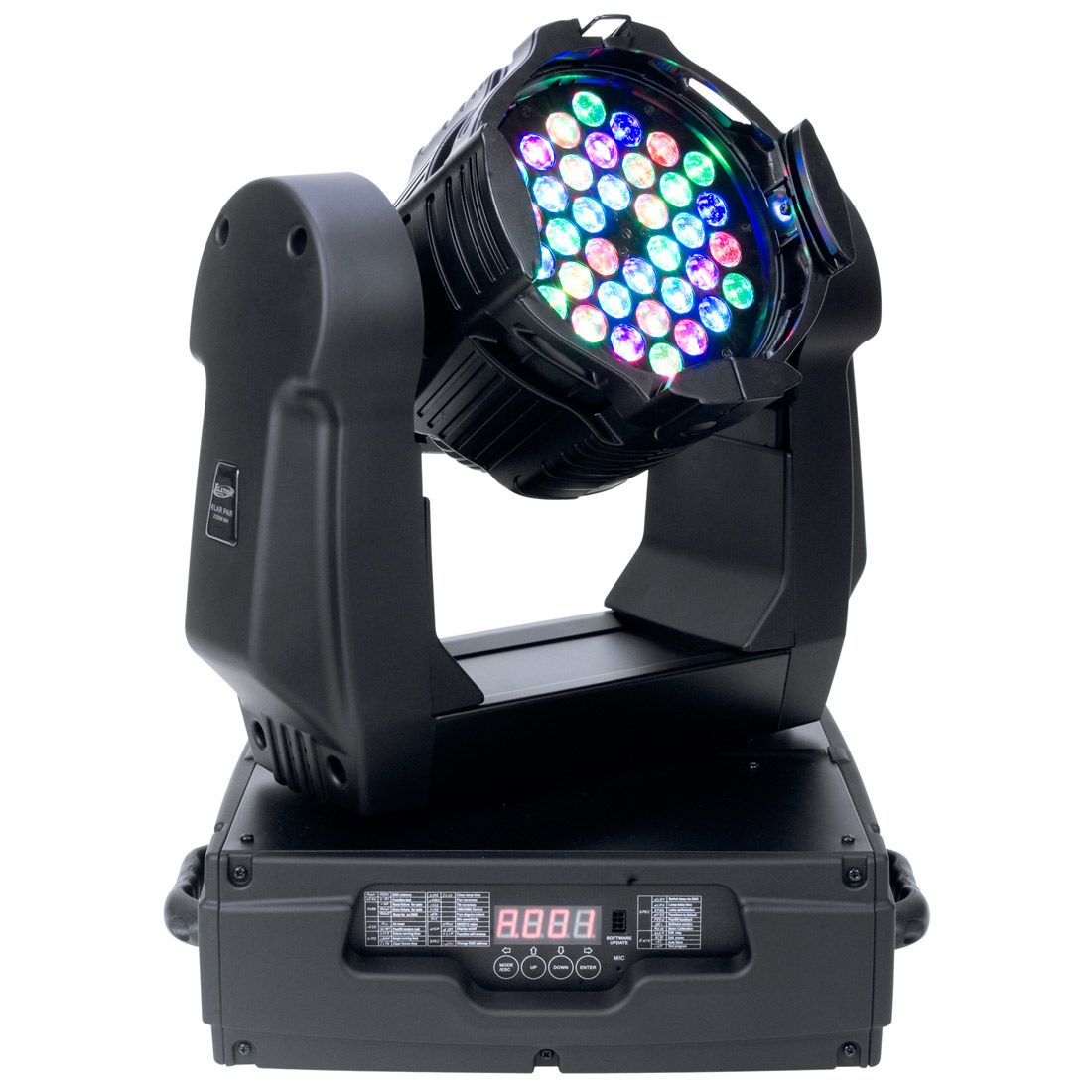

Design LED PAR ZOOM MH

 36 x 3W RGB LEDs

 - 108W Total Light Output (2440 LUX @2,5m)

 - 10°-60° Motorized Zoom

 - RDMX - Remote DMX Adressing

 - 630° PAN, 265° TILT

 - Affordable Price

 - Very Fast Movement

Technical Data

- 36 x 3W LED’s

 - 50.000 hour rated LED source

 - 2440 Lux @ 2,5m @ Full on

 - 10-60° beam angle

 - Full RGB color mixing feat. perfect color tones

 - Built in Color, Strobe, Dimming macros

 - Electronic, flicker-free dimming

 - Variable speed strobe effect, 1-25 flashes per second

 - Motor driven zoom 10°-60°

 - Automatic Pan / Tilt position correction

 - Maximum Pan-movement 630° or 540°/ 16 bit

 - Maximum Tilt-movement 265° / 16 bit

 - 3 Phase motors for fast, accurate Pan / Tilt positioning

 - 3-digit LED Display

 - 13 DMX channels USITT DMX-512 (16-bit resolution)

 - other DMX modes available

 - DMX, stand-alone, Primary/Secondary, sound activated mode

 - Software update via DMX, using optional E-Loader

 - 3-pin and 5-Pin XLR serial input/output

 - Fan cooled - fans regulated by automatic

 - 2x 1/4 turn fastening Omega Clamps

 - Electronic switching power supply

 - Power consumption: 180W

 - Voltage: AC 100V ~ 240V 50/60Hz

 - Dimensions (LxWxH): 605x460x520mm (Head up)

 - Weight: 19 kg

Specifications and documentation subject to change without notice
