Design LED Panel 72 IP MKIIArchive

Code 1236300002

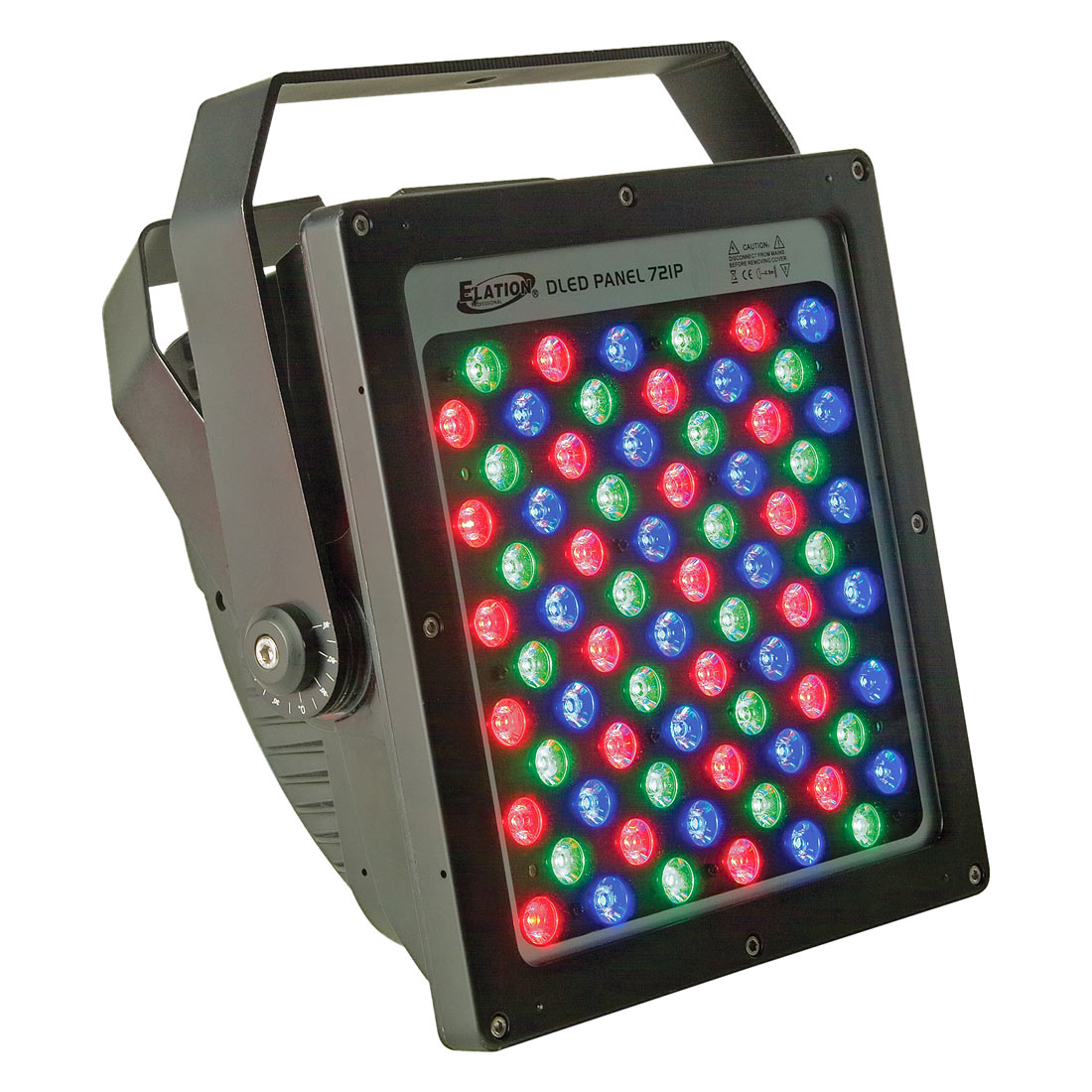

Design LED Panel 72 IP MKII

Technical Data

- 72x 3W LEDs ( = 216 W Power)
- Single LED row control
- 53 degree beam angle
- IP 65 outdoor rated
- Specialized for wall washing
- Adjustable dimmer curves
- Scene & chaseme memories

Specifications

- High Output, Outdoor Color L.E.D. Wash Panel
- Infinite Color Possibilities (RGB Color Mixing)
- 72 x 3W K2 LED`s (24 Red, 24 Green, 24 Blue)
- LED Life: 100,000 Hours
- IP 65 rated
- Digital LED Display
- Stand Alone & DMX Operation Modes
- Built-in DMX 512
- DMX Operation Modes: 3CH/4CH/6CH/15CH
- Built-in Chase programs
- Internal Scene & Chase Memory with Speed & Fade settings

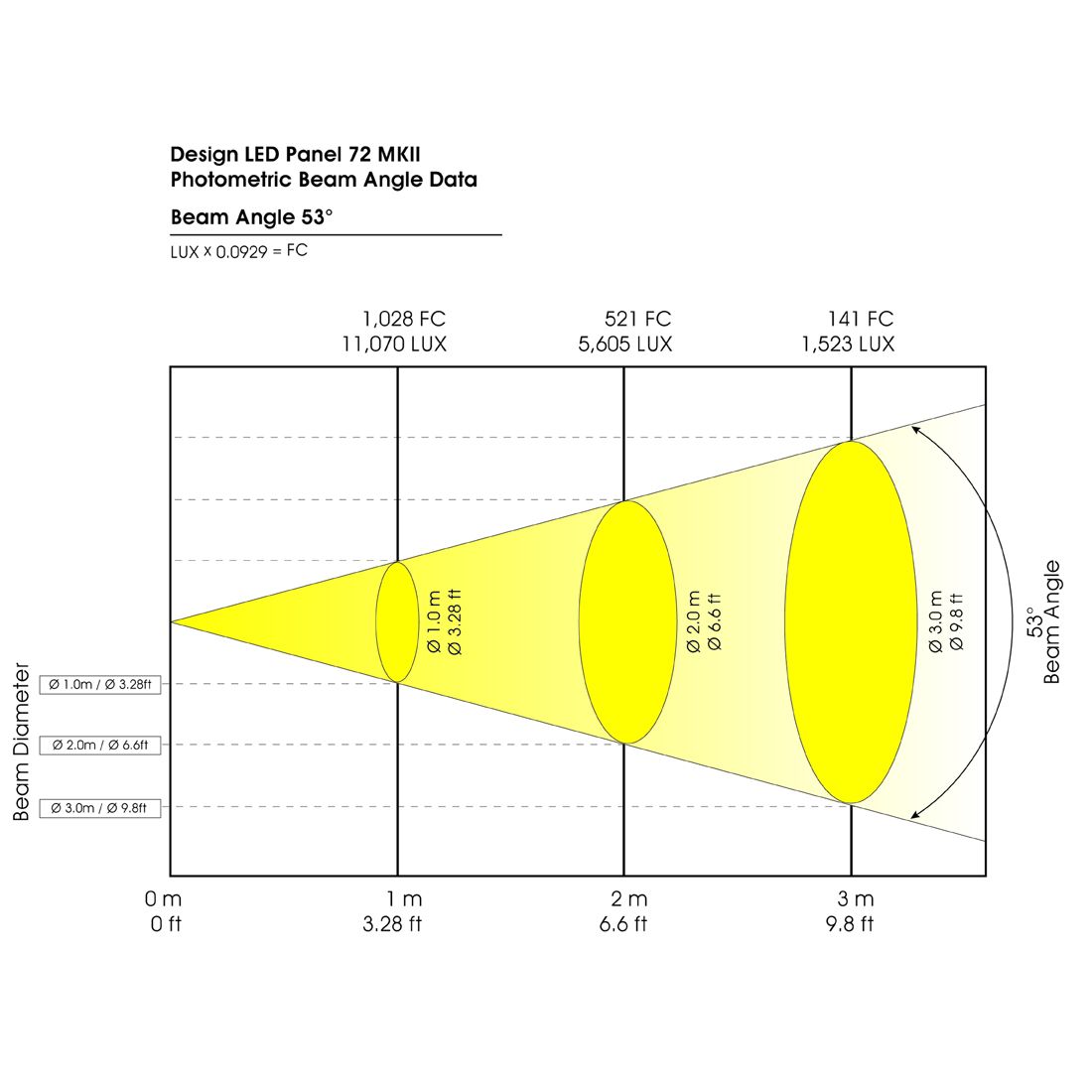

- Beam angle: 53 degree
- Selectable Dim Modes: Standard & Linear (0-100%)
- Built-in Power Supply
- Power Requirements: 90V-240V, 50/60Hz, 300W

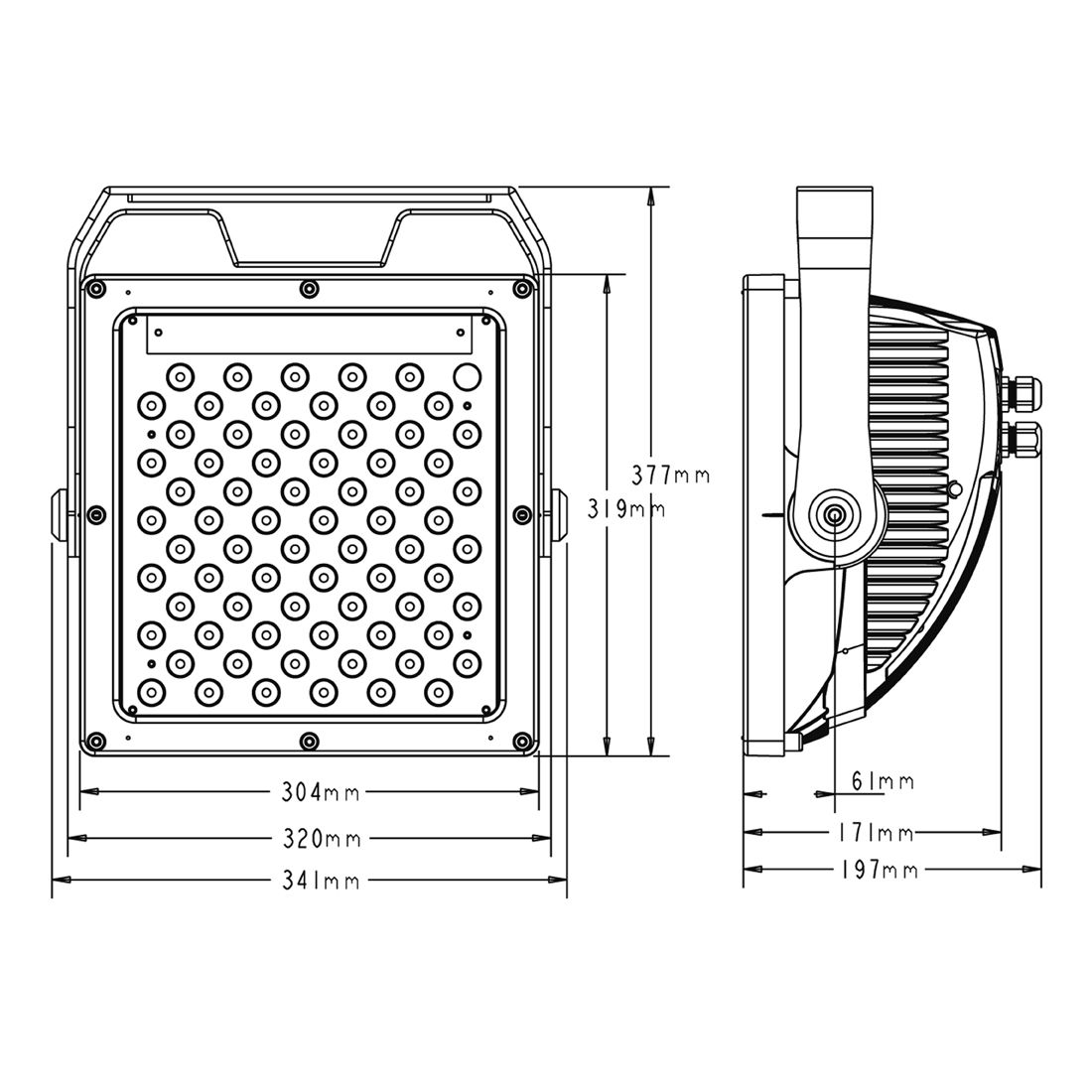

- Dimensions (LxWxH): 341x372x200mm
- Unit weight: 12kg

Specifications and documentation subject to change without notice
