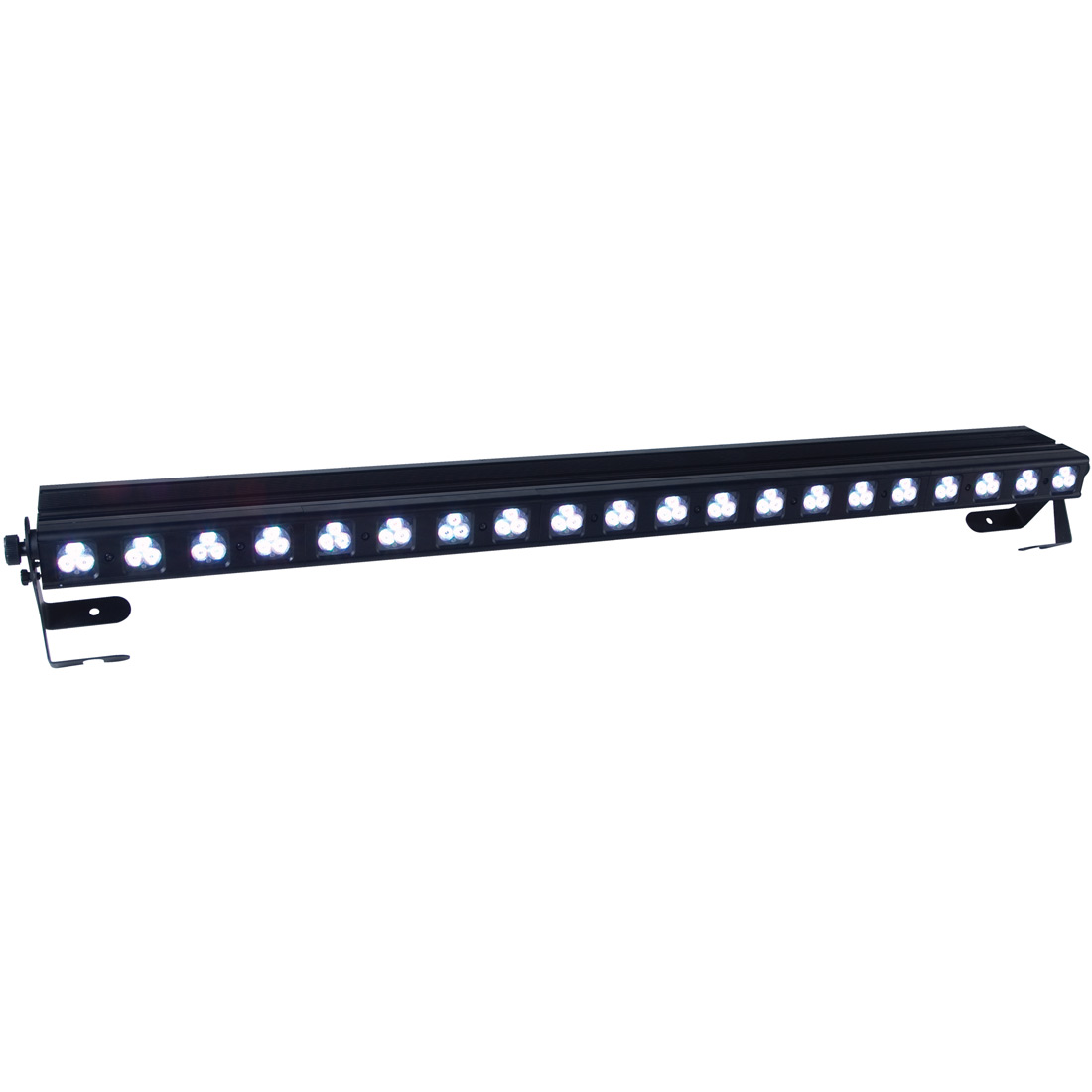

Design LED 60 TRI Strip

- 60x 3W TRI-LEDs (180W Power)

- 62° beam angle

- Single pixel field control

- Power and DMX loop through

- Built-in programs and Macros

- 4 button LED Menu Display control

- Combibrackets: floorstand or mount



Technical Data

- 60x 3W TRI-LEDs

- Seamless color changing – warm to cool white (3200K – 5600K)

- Long Life LED (rated at 100,000 Hours)

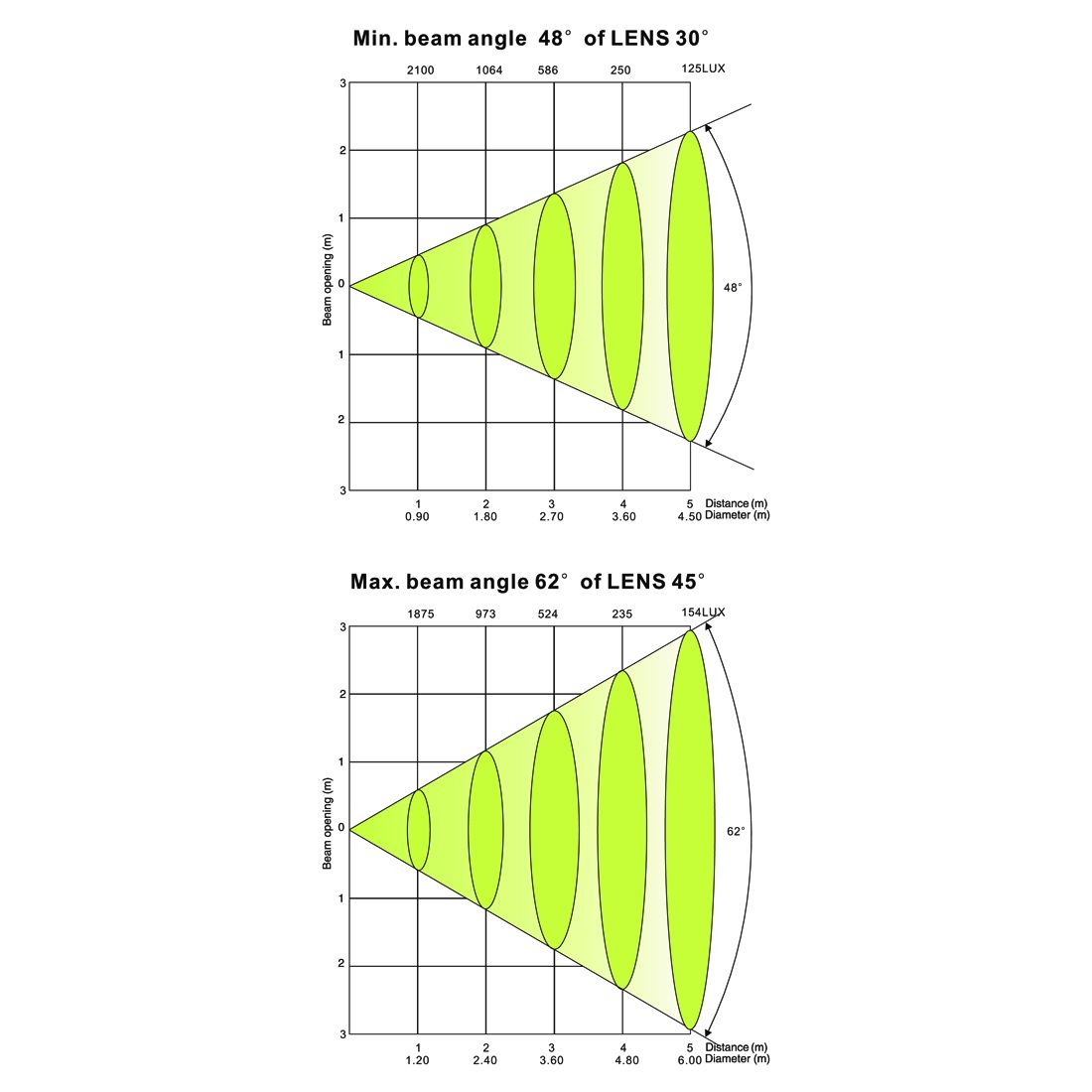

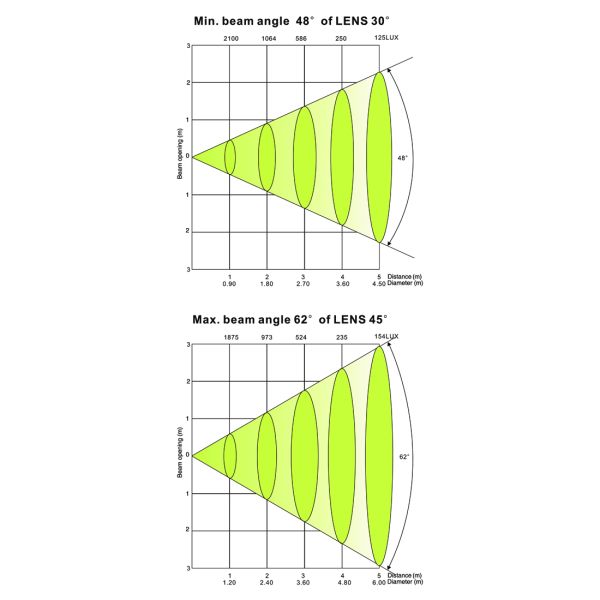

- 524 Lux @ 2,5m @62°

- 62º Beam Angle

- Control each pixel field independently

- Compact design: fits into standard truss

- Flicker free operation for television and film

- 4 button LED Menu Display control

- USITT DMX 512

- 3,4,6,15,60 or 63 Channel operation modes

- Sound Active, Macro, Auto, & DMX

- 8 built-in programs with Speed control

- Sound controlled via built-in microphone

- Holds last state when power off

- 0-100% Dimming

- Strobe effect (1-25 flashes per second)

- 3 & 5 pin XLR in/out

- Silent fan cooling

- Mounting bracket and safety I-hook installed

- On/Off Power switch

- Linkable power supply up to 6 units (In/Out power connectors)

- Electronic Switching Power Supply

- Power Consumption: 233 watts

- 98-260V AC, 50/60Hz (Multi-voltage)

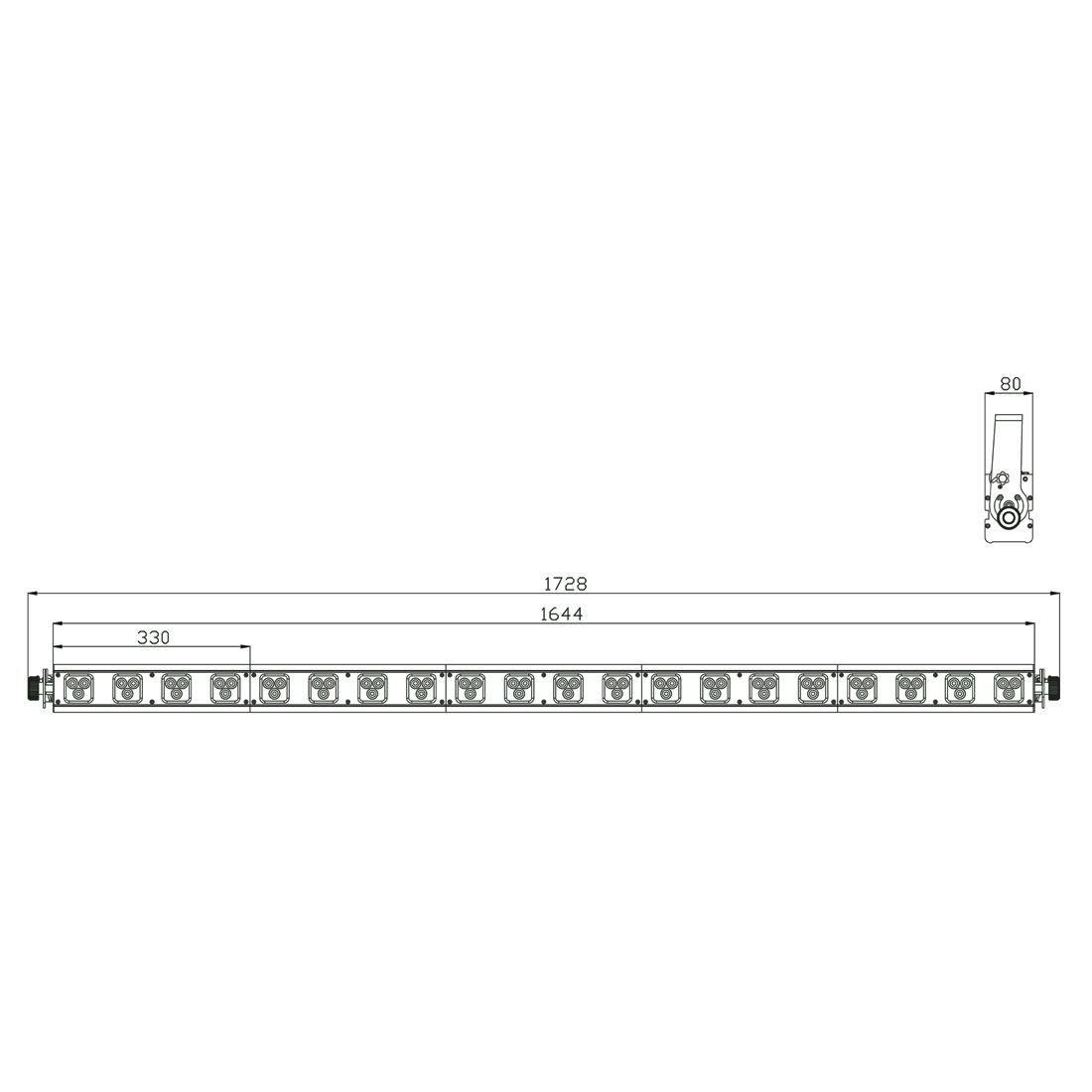

- Dimensions (LxWxH): 1728x230x80 mm

- Weight: 13.6 kg



Specifications and documentation subject to change without notice
