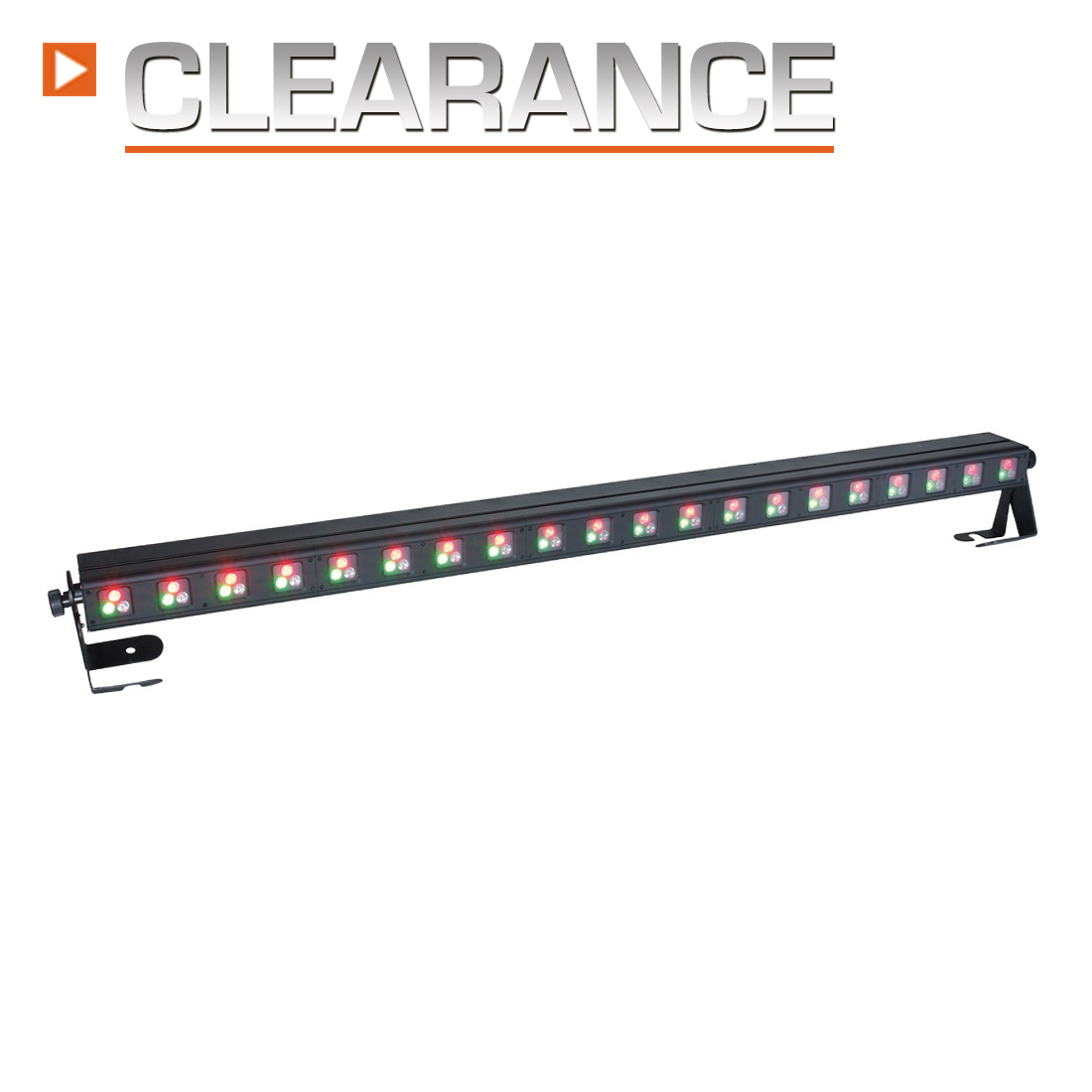

Design LED 60 Strip RGB

- 60x 1W RGB Luxeon LEDs

 - 48° beam angle / 80° Field Angle

 - Single pixel field control

 - Power and DMX loop through

 - Built-in programs and Macros

 - 4 button LED Menu Display control

 - Combibrackets: floorstand or mount



Technical Data

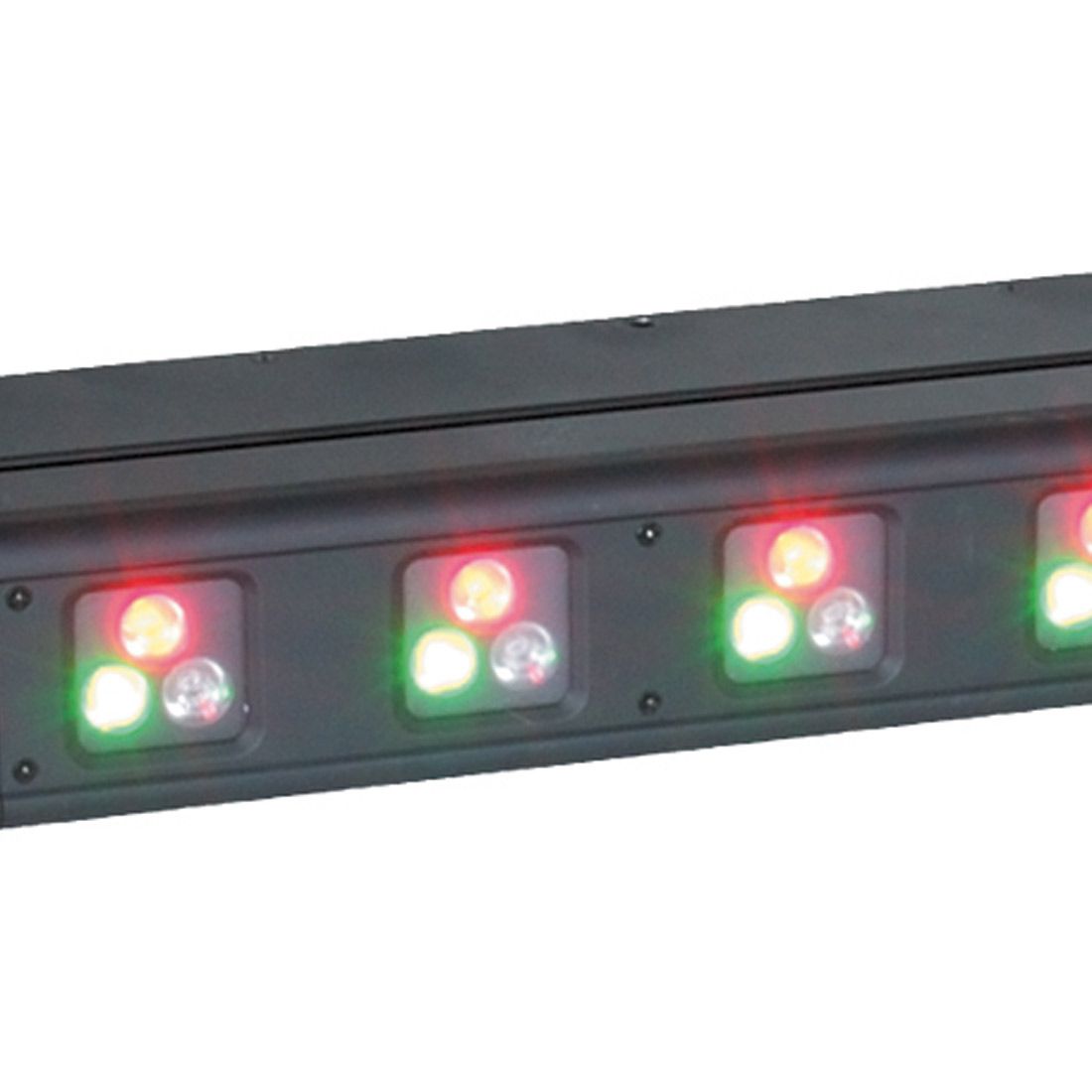

 - 60 x 1W Luxeon LED’s - (each 20x R,G,B)

 - Seamless color changing

 - Long Life LED (rated at 100,000 Hours)

 - 48º Beam Angle / 80° Field Angle

 - Control each pixel field independently

 - Compact design: fits into standard truss

 - Flicker free operation for television and film

 - 4 button LED Menu Display control

 - USITT DMX 512

 - 3,4,6,15,60 or 63 Channel operation modes

 - Sound Active, Macro, Auto, & DMX

 - 8 built-in programs with Speed control

 - Sound controlled via built-in microphone

 - Holds last state when power off

 - 0-100% Dimming

 - Strobe effect (1-25 flashes per second)

 - 3 & 5 pin XLR in/out

 - Passive cooling

 - Mounting bracket and safety I-hook installed

 - On/Off Power switch

 - Linkable power supply up to 8 units (In/Out power connectors)

 - Electronic Switching Power Supply

 - Power Consumption: 147 watts

 - 98-260V AC, 50/60Hz (Multi-voltage)

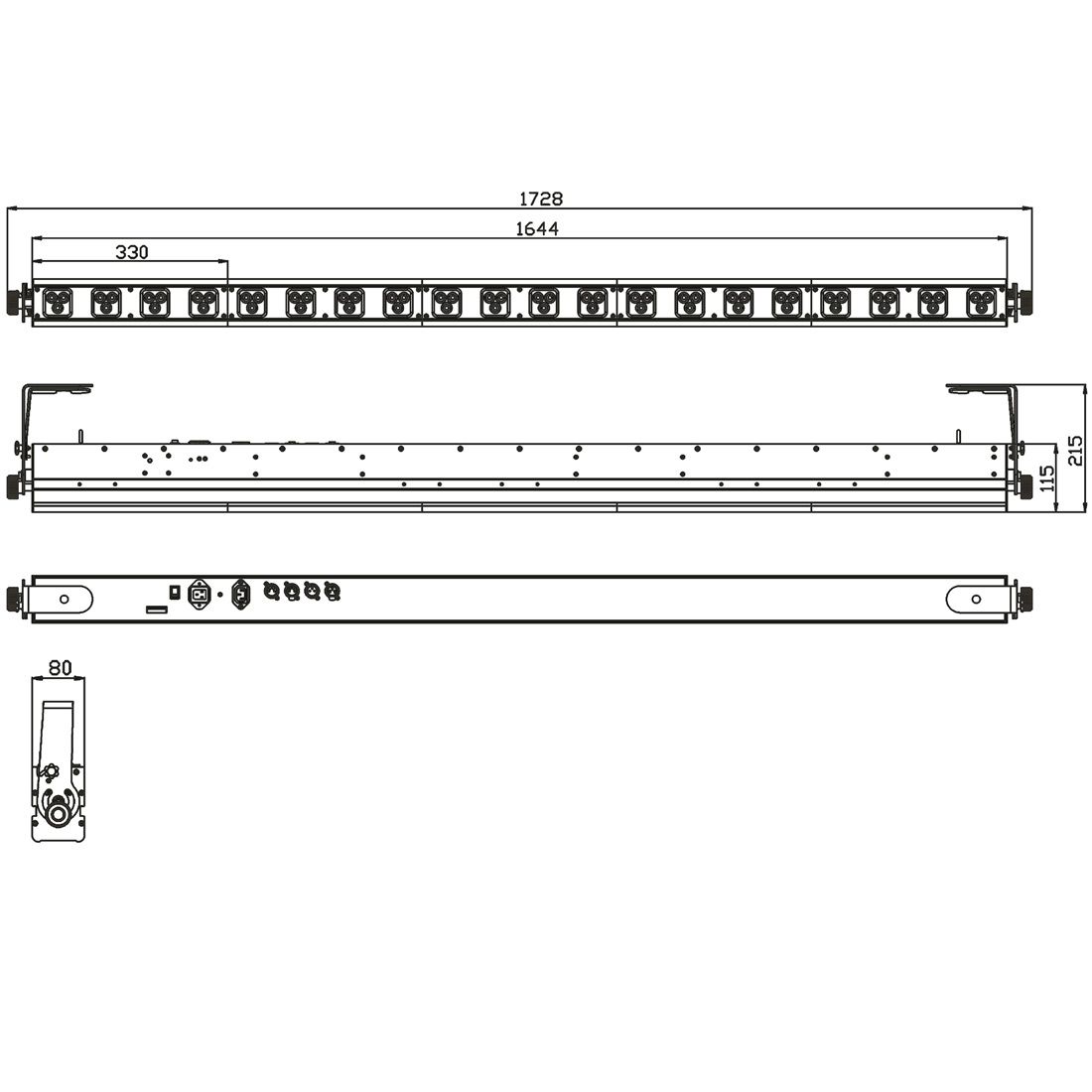

 - Dimensions (LxWxH): 1728x215x80 mm

 - Weight: 10.5 kg

Specifications and documentation subject to change without notice
