Code
1237000013
- 6,7degr. very narrow beam
- CMY + 8 colors + 6/7 gobos
- Variable frost, prism
- 630degr. PAN (2s), 265degr. TILT (1,5s)
- EWDMX + RDMX + Fan & Lamp Control
- Modular construction
- Pan/Tilt-lock
Specifications:

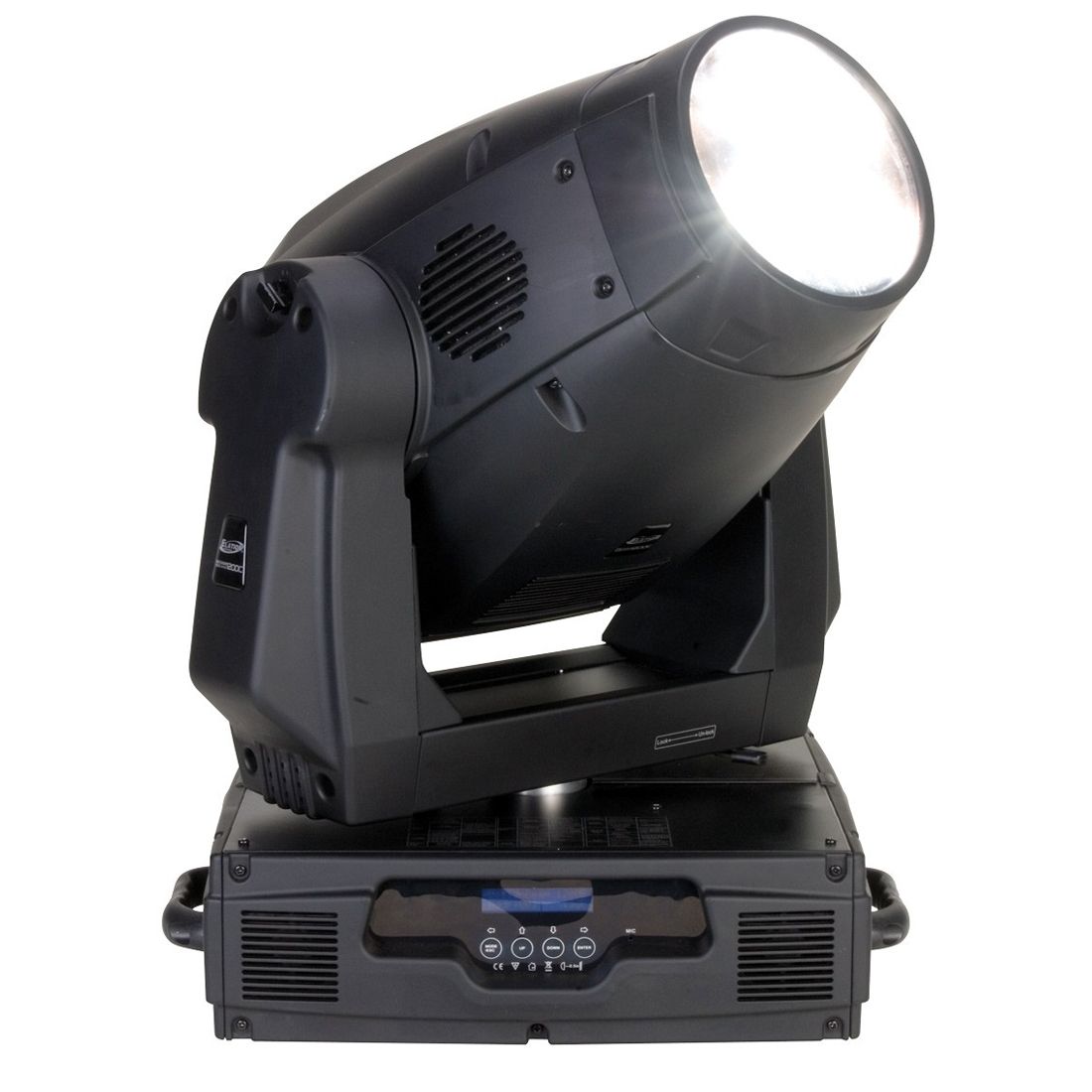

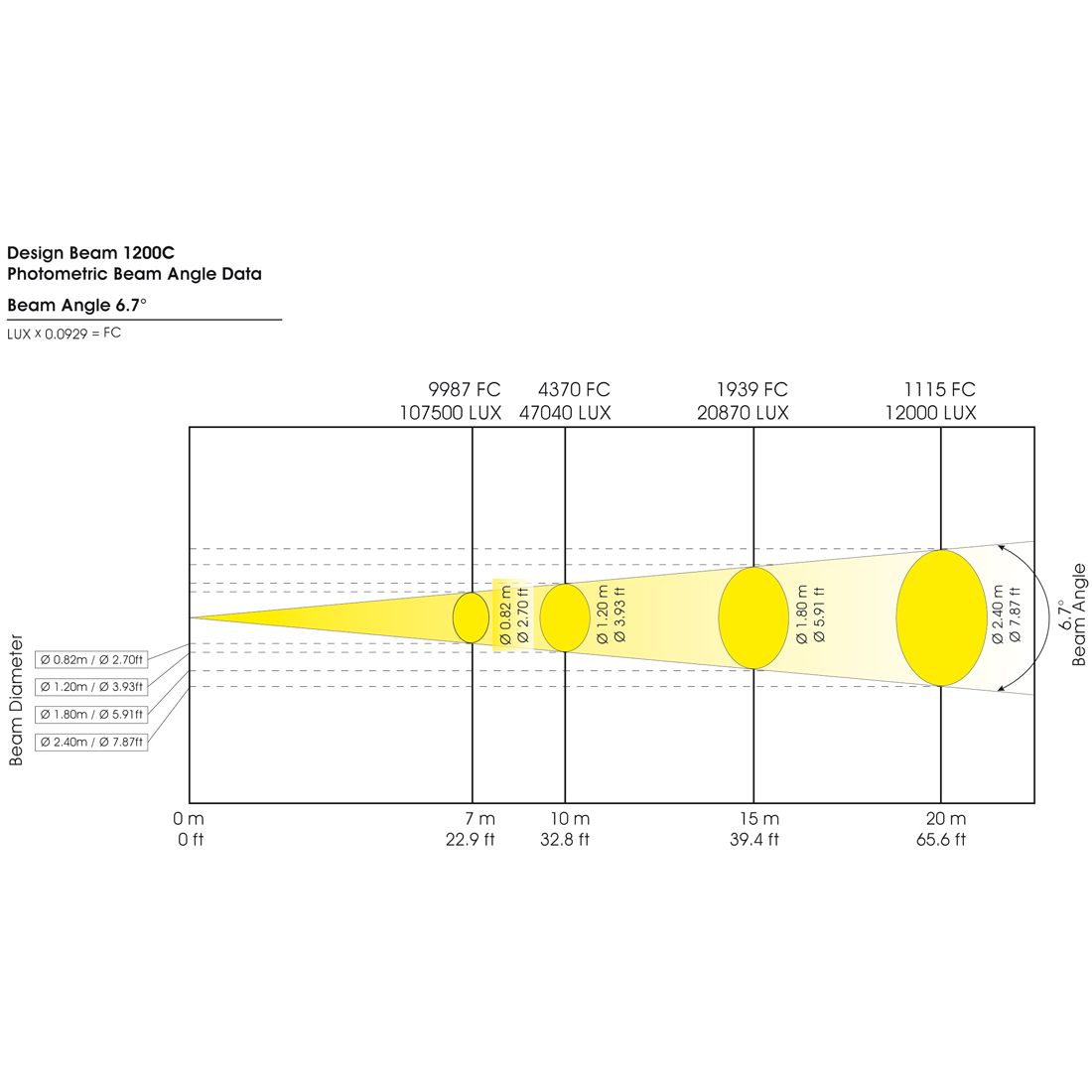

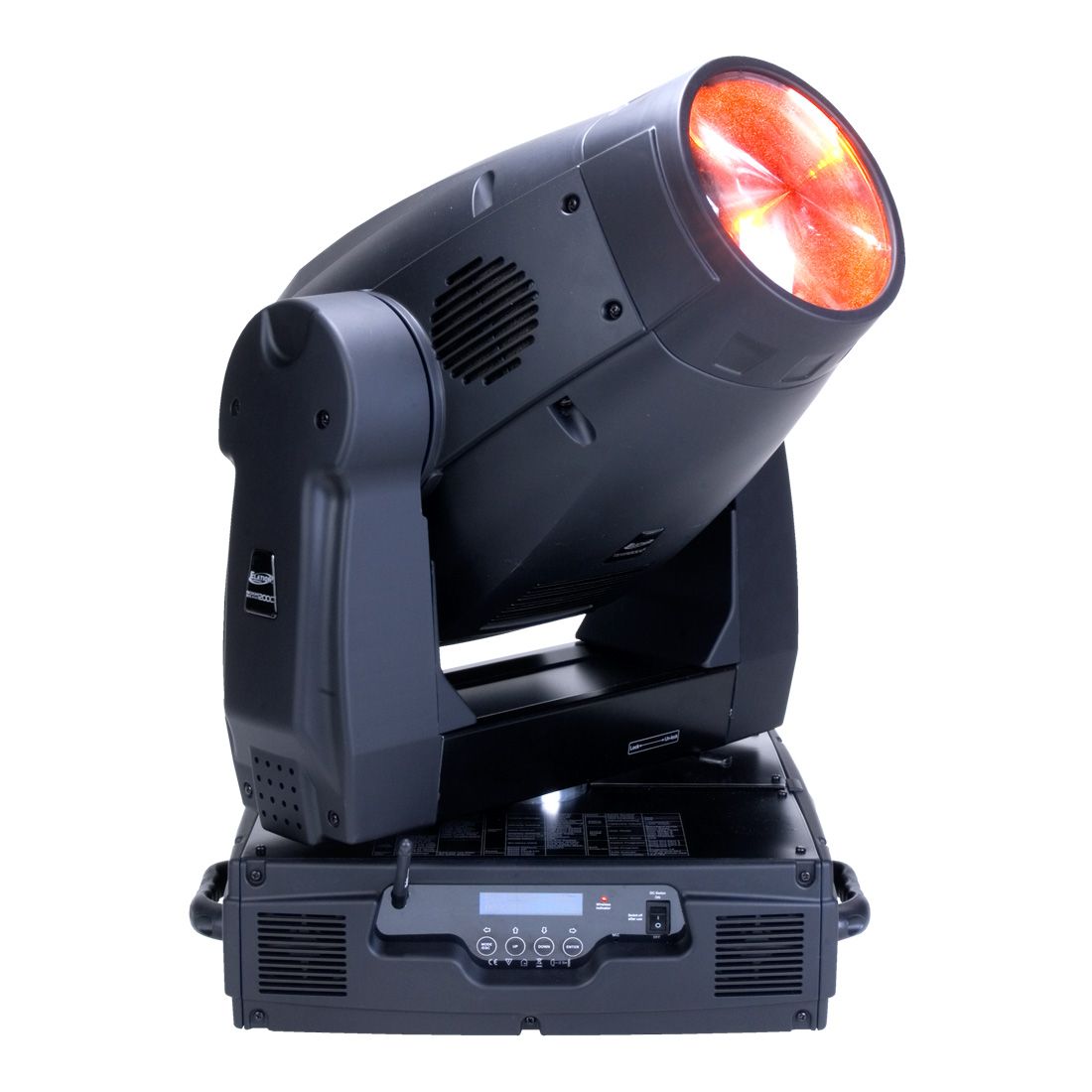

- 1200W Hybrid VNSP-Beam/ Wash Moving Head- Very tight 6.7degr. beam angle with extreme output, great ACL effect!
- Extreme Light output - over 850,000 LUX@2,5m
- CMY Color Mixing + Variable CTO
- EWDMX Wireless DMX receiver built in
- 16 Bit Movement and Color fading
- 3 Phase Motors for fast movements
- 8 Static / Replaceable Dichroic Colors incl. CTB and UV

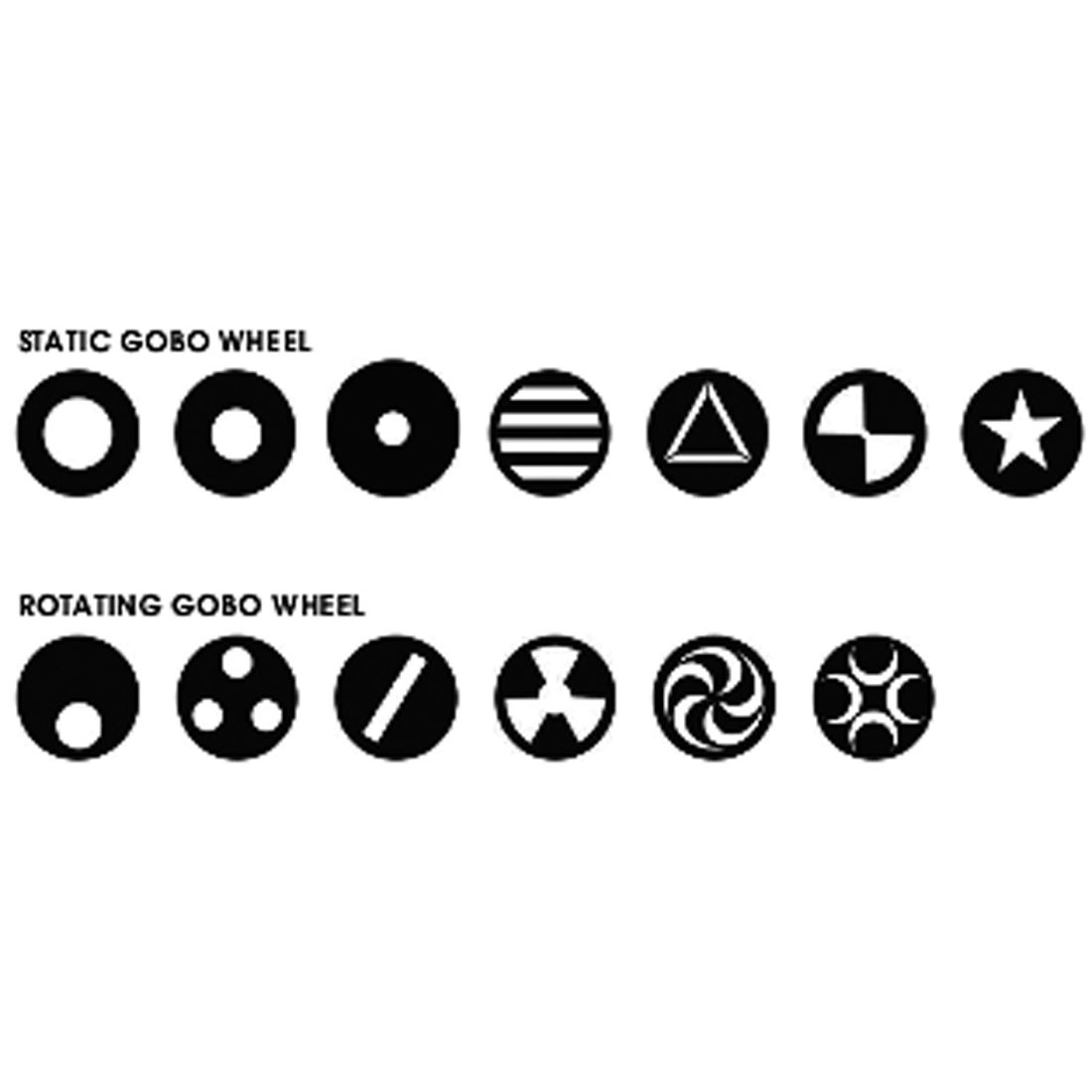

- 6 Rotating / Indexing Gobos (replaceable)
- 7 Static replaceable Gobos
- Rotating / Indexing Prism 3-Facet
- Variable Frost for hard edge BEAM or WASH effect
- Dimmer
- Strobe
- Electronic Ballast

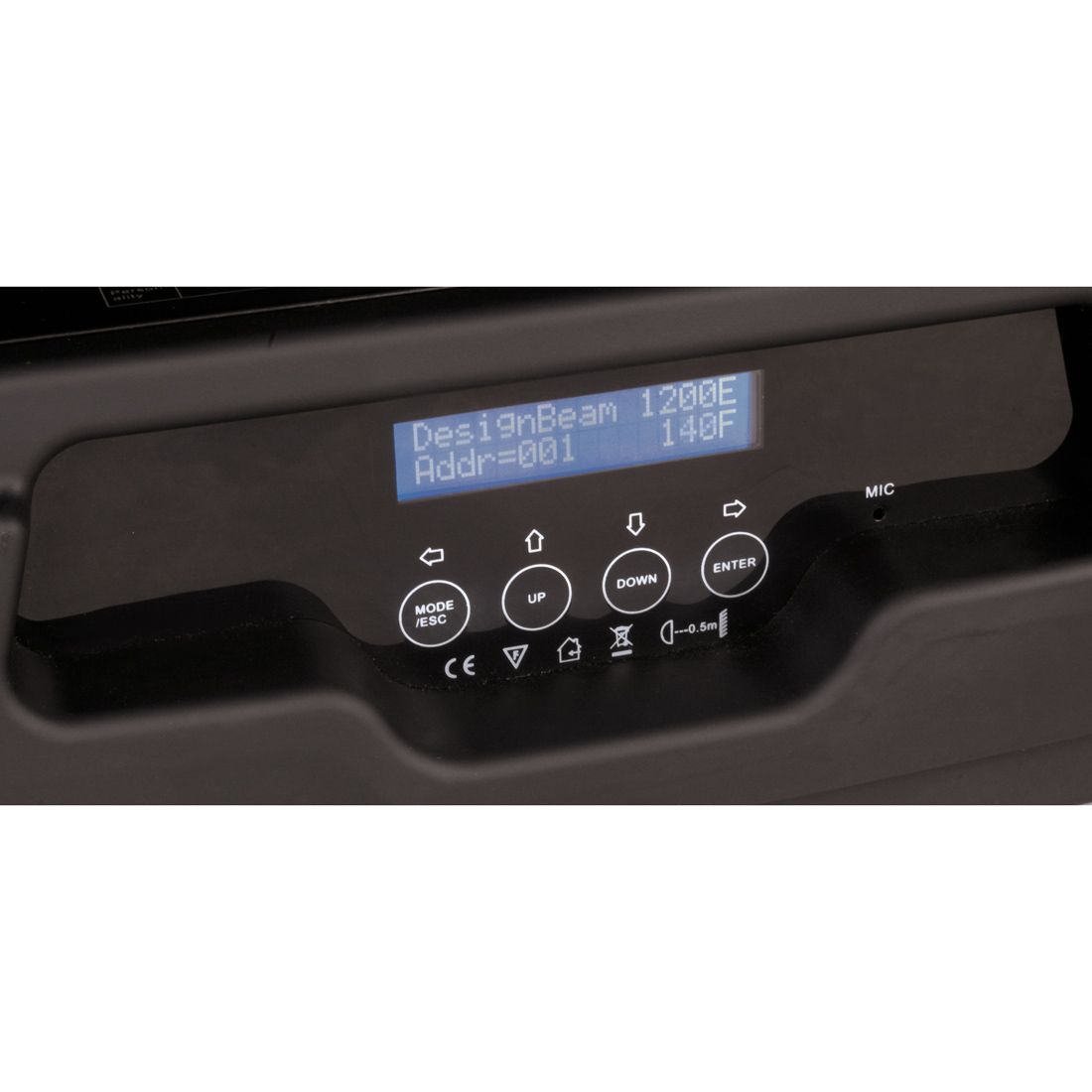

- Digital LCD Blue / White Menu Display
- Extended (32), Standard (21) or Basic (19) Channel Mode
- 16bit mode
- DMX record function on-board
- 3 User settable personality DMX traits
- Compact case design (575 size case)

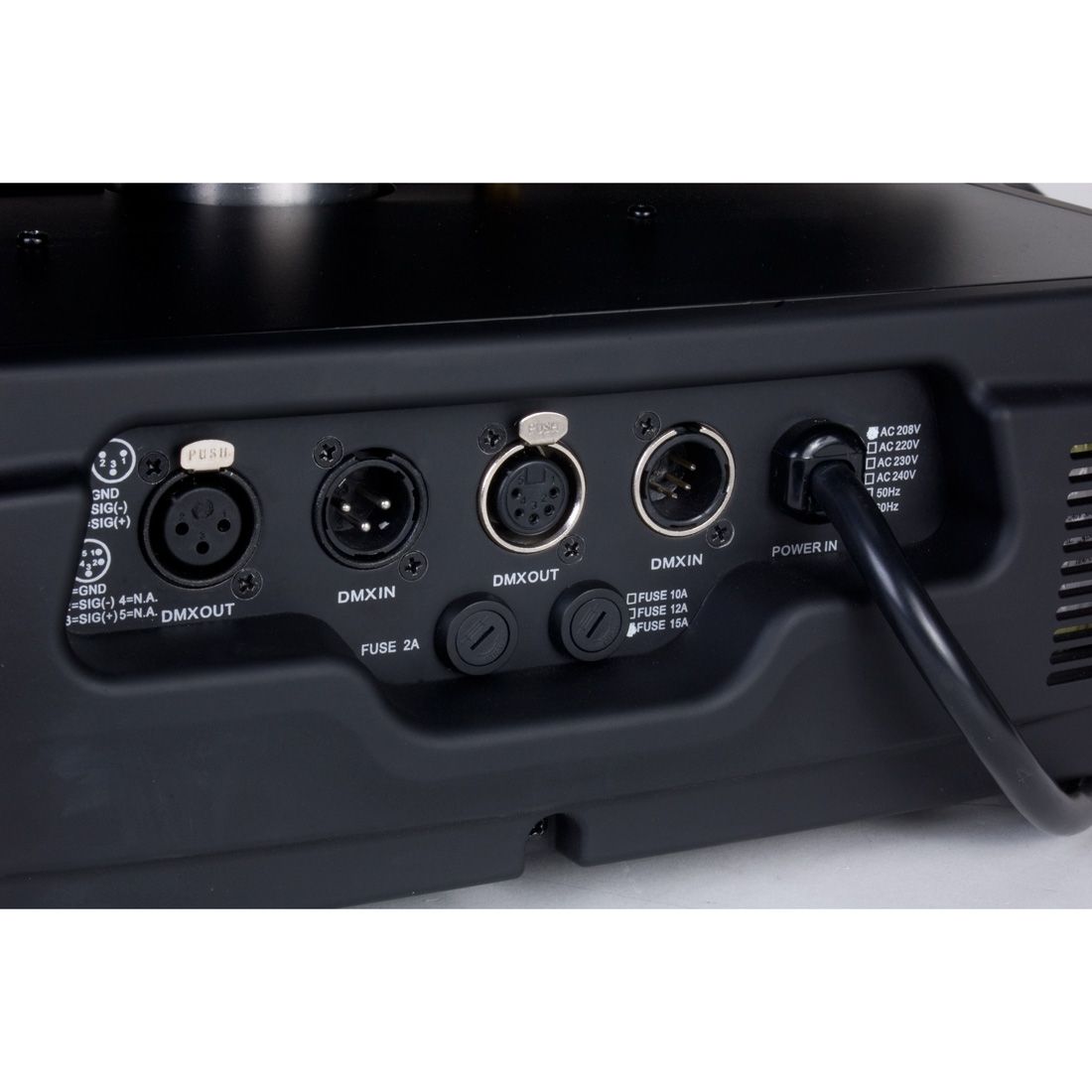

- 3 pin or 5pin DMX in/out
- MSR1200 SA/DE Philips Lamp - CRI 85 7500°k (included)
- Pan / Tilt Lock - 630degr. or 540degr. Pan (selectable) x 265degr. Tilt
- Weight - 30 kg

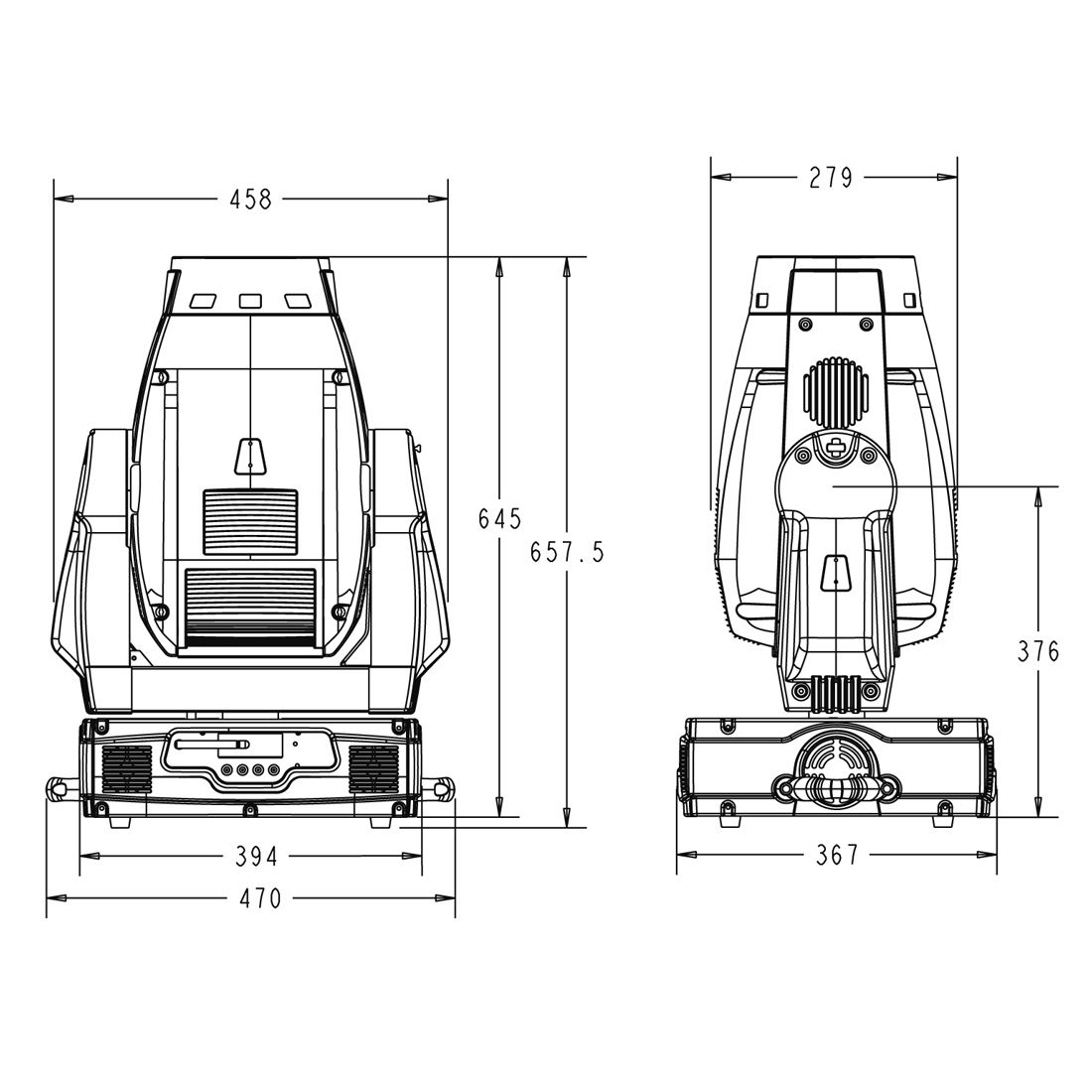

- Dimensions (LxWxH): 470x367x657,5mm (Head up)
- Voltage: 208-240v
- 50-60hz Power - 7.4A 1,536W
- DB Rating - 56.3db @ 0,91m
All DESIGN Series Heads are delivered with pre-installed original PHILIPS lamps!
Specifications and documentation subject to change without notice
