  • CUEPIX PAR300
Code 1236100108

CUEPIX PAR300

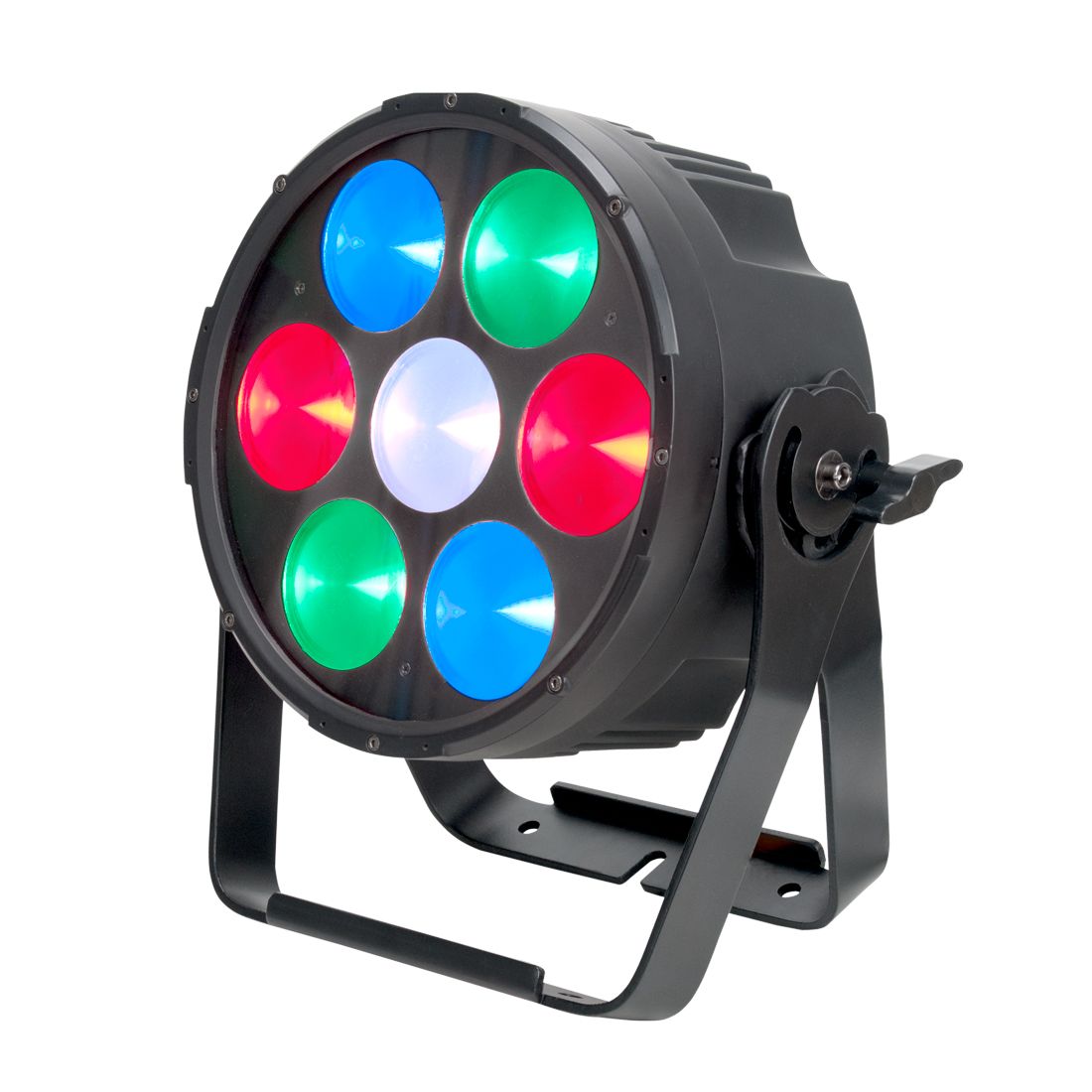

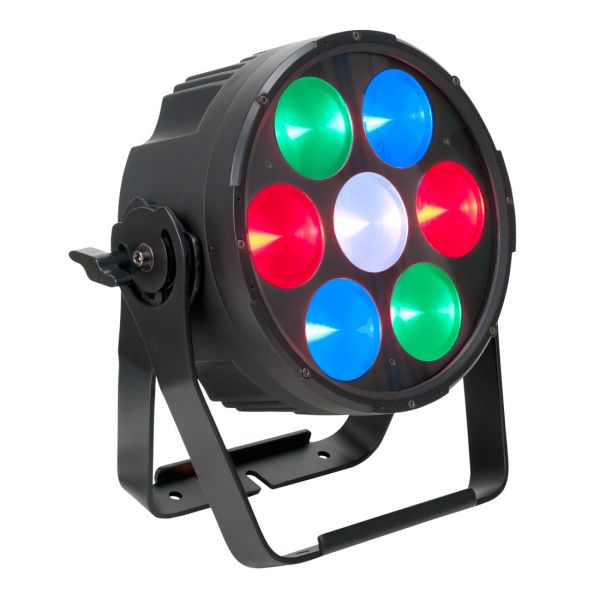

The new CUEPIX PAR 300™ features (7) long life 30W 3-in-1 RGB COB LEDs, 100,000 average hour LED life, 15° beam angle, individual control of each COB module, variable dimming curve modes, strobe and chase effects, ArtNet™, KlingNet™ and RDM (Remote Device Management) protocol support, locking 3/5pin DMX in/out, locking RJ45 ethernet in/out and locking power in/out connections, LCD menu display with (4) button control panel, integrated rigging bracket, no fans for silent operation, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and Film and a multi-voltage universal auto switching power supply (110-240V).

Technical Data

FEATURES

15° Beam 25° Field Angles
Full RGB Color Mixing
(5) Variable Dimming Curve Modes
No Fans - Silent Operation
Individual COB Module Control
Flicker Free Operation for TV and Film
Art-NET (DMX Over Ethernet) Support
Klingnet™ Support
RDM - Remote Device Management


SOURCE

(7) 30W 3-in-1 COB LEDs
100,000 Hour Average LED Life


PHOTOMETRIC DATA

24,200 LUX @ 1m (15°)


EFFECTS

Strobe and Chase Effects
Individual COB Module Control
(5) Variable Dimming Curve Modes


COLOR

Full RGB Color Mixing and Color Macros

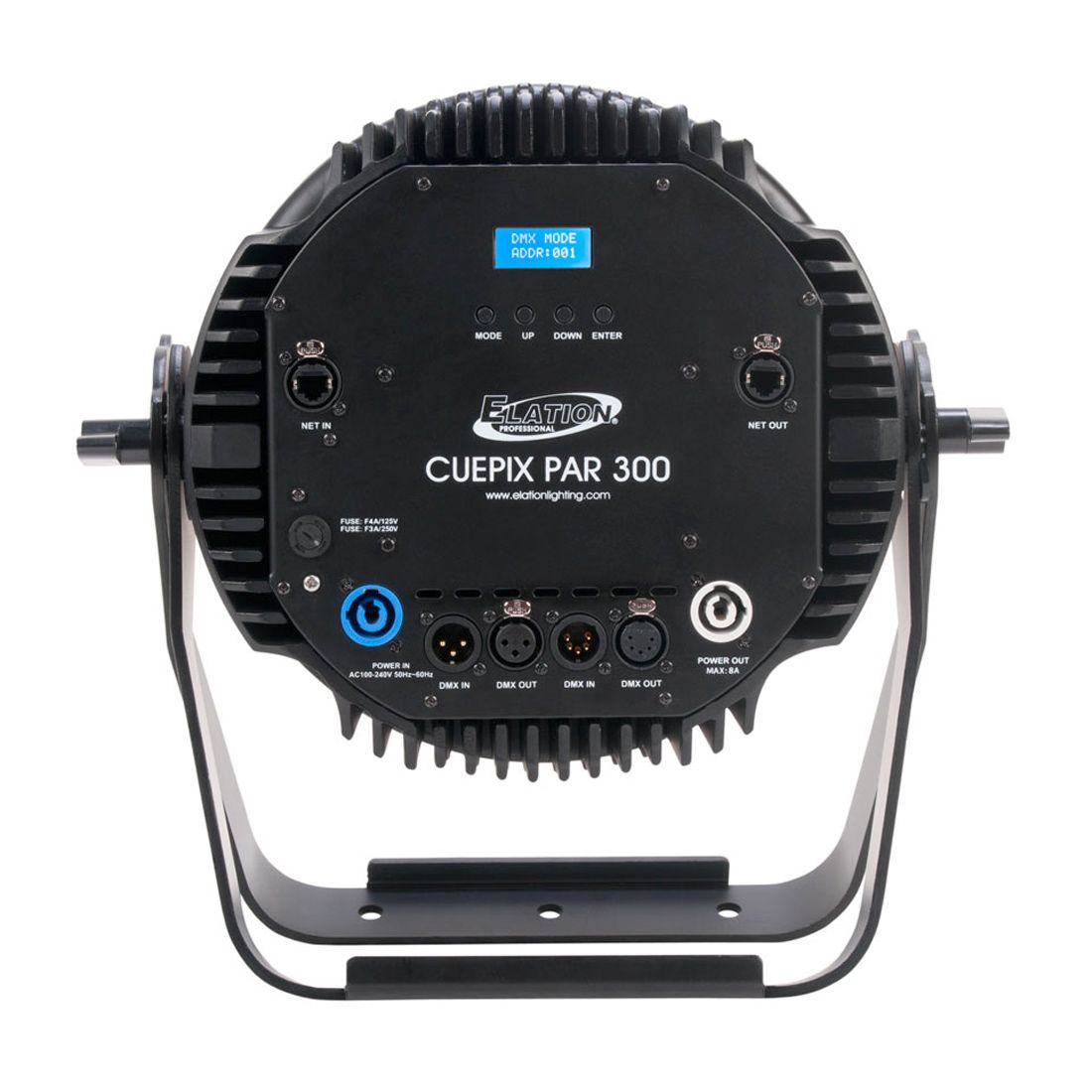

CONTROL / CONNECTIONS

(6) DMX Channel Modes (3 / 4 / 5 / 9 / 21 / 24)
RDM (Remote Device Management)
(4) Button Control Panel and LCD Menu Display
Locking RJ45 ethernet In/Out (Art-NET™ & Klingnet™ Support)
Locking 3/5pin DMX In/Out
Locking power connector In/Out


SIZE / WEIGHT

Length: 14.4" (365mm)
Width: 5.8" (147mm)
Vertical Height: 14.4" (365mm)
Weight: 17.0 lbs. (7.7 kg)


ELECTRICAL / THERMAL

AC 110-250V - 50/60Hz
300W Max Power Consumption
5°F to 113°F (-15°C to 45°C)


Specifications and documentation subject to change without notice

Downloads

CAD Drawings

CUEPIX PAR300 2D CAD File (Size: 754.7 KB)
CUEPIX PAR300 3D CAD File (Size: 234.2 KB)

Dimensional Drawings

CUEPIX PAR300 Dimensional Drawings (Size: 312 KB)

DMX Traits

CUEPIX PAR300 DMX Traits (Size: 90 KB)

Additional Downloads

CUEPIX PAR300 IES Files (Blue) (Size: 1.7 KB)
CUEPIX PAR300 IES Files (Green) (Size: 1.8 KB)
CUEPIX PAR300 IES Files (Red) (Size: 1.7 KB)
CUEPIX PAR300 IES Files (White) (Size: 1.8 KB)
CUEPIX PAR300 Photometrics (Size: 293.1 KB)

User Manual

CUEPIX PAR300 Manual (Size: 1.4 MB)

Photometric Data

CUEPIX PAR300 Photometric Test Report (Blue) (Size: 260.3 KB)
CUEPIX PAR300 Photometric Test Report (Green) (Size: 264.4 KB)
CUEPIX PAR300 Photometric Test Report (Red) (Size: 261.6 KB)
CUEPIX PAR300 Photometric Test Report (White) (Size: 264.8 KB)

Specification Sheet

CUEPIX PAR300 Specification Sheet (Size: 932 KB)

Vectorworks Symbols

CUEPIX PAR300 Vectorworks 2014 File (Size: 262.1 KB)
CUEPIX PAR300 Vectorworks 2015 File (Size: 262.8 KB)
CUEPIX PAR300 Vectorworks 2016 File (Size: 263.8 KB)
