  • CUEPIX BLINDER WW4
Code 1236200039

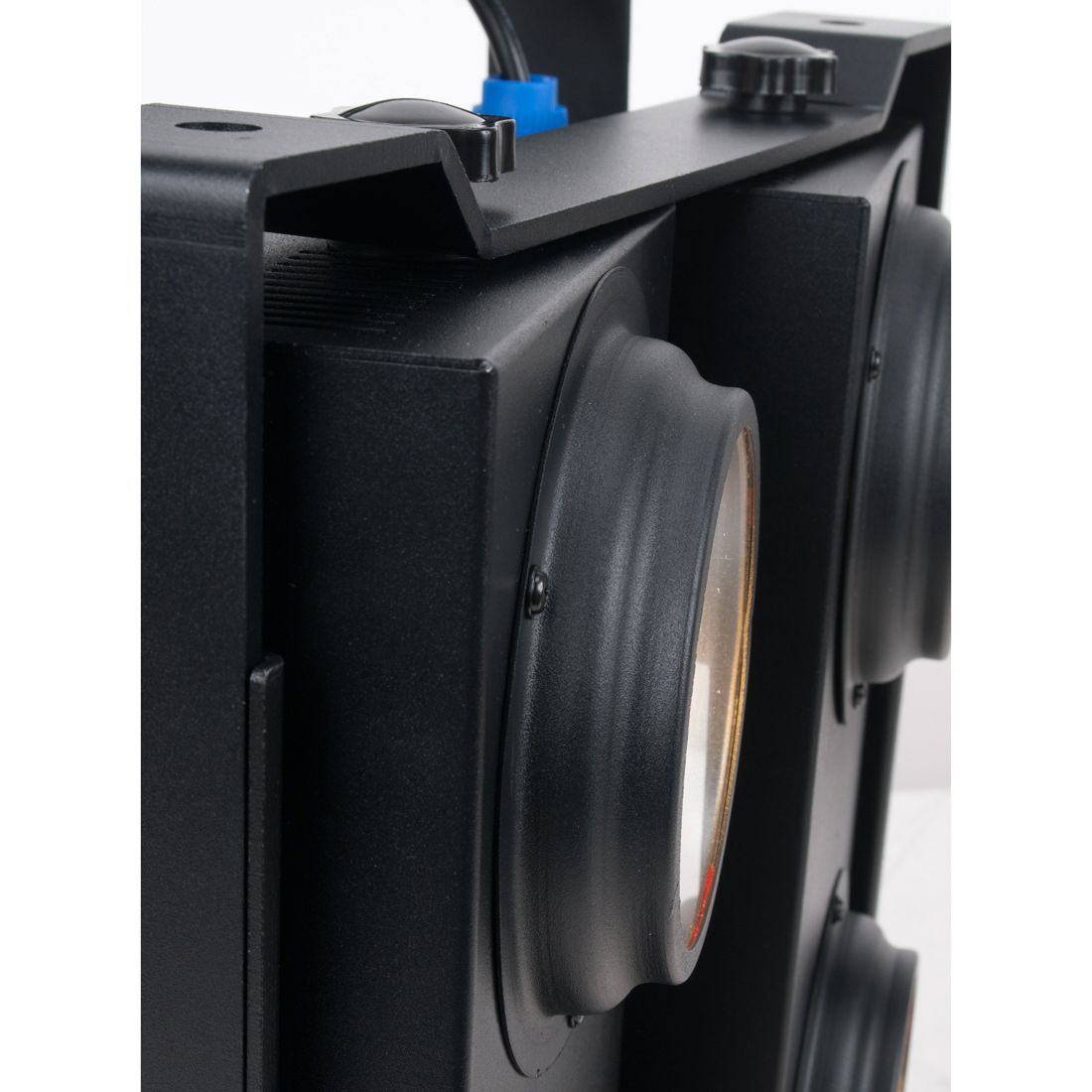

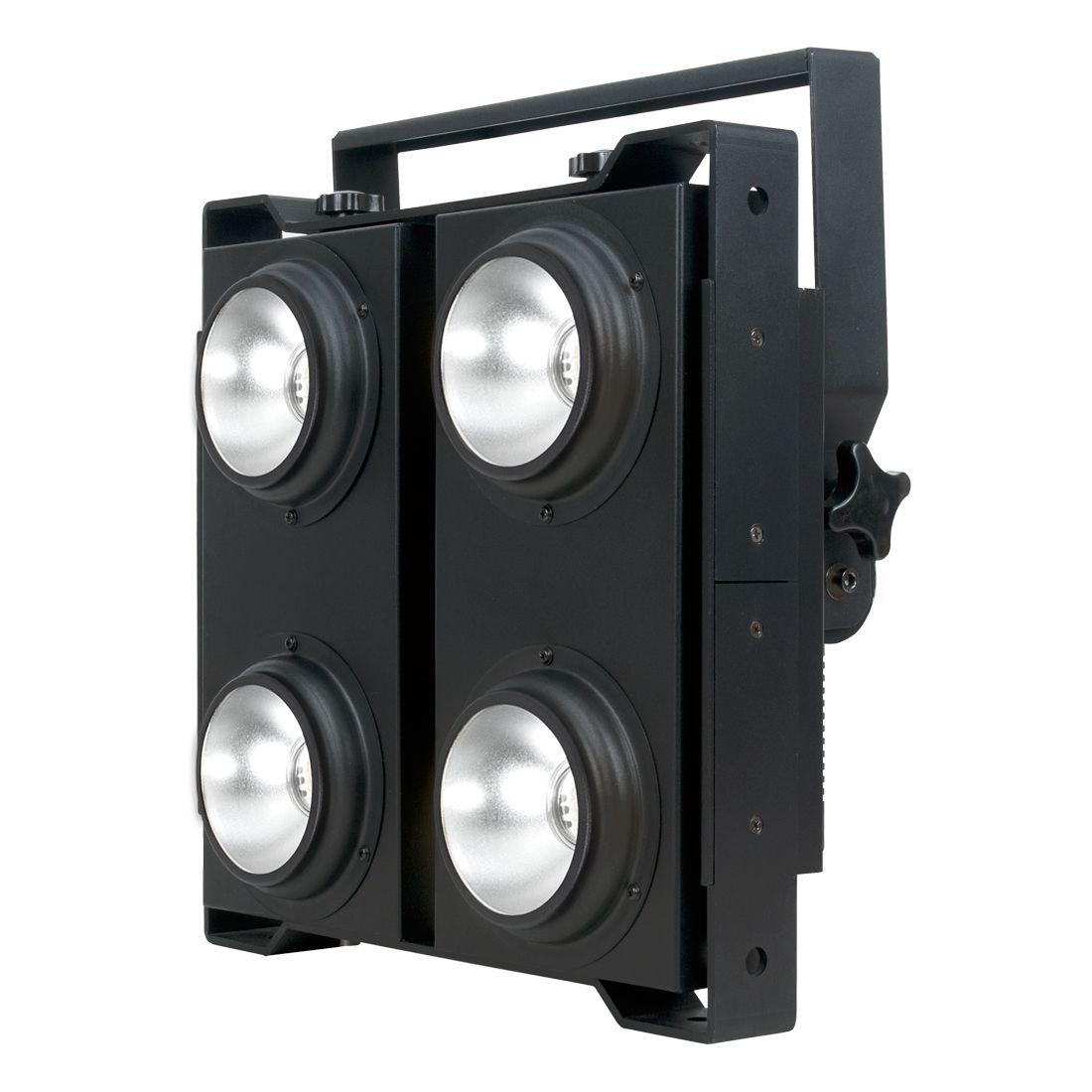

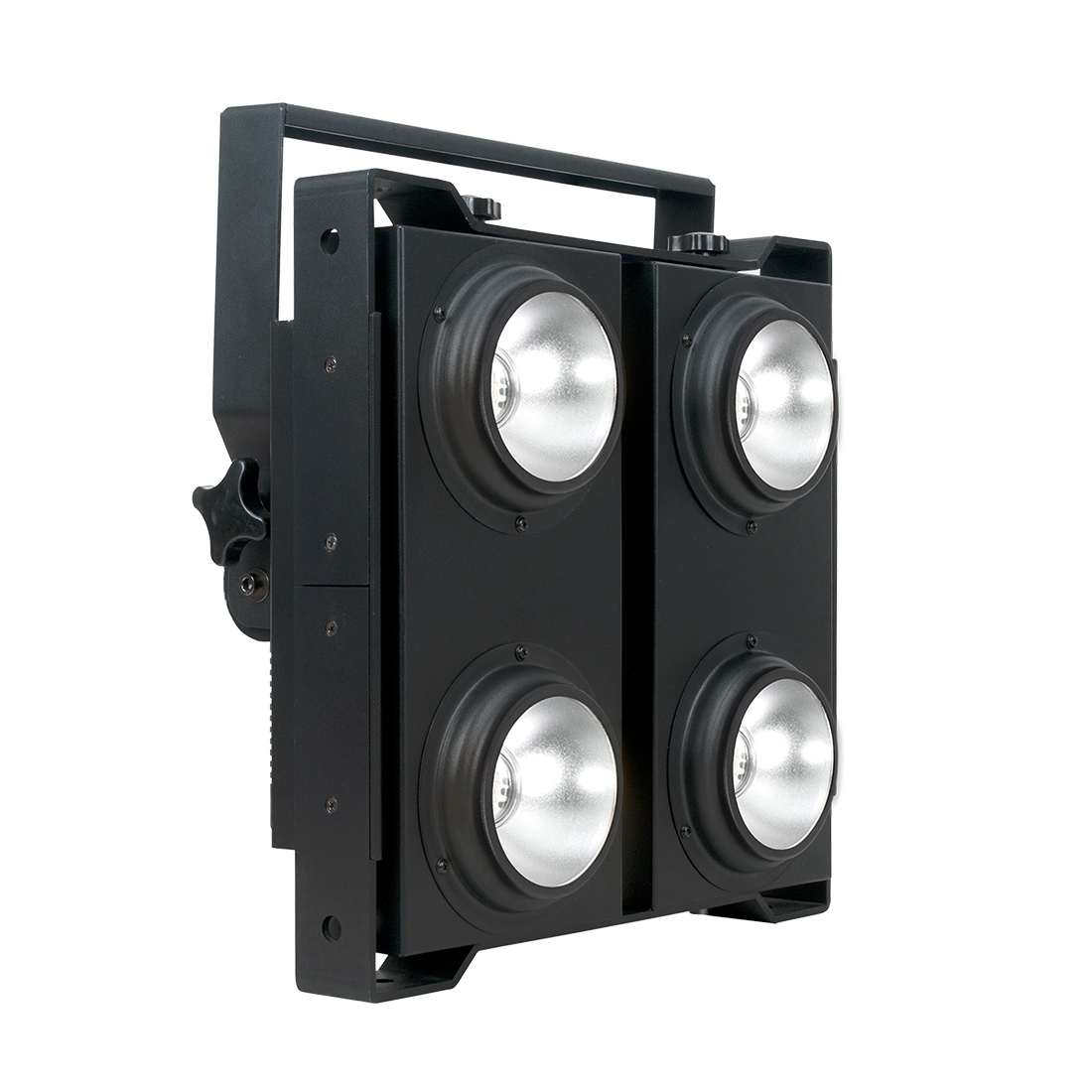

CUEPIX BLINDER WW4

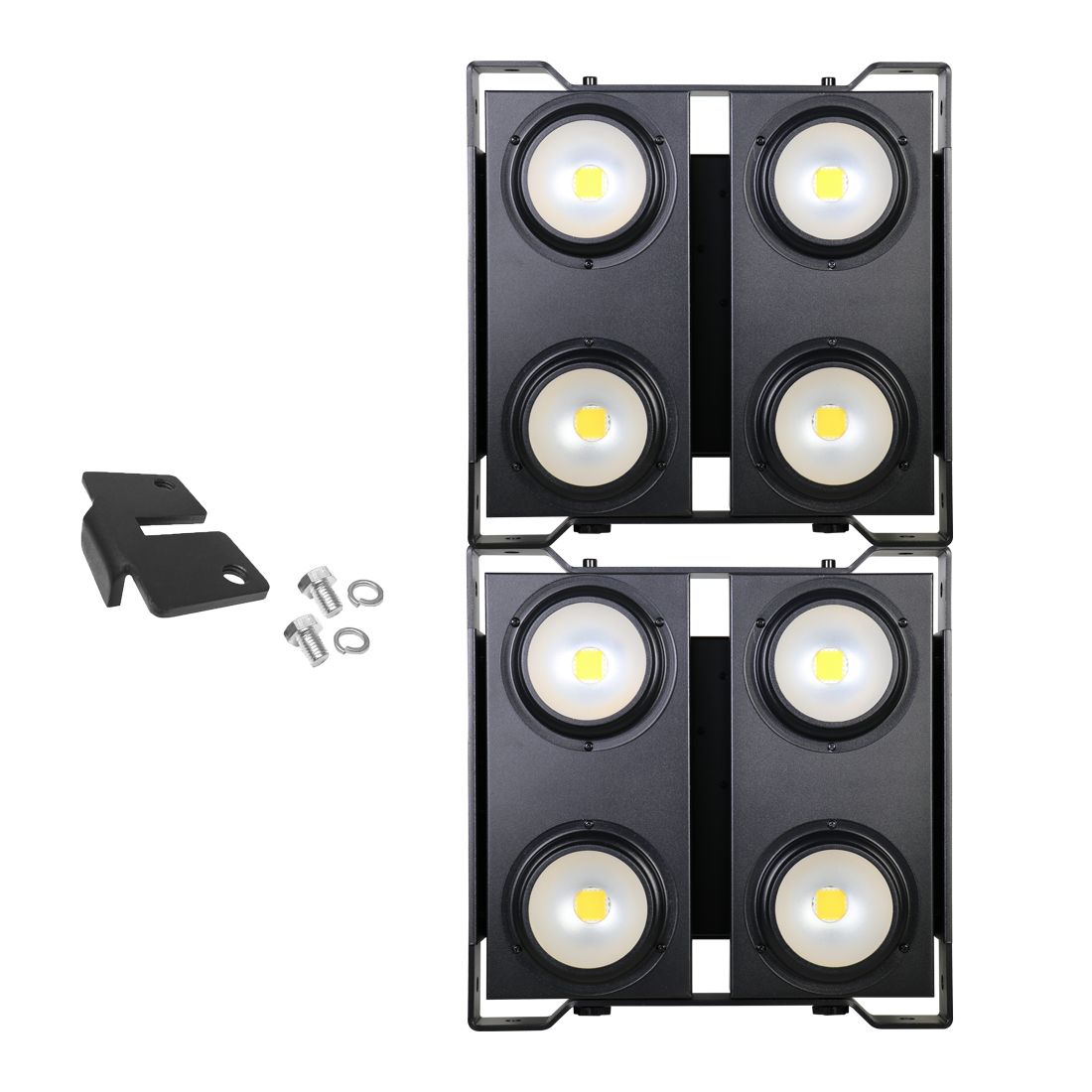

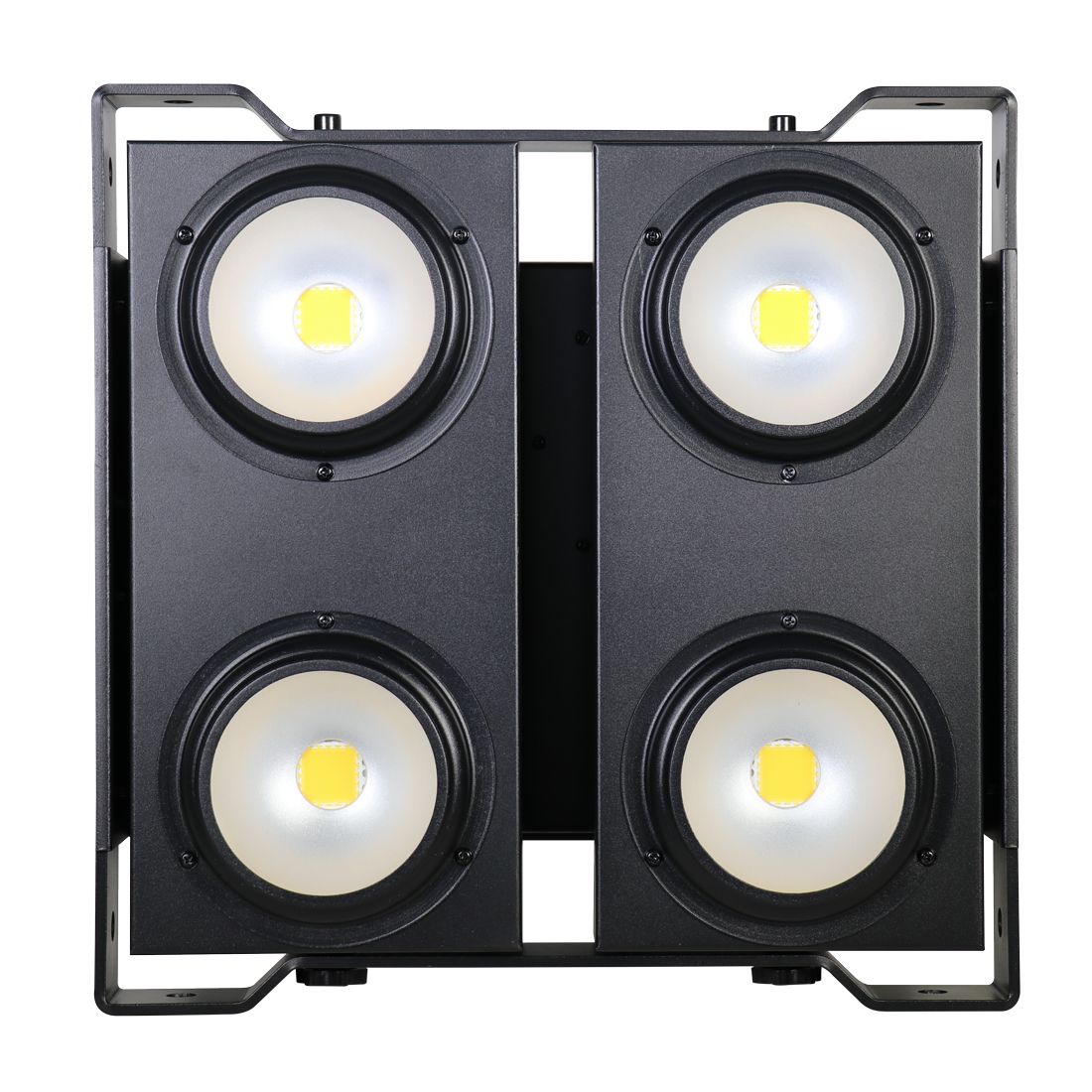

The CUEPIX Blinder WW4™ features (4) long life 100W Warm White 3,200K COB LEDs, a 62° beam angle, RDM (Remote Device Management), individual control of each COB module, manual pan focus, variable and selectable dimming curves, strobe effects, flicker free operation for TV and Film, 3pin and 5pin DMX and Locking Power Cable in/out connections, LCD menu display with 4 button control panel, integrated yoke and side mounting brackets, and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

High Power Long Life Warm White COB LEDs
62° Beam Angle / 100° Field Angle
Individual Control of Each COB Module
5 Variable Dimming Curve Modes
RDM (Remote Device Management)
Flicker FREE Operation for TV and FILM

SOURCE

(4) 100W Warm White 3,200K COB LEDs
100,000 Hour Average Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

12,300 LUX 1,143 FC @ 1M (3.3’) / 3,200K

EFFECTS

Strobe
Dimming : 0% - 100% of Each COB Module
Variable Dimming Curves

CONTROL / CONNECTIONS

6 DMX Channel Modes (1 / 2 / 4 / 5 / 7 / 9)

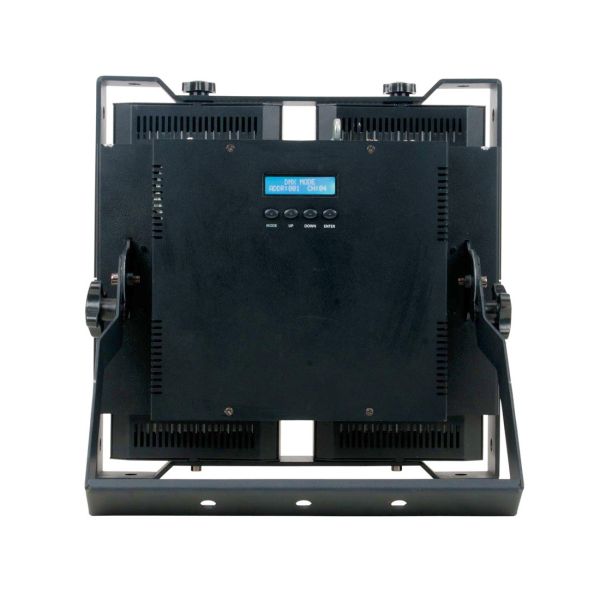

4 Button Control Panel and LCD Menu Display

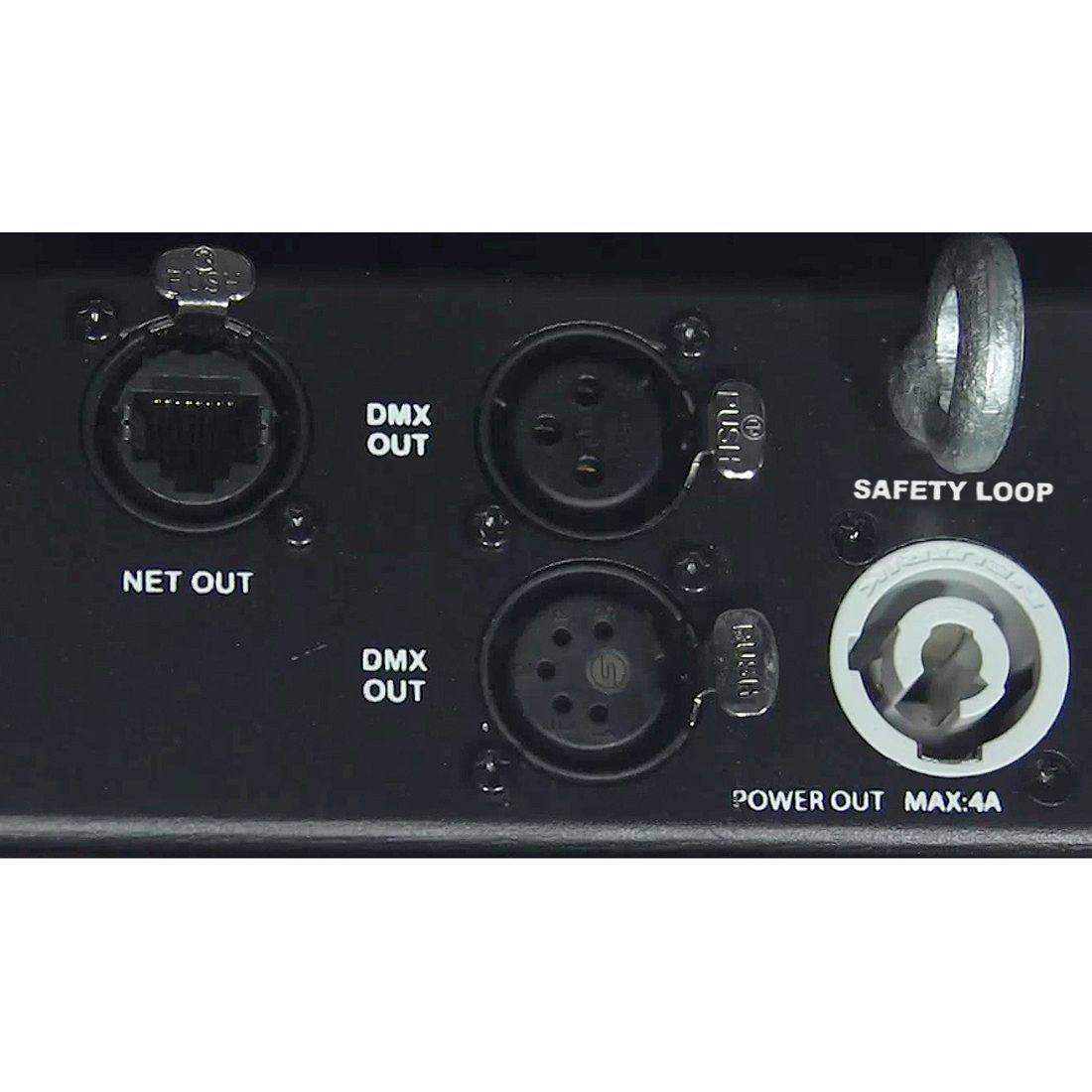

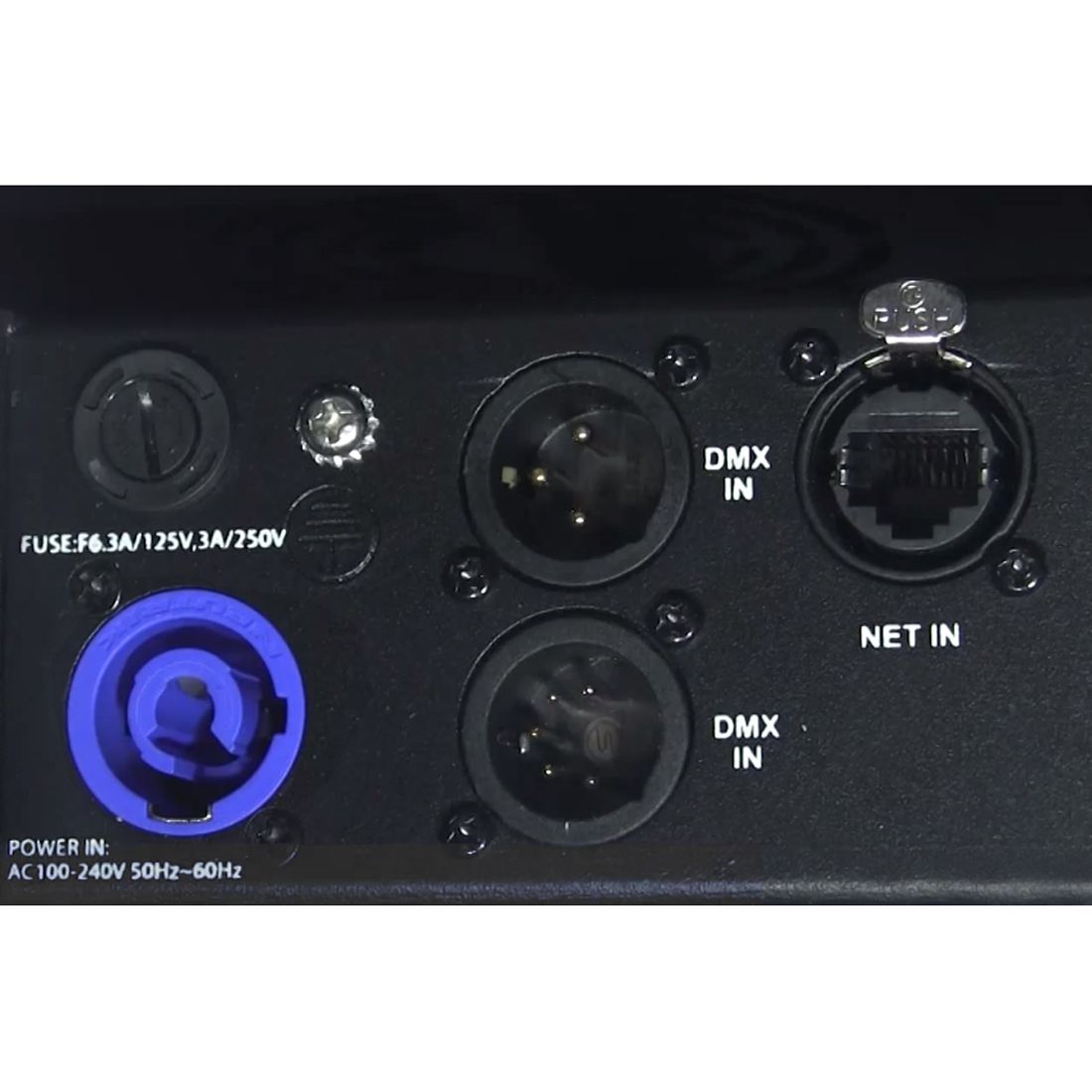

3pin and 5pin DMX In/Out
RDM* (Remote Device Management) *Software Version 1.13 or Higher
Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 400mm (15.7")
Width: 174mm (6.9")
Horizontal Height: 441mm (17.4")
Weight: 9.5 kg (21.0 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
427W Max Power Consumption
-10°C to 45°C (14°F to 113°F)

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice

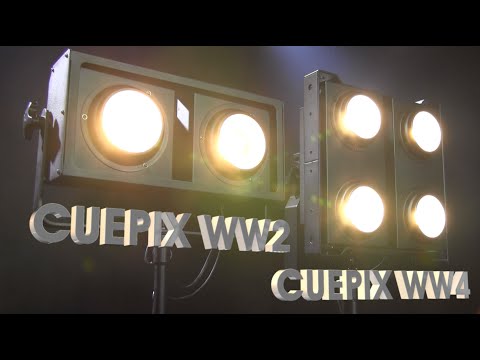

Videos
