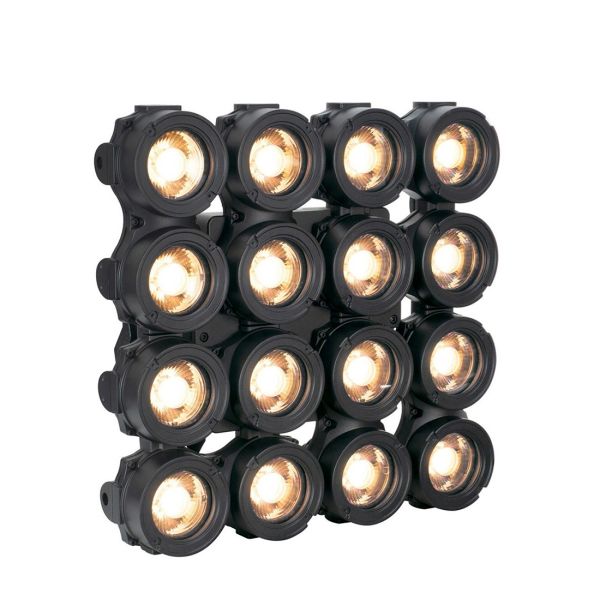

CUEPIX 16IP DTW
16x 40W Dim to Warm LED IP65 Matrix Effect Panel
Code 1236300088
![](https://www.elationlighting.eu/pub/media/catalog/product/c/u/cuepix_16ip_website_pic.jpg)
Code
1236300088
![](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/c/u/cuepix_16ip_website_pic.jpg)
![CUEPIX 16IP DTW Picture 3](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/C/U/CUEPIX_16_DTW-FT3_4_1.jpg)
![CUEPIX 16IP DTW Picture 5](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/C/U/CUEPIX_16_DTW-LT4_4_1.jpg)
![CUEPIX 16IP DTW Picture 6](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/C/U/CUEPIX_16_DTW-LT6_4_1.jpg)
![CUEPIX 16IP DTW Picture 8](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/C/U/CUEPIX_16_DTW-rear_4_1.jpg)
![CUEPIX 16IP DTW Picture 9](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/C/U/CUEPIX_16_DTW-side_4_1.jpg)
![CUEPIX 16IP DTW Picture 10](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/E/L/ELATION-CUEPIX_16IP_DTW-Unlink_2_1.jpg)
![CUEPIX 16IP DTW Picture 11](https://www.elationlighting.eu/pub/media/catalog/product/cache/9e8b08f8fc8d45187ddab759a10bb48c/E/L/ELATION-CUEPIX_16_DTW-FTQ_1_1.jpg)
FEATURES

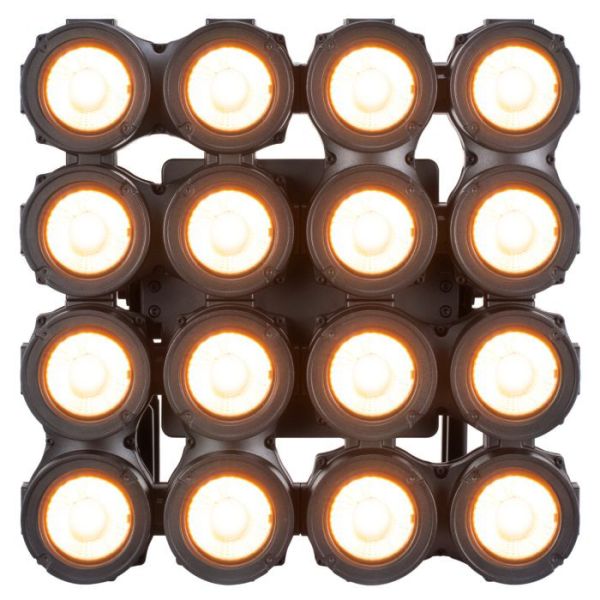

Versatile IP65 Outdoor Rated Effect Panel Luminaire4x4 Matrix Array of (16) 40W DTW COB LEDs

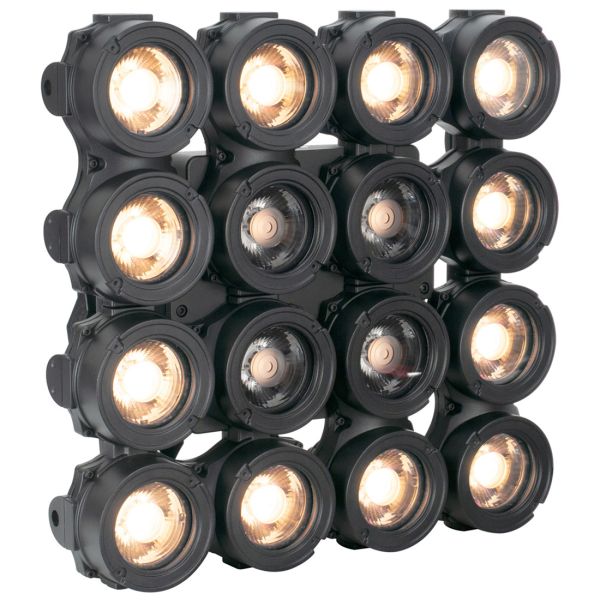

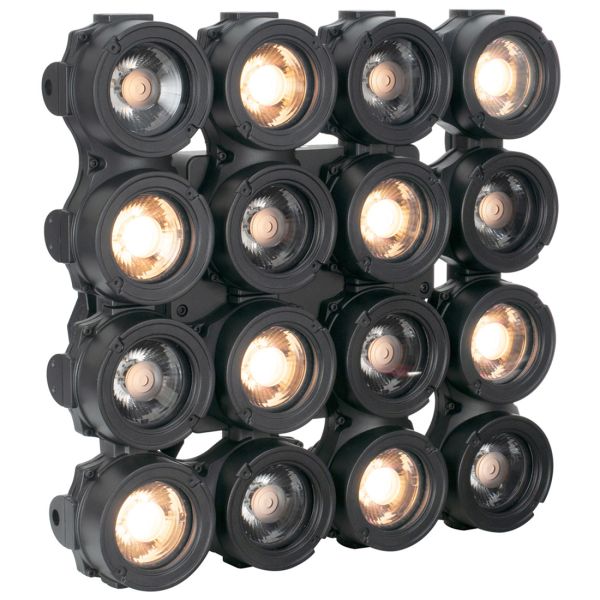

Full Pixel Control with Pixel Flip Modes
16-bit Dimming and Variable Dimming Curve Modes
Convection Cooled - No Fans for Noise-Sensitive Applications

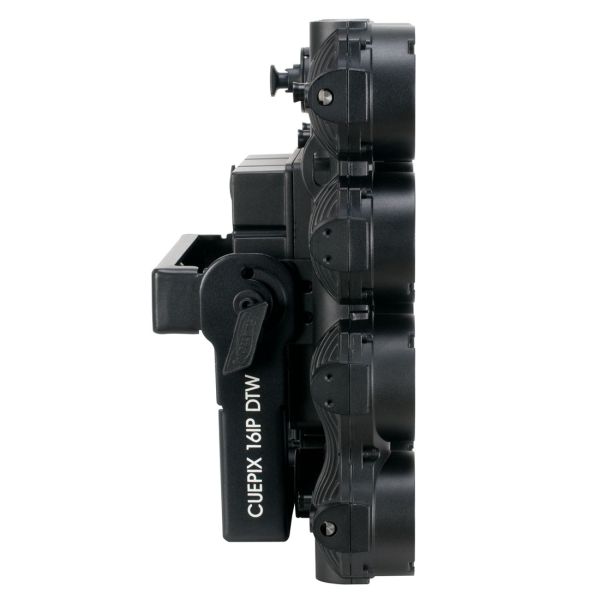

90° Adjustable and Fixed Yoke Brackets w/3-Position Holes

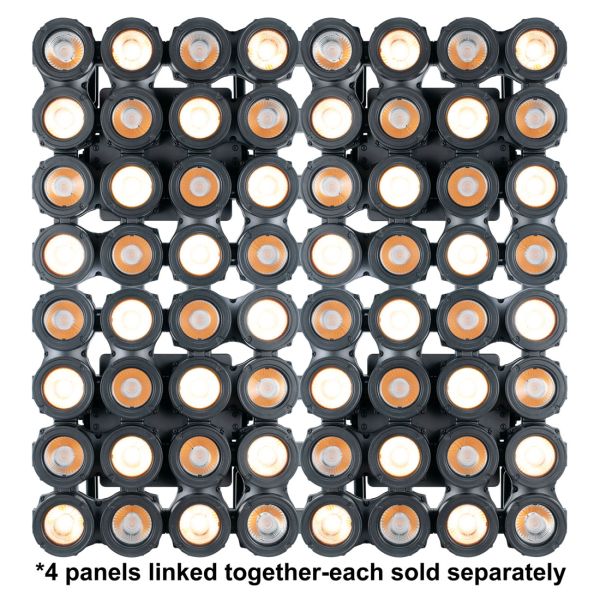

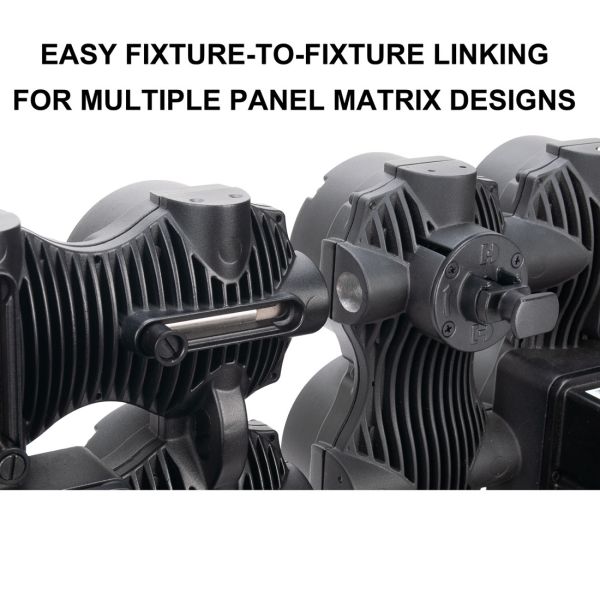

Integrated Fixture-to-Fixture Interlocking Alignment Pins/Locks
Optional 1/4 Turn Omega Brackets Available
SOURCE
(16) 40W DTW COB LEDs50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
10,000+ Total Lumen Output22.6 ° Beam / 41.3° Field Angles
1929 LUX 179 FC @ 5m (16.4') (Full ON)
EFFECTS
Full Pixel Control with Pixel Flip ModesHigh Speed Electronic Shutter and Strobe
16-Bit Dimming and Variable Dimming Curve Modes
COLOR
DTWCONTROL / CONNECTIONS
7 DMX Channel Modes (64 total channels)Adjustable Refresh Rate (900 - 25,000Hz)
4 Button OLED Menu Control Display
DMX, RDM, and Art-Net Protocol Support

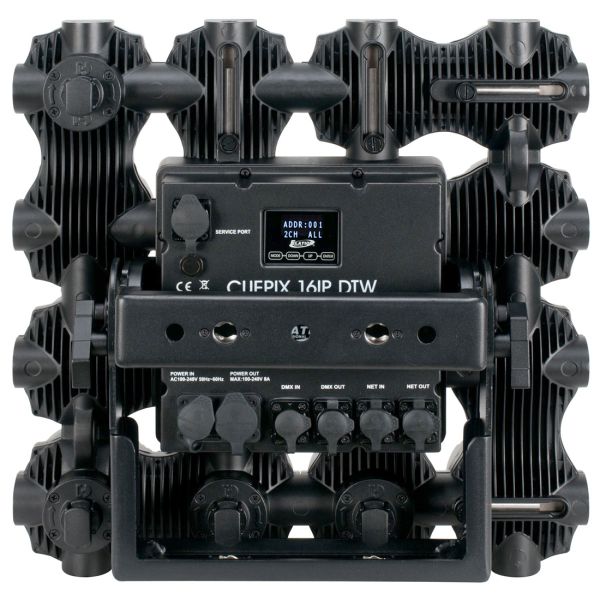

IP65 Locking 5pin XLR DMX, RJ45 Ethernet, Power In/Out
Fixture-to-Fixture Interlocking Alignment Pins/Locks
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 440mm (17.32”)Width: 207mm (8.1”)
Vertical Height: 440mm (17.31”)
Weight: 15.0 kg (33.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz400W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
FIRMWARE UPDATES
Current firmware can be found here (login required)
Specifications and documentation subject to change without notice
