Code
1412000009














FEATURES
1250W high-output Magmatic snow technologyAdjustable snowflake size

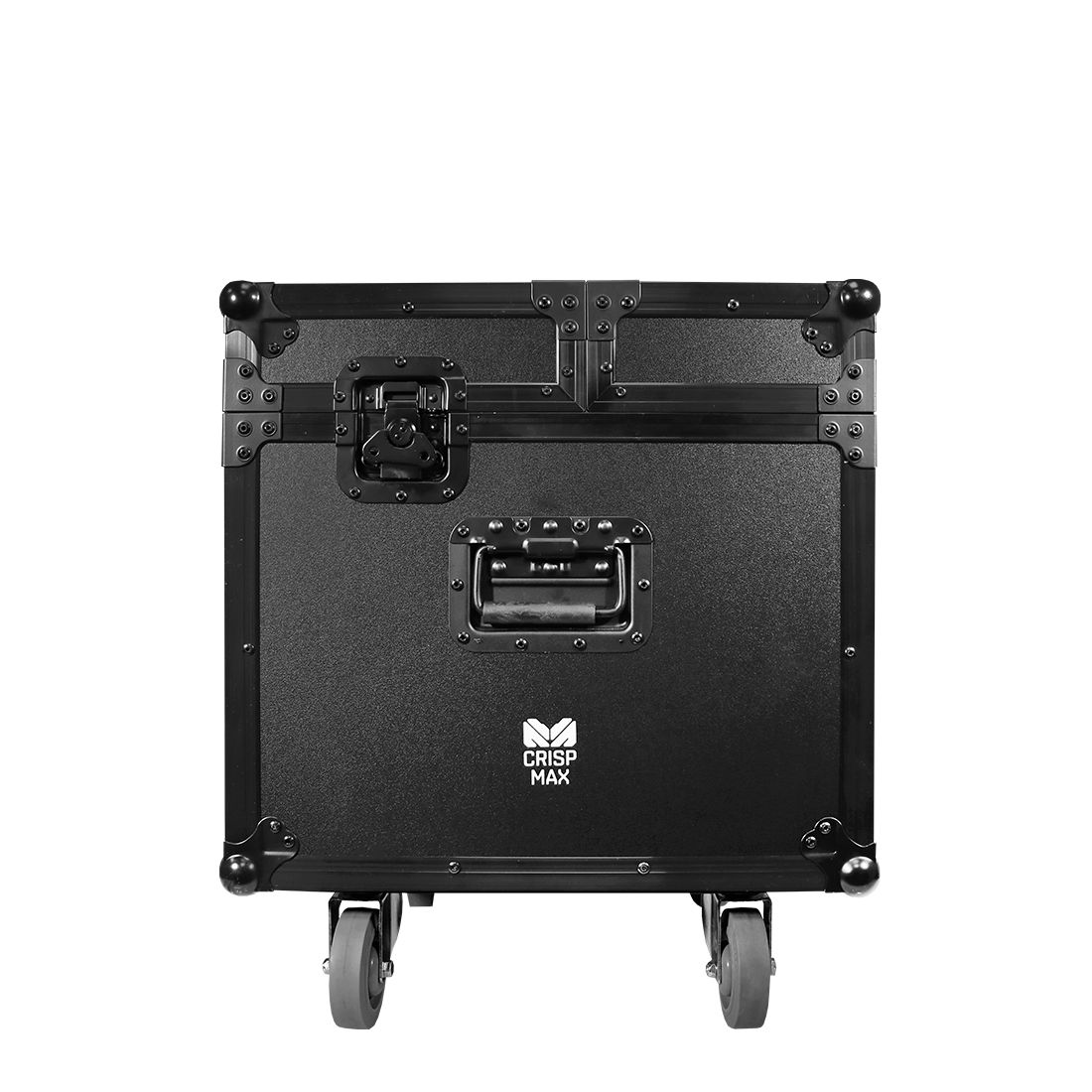

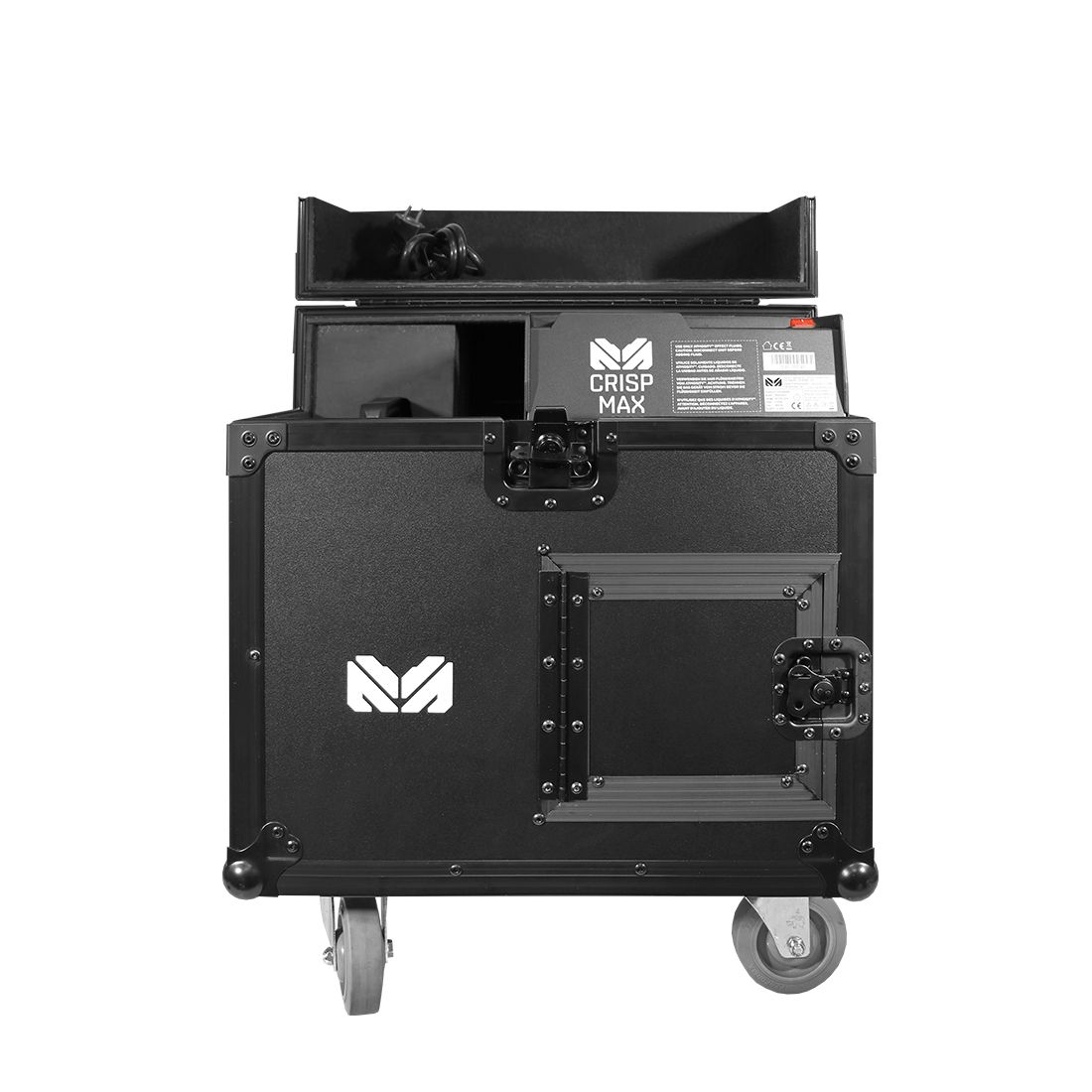

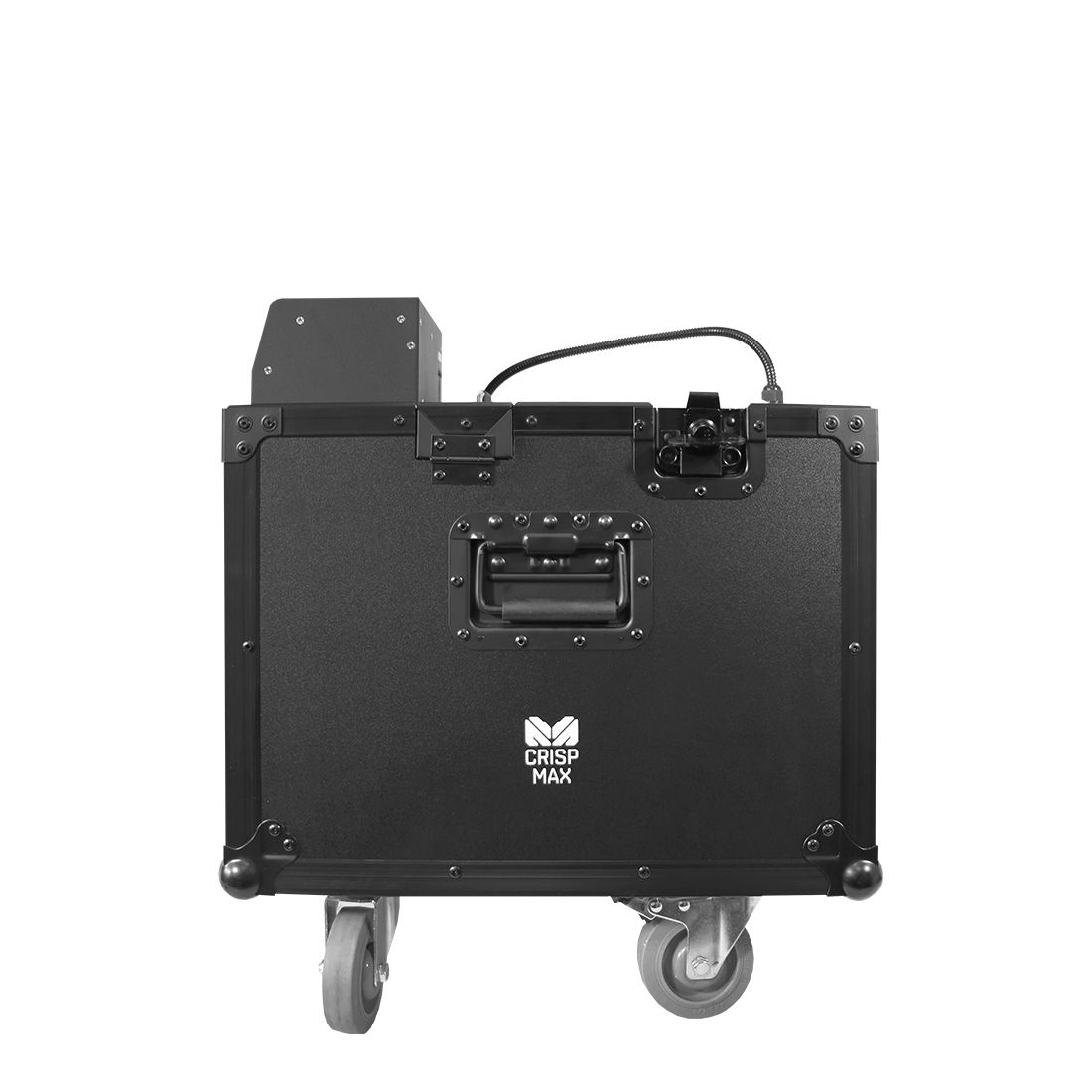

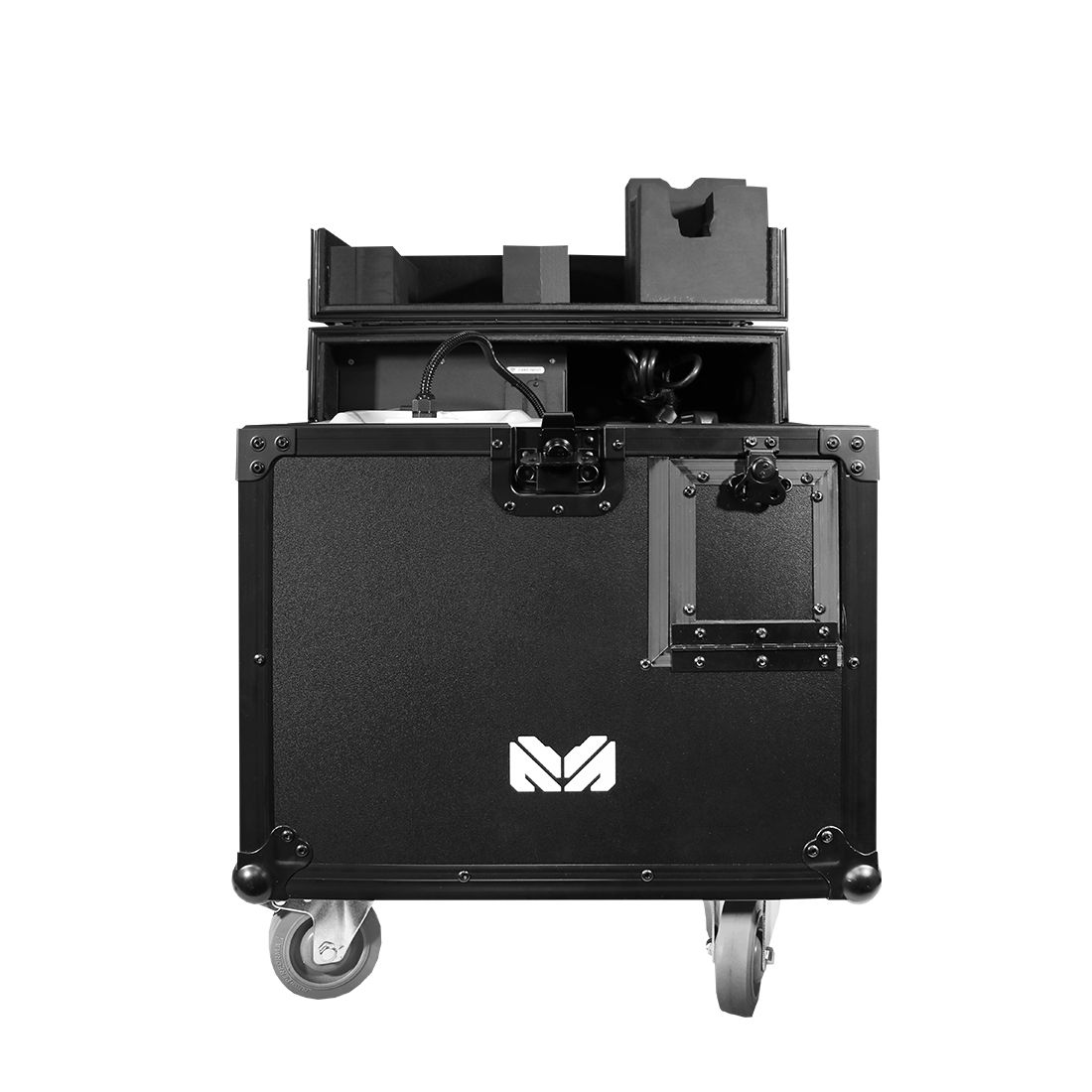

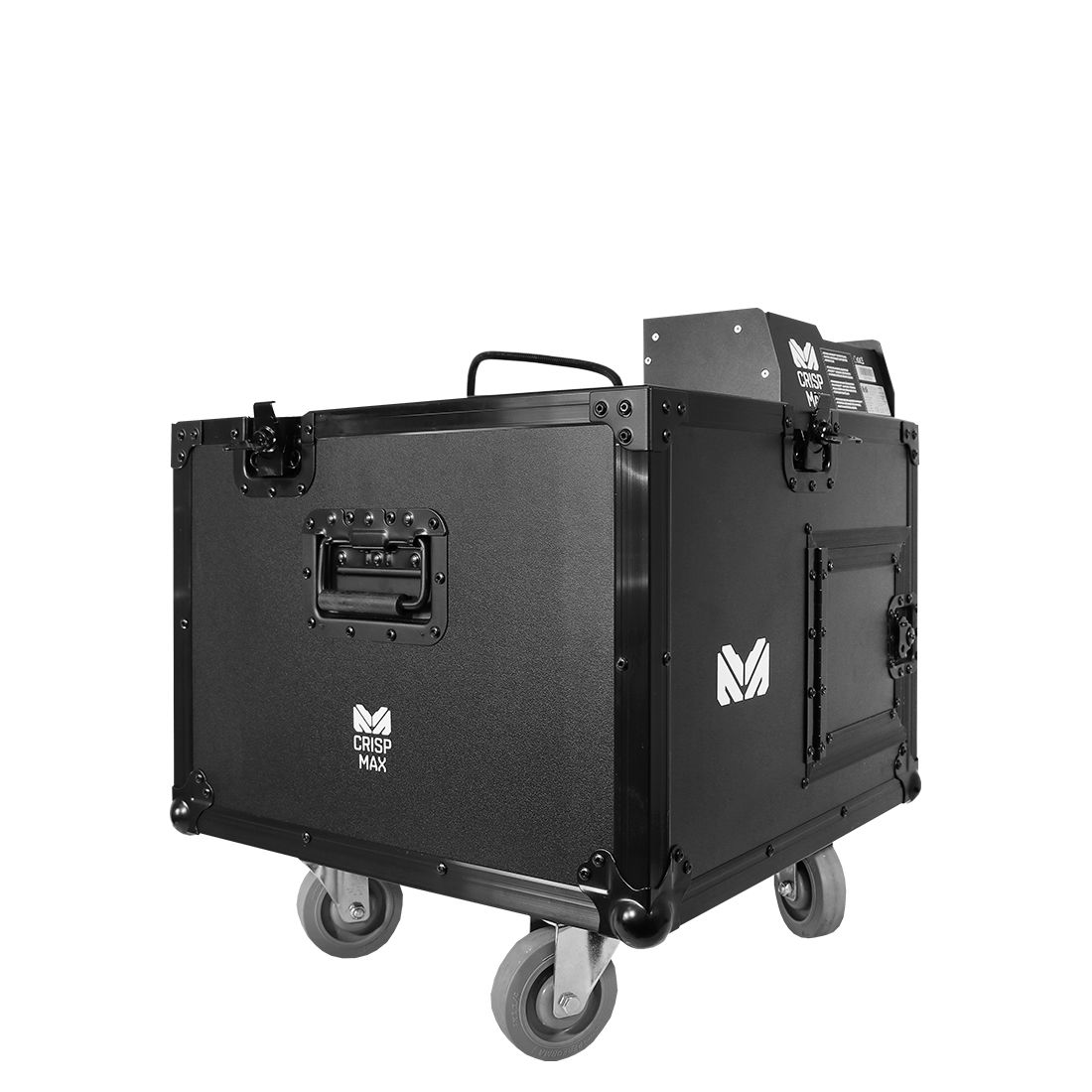

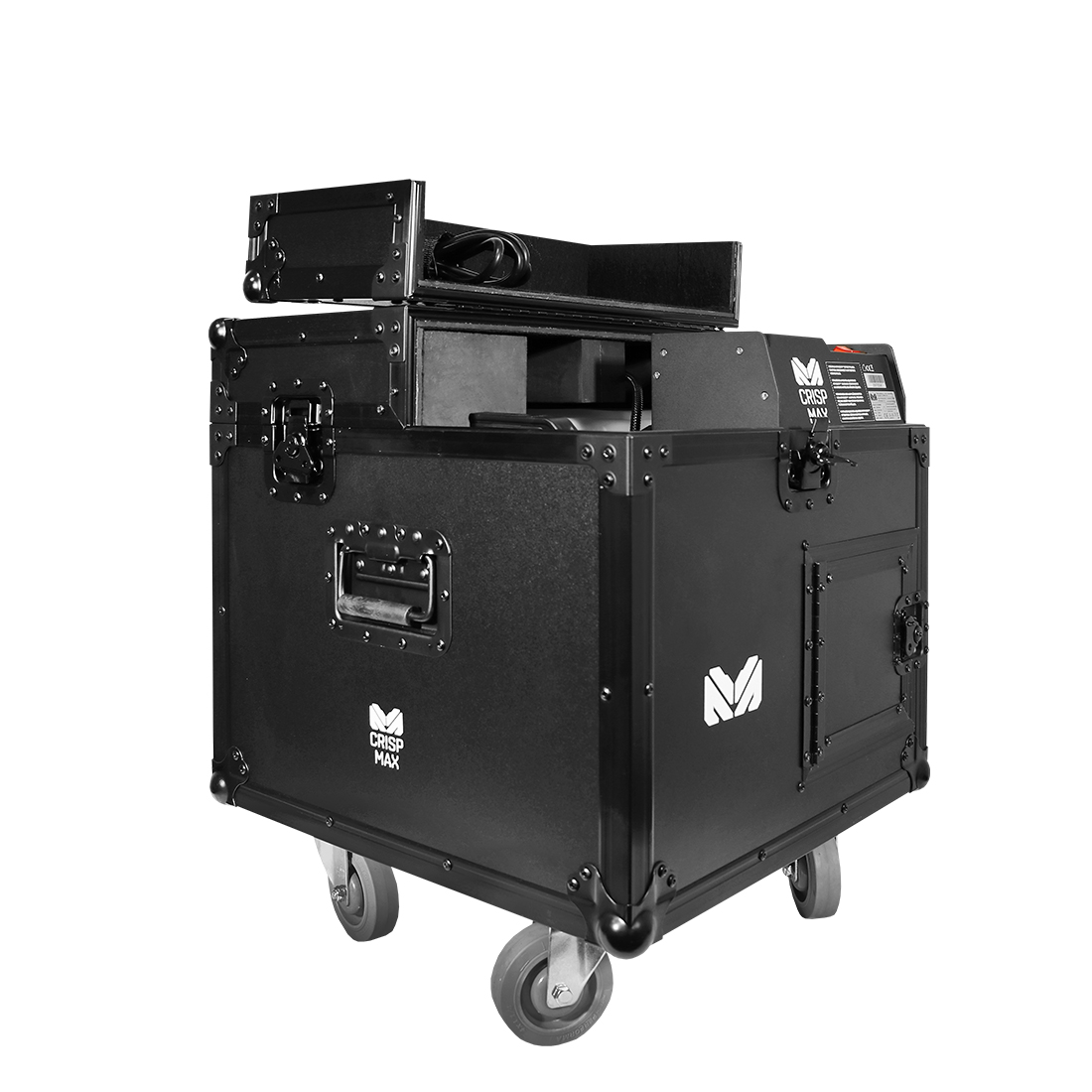

Road case for easy transportation and extra protection

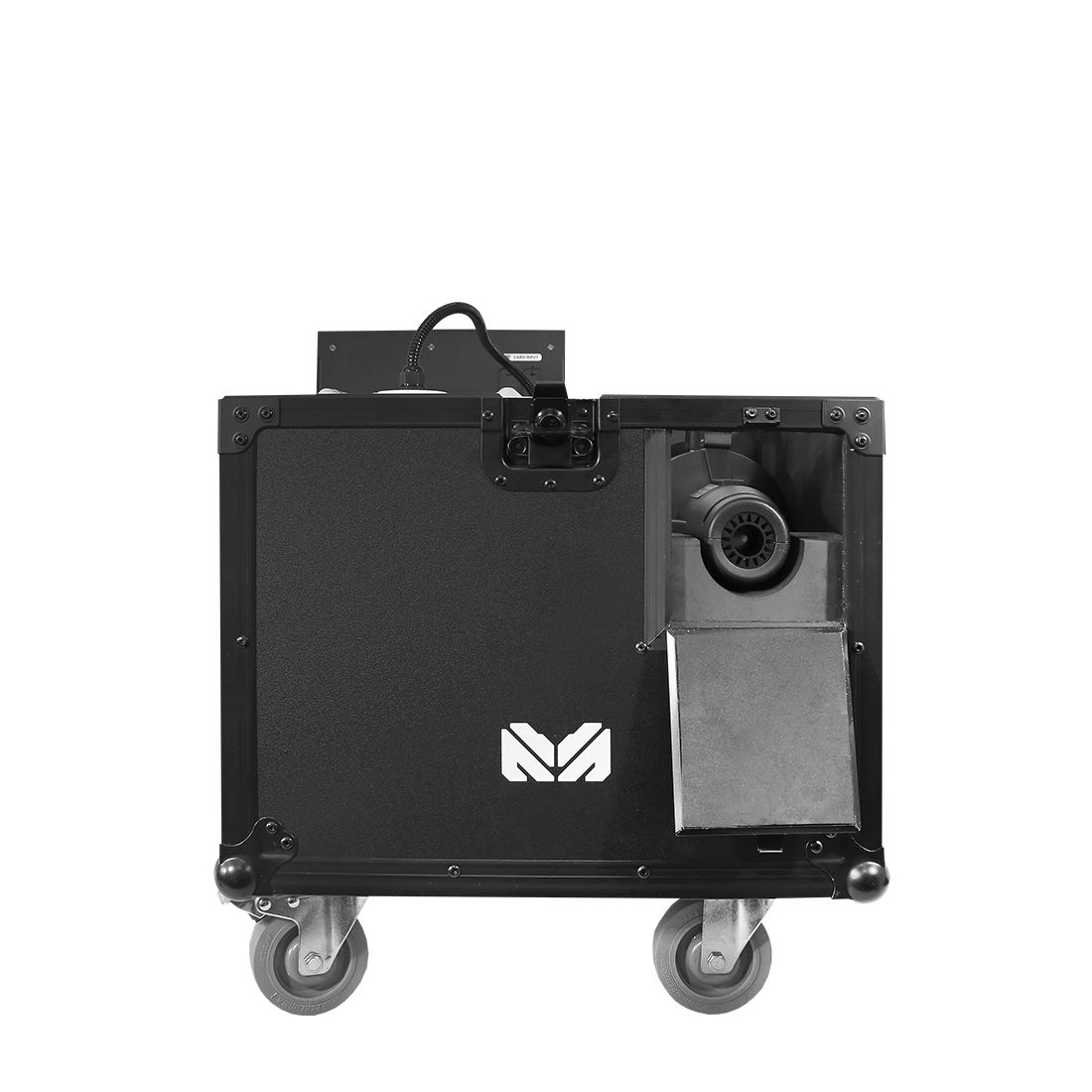

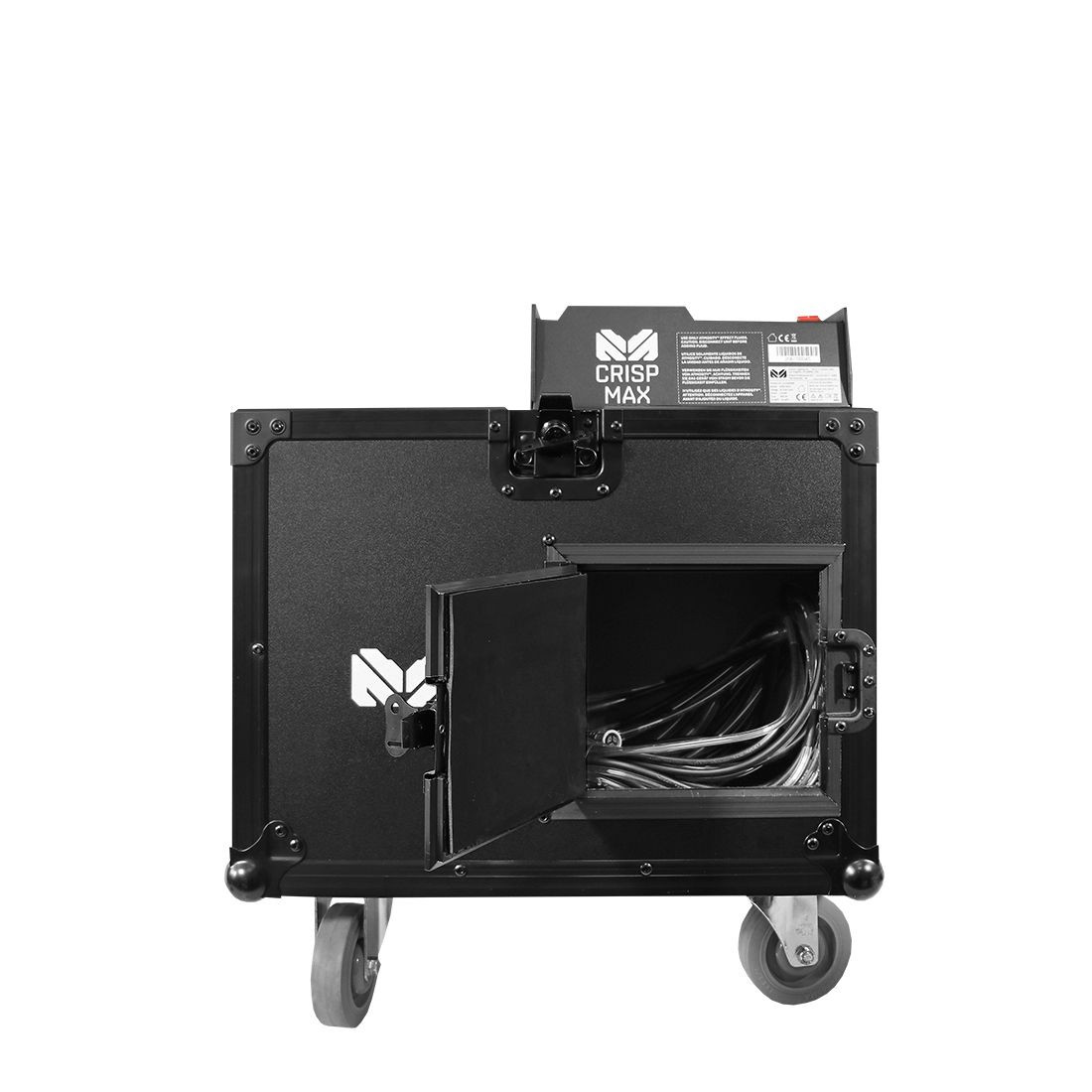

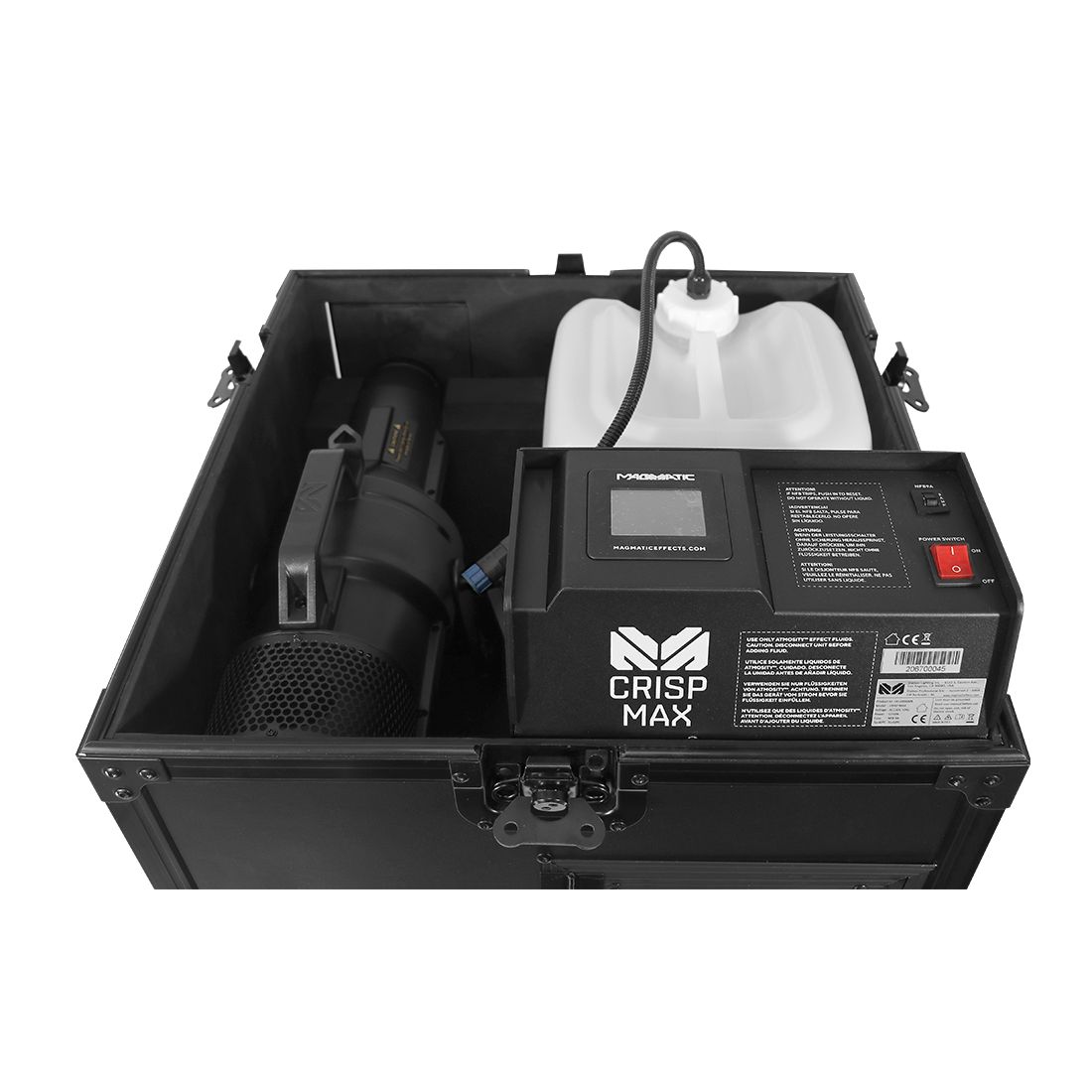

Snow cannon can remain inside road case to minimize noise level
IP Rating: IP20, dry location
DYNAMIC EFFECTS
Snow Adjustment: 0-100% Fan Speed Adjustment: 50% or 100%
Auto-Cleaning Feature
CONTROL
2 Card Inputs for optional cards
RDM (Remote Device Management)
Control Protocol: DMX 512
DMX Modes: 3 (1,3 and 5 channel)
On-Board Timing Control
5 Factory Presets

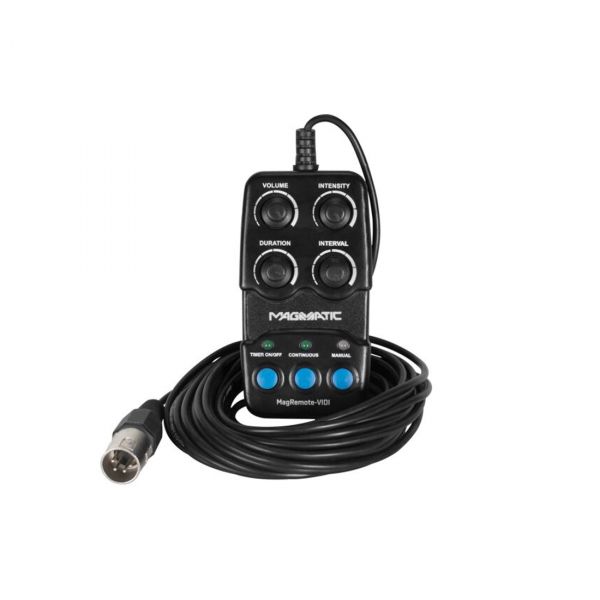

4-pin Wired Remote Input
Touch Screen Display
Manual Trigger via Touch Display
CONNECTIONS:
Data Connector: 5-pin XLR In / Out for DMX Connections, 4-pin XLR for Optional Wired Remote
Locking Power Connector
CONSTRUCTION / PHYSICAL / PERFORMANCE
Dimensions: (LxWxH) 540 x 535 x 623mm (21.3 x 21.1 x 24.5in)
Weight: 35kg (77.17lbs)
Fluid Tank Capacity: 20L
Fluid Consumption: 500ml/min (16.9 fl oz/min)
COMPATIBLE FLUID
Atmosity Premium Snow FluidModels: APS-4L, APS-20L
ELECTRICAL:
Power Consumption: 1250w
Input Voltage: 230V-240V, 50 & 60Hz
Breaker Size: 9A
CERTIFICATIONS / THERMAL
Maximum Temperature (Ambient): 40°C (104°F)Exterior Surface Temperature: 50°C (122°F)
WHAT'S INCLUDED:

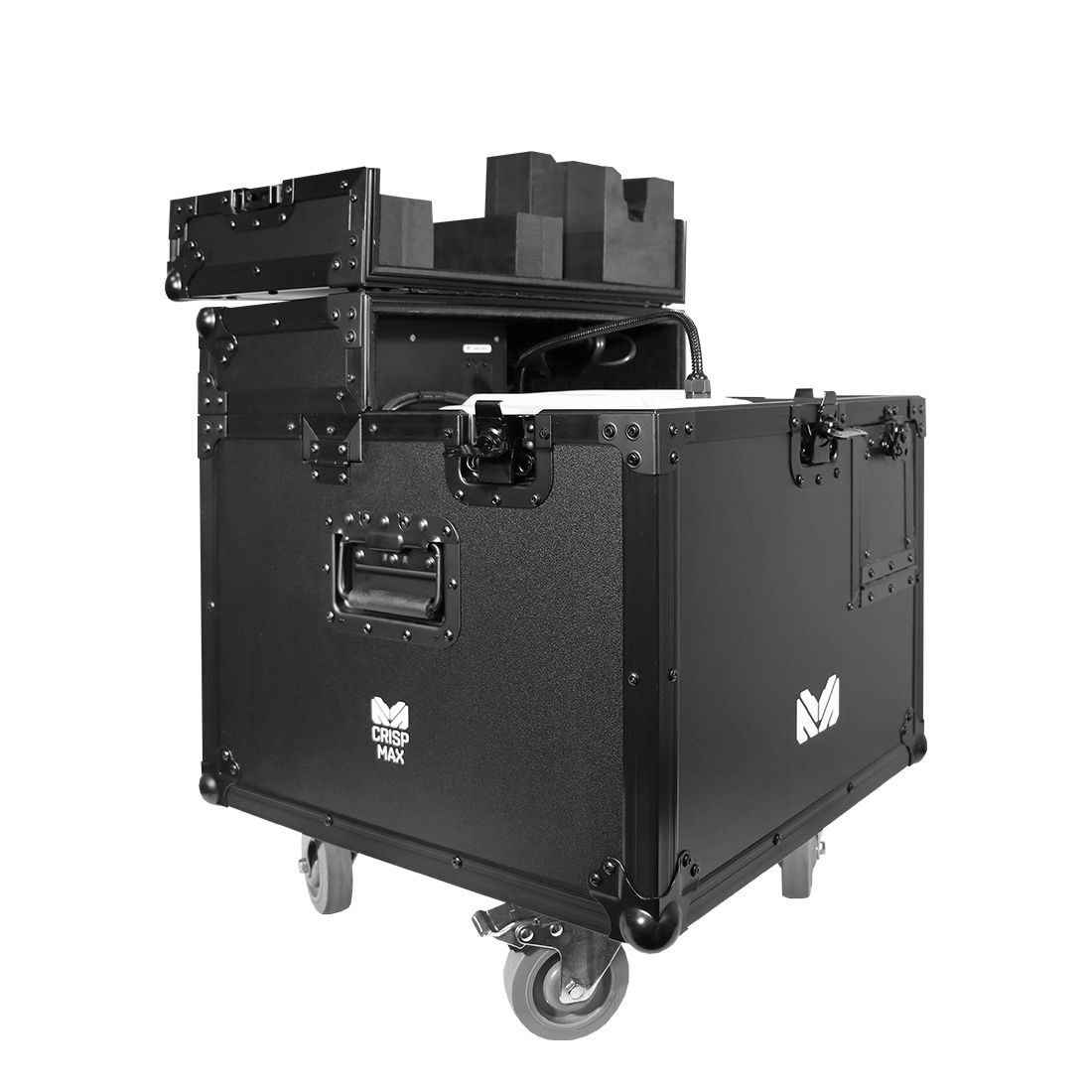

Flight Case
14AWG Locking Power Cable
Snow Canon

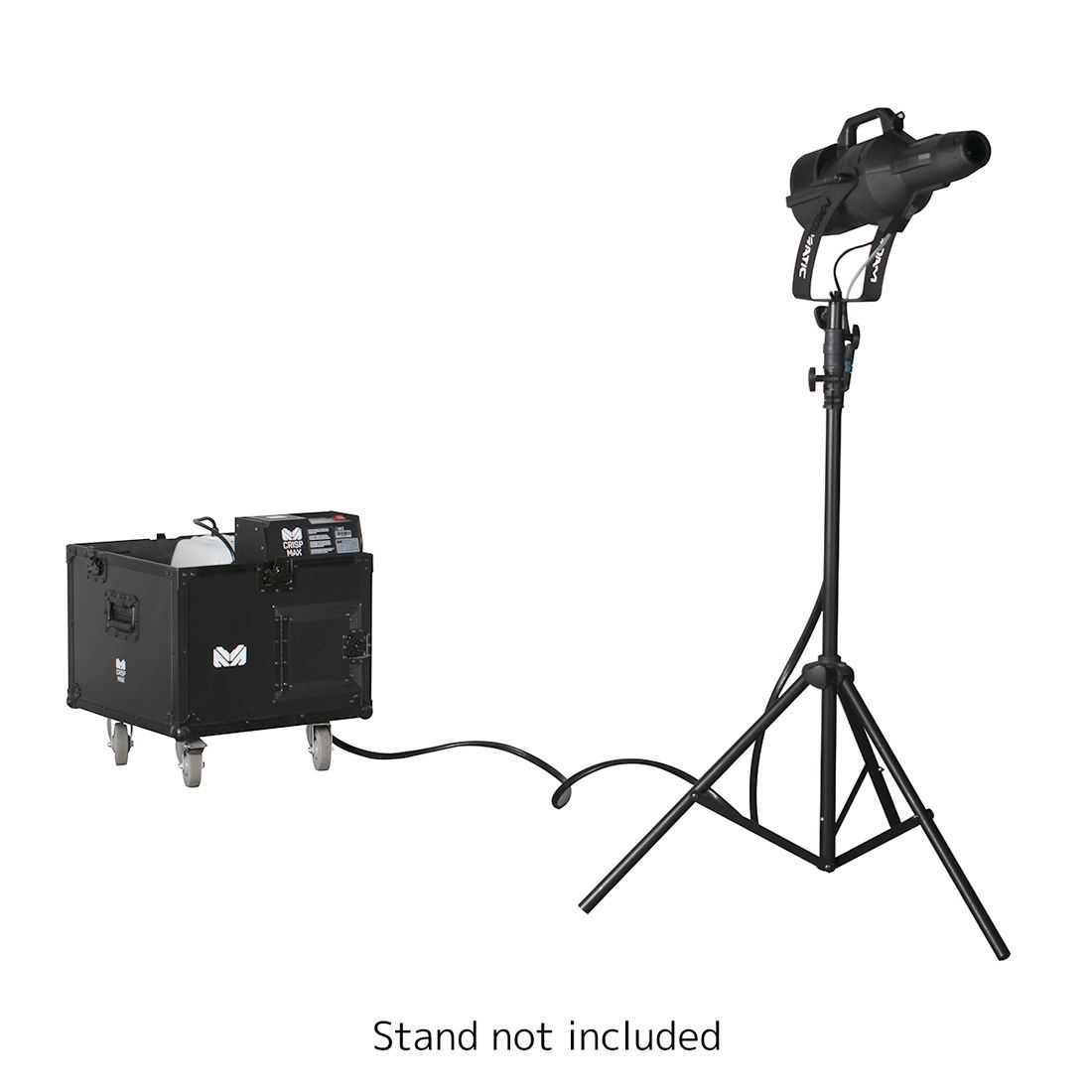

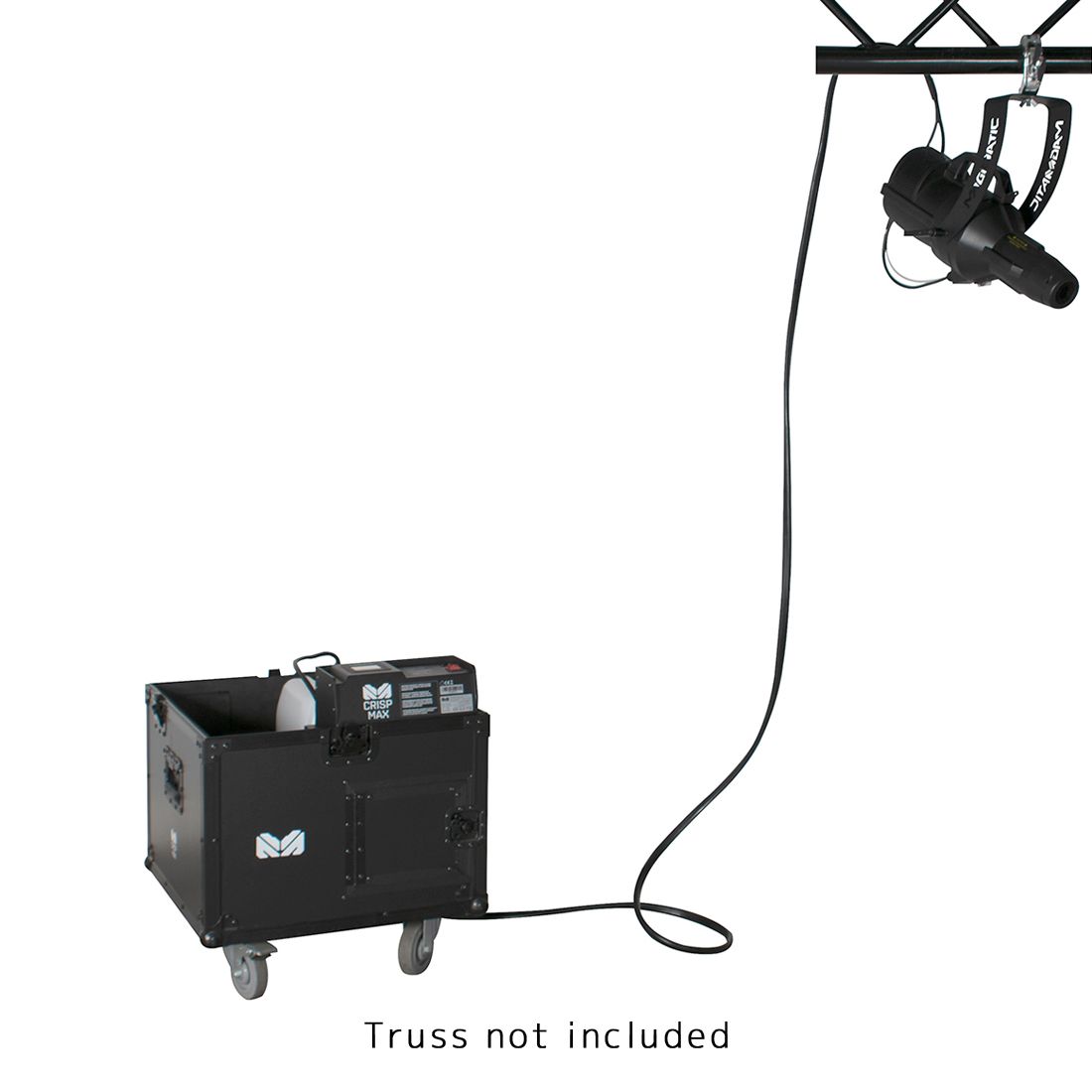

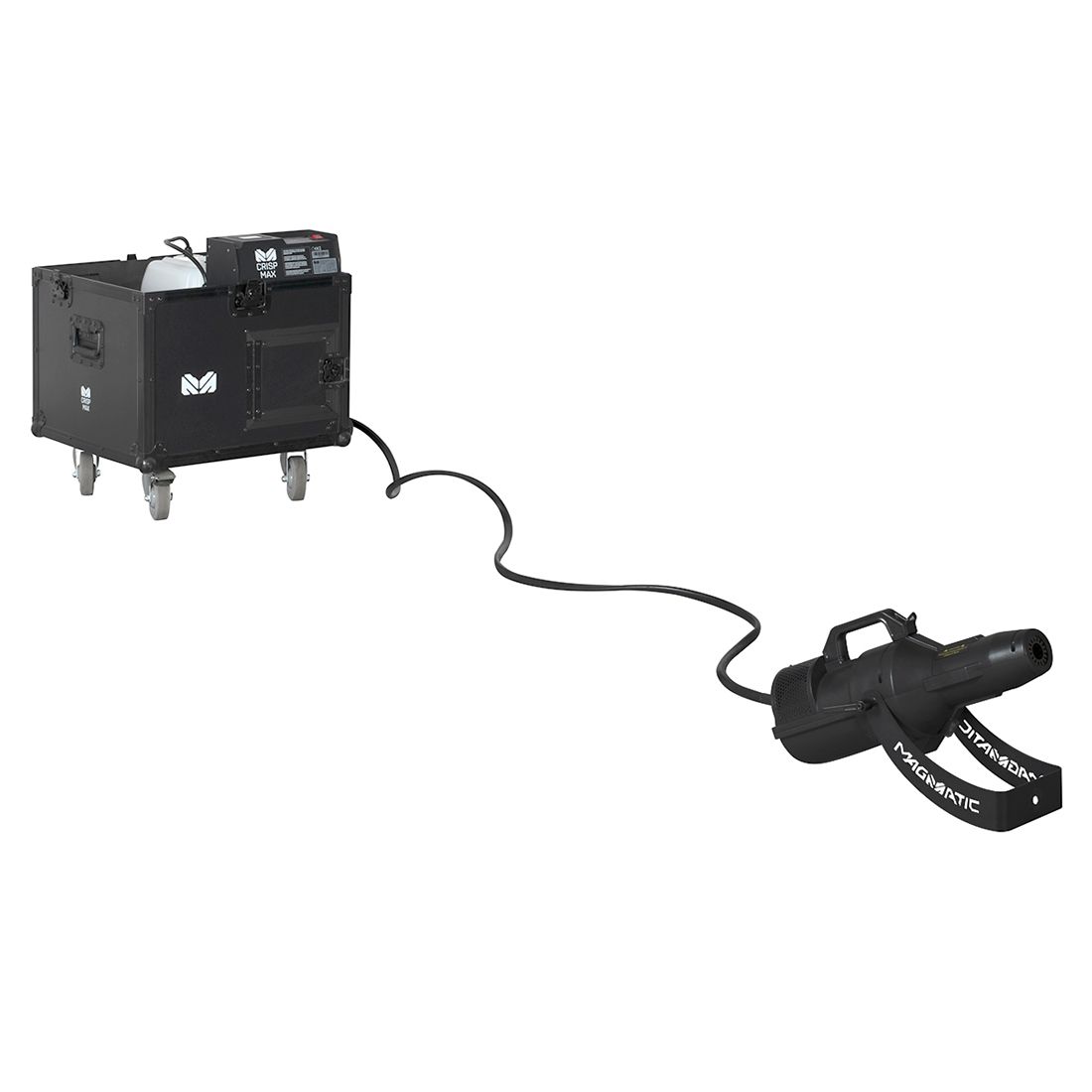

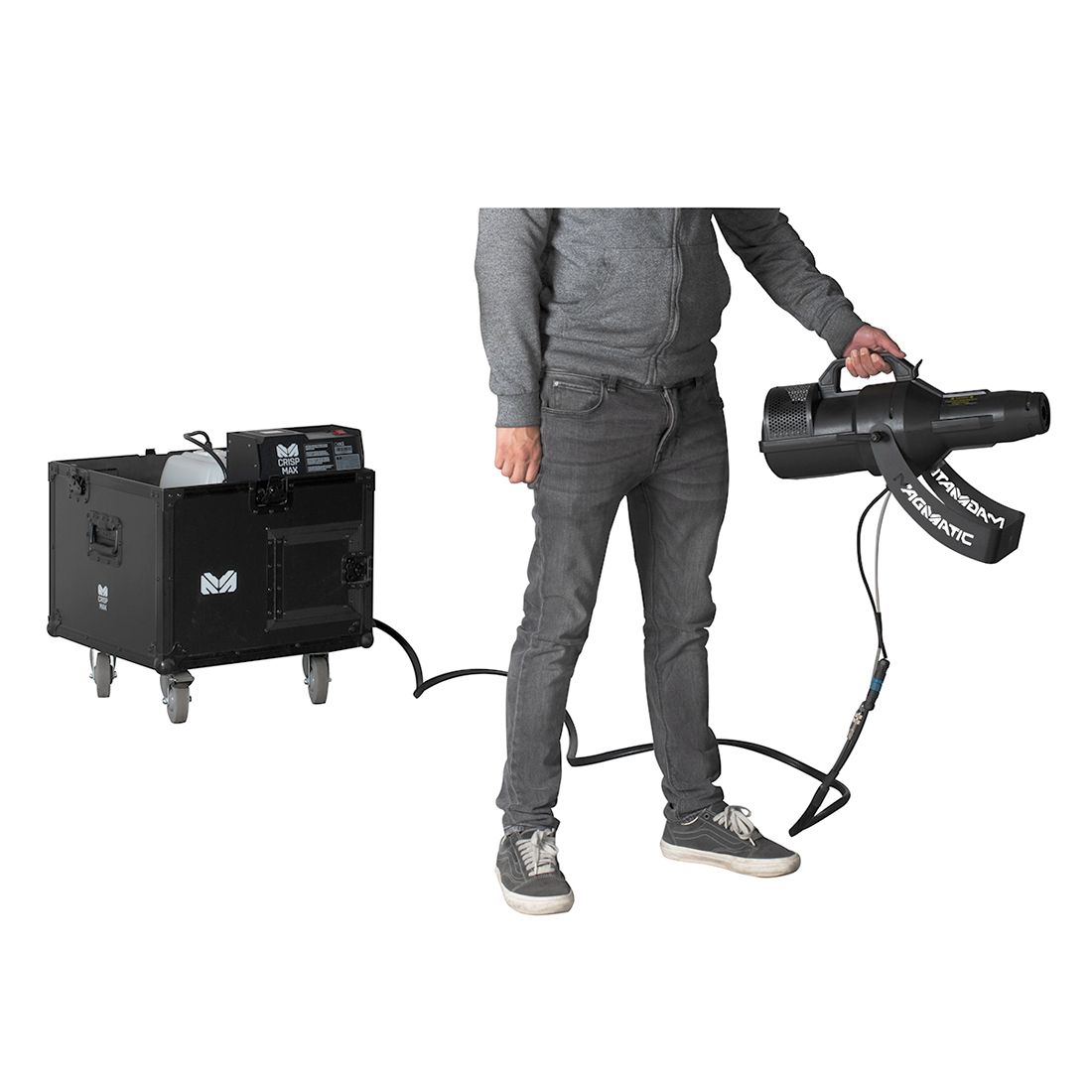

10-Meter Long Hose
OPTIONAL ACCESSORIES:
MagFLY Card
MagAPP Card "Still in development"
MagRF Card
PSCM Hose-10M
PM-DMX1
Specifications and documentation subject to change without notice
