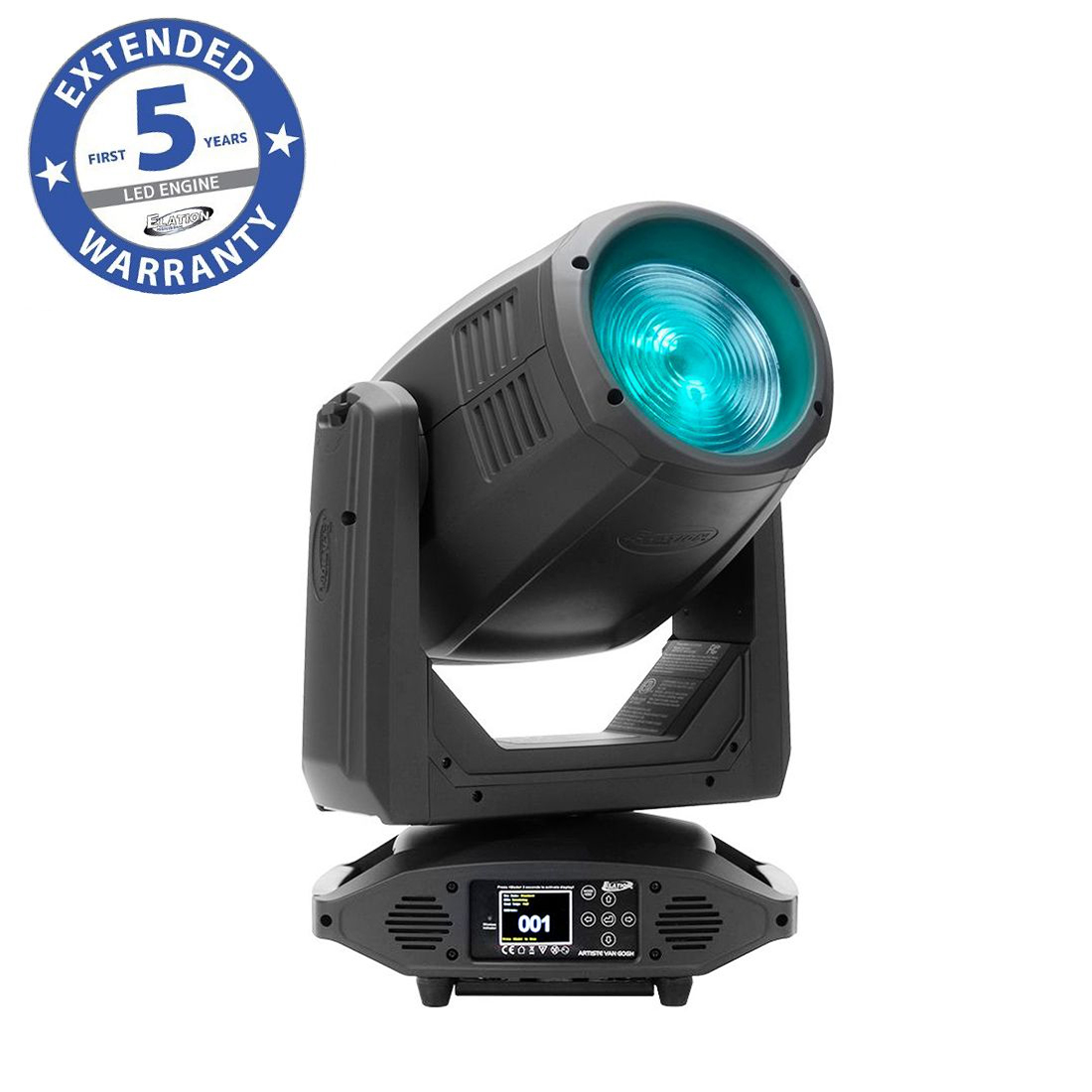

Artiste Van Gogh

The Artiste Van Gogh™ is a compact powerful framing Wash fixture with outstanding light quality. It is an ideal partner to the Profile fixtures in Elation’s Artiste fixture range.

Providing up to 16,000 total lumens from its efficient 380W 6,500K LED engine allows the fixture to be utilized in many applications. Due to its high 91 color rendering index and its whisper quiet operation it is ideally suited for Television, Theater and Corporate Events, or any application where powerful and even coverage is desired. Illuminating objects and people with precise color reproduction is the perfect application for the Artiste Van Gogh. A 16bit CMY color system with a seamless CTO filter offers the designer a wide color range from subtle pastels to vibrant primaries. A seven-position color wheel is provided for additional effects and includes a dedicated UV filter.

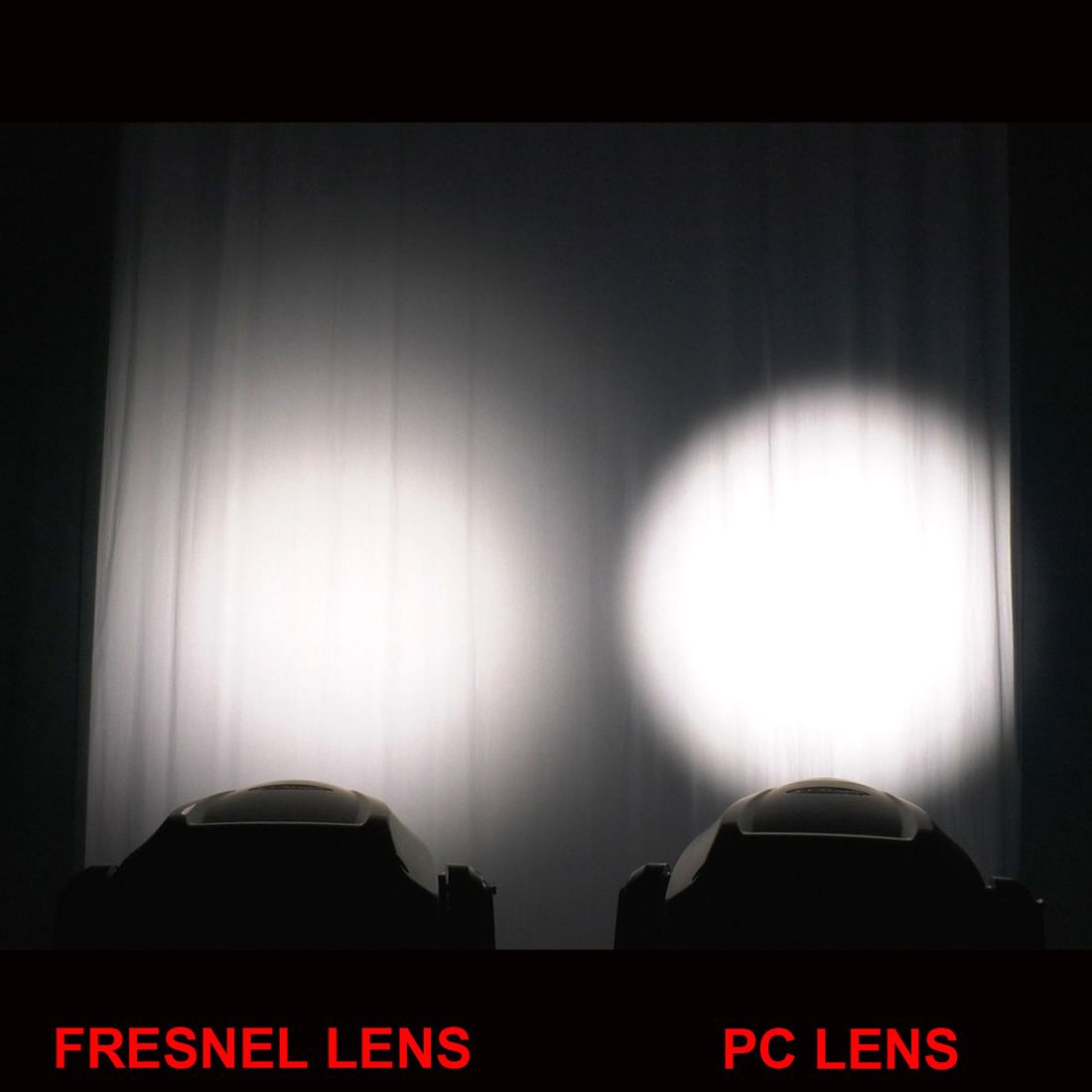

An integrated 4 blade barn door system allows for precise light control and beam shaping. The entire barn door assembly is indexable allowing the Van Gogh’s beam shaping system to be usable at any angle. With its wide zoom range and included interchangeable PC or Fresnel lens options, the Van Gogh is flexible for any distance and desired fields from concentrated light beams to wide and smooth washes. The additional frost filter can be added at any time for an extra layer of output smoothing.

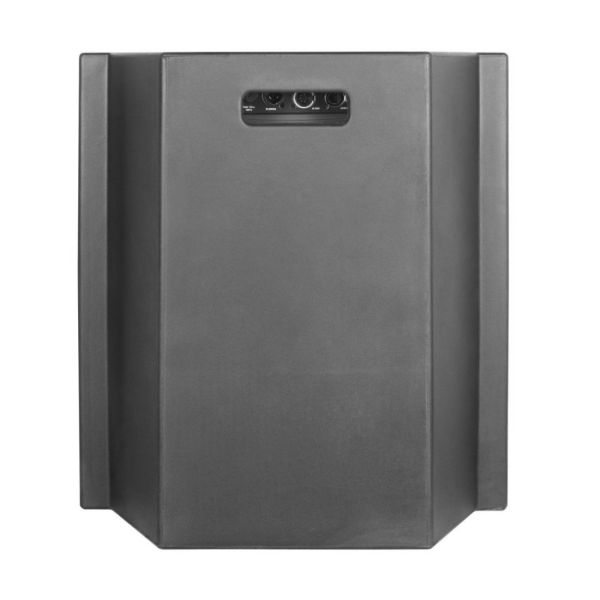

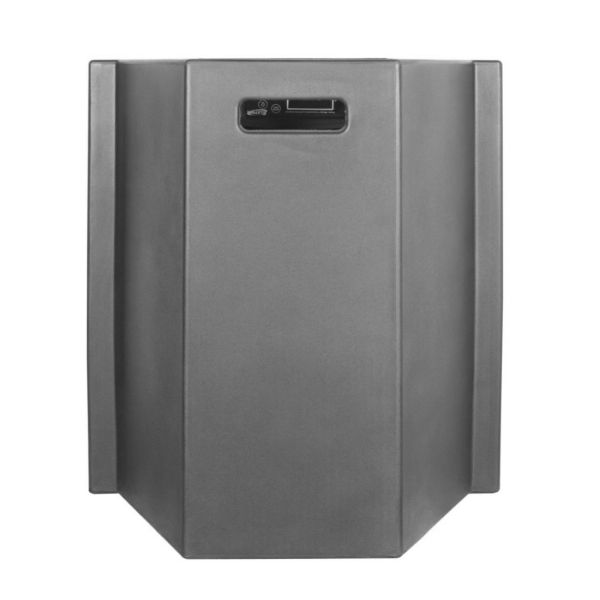

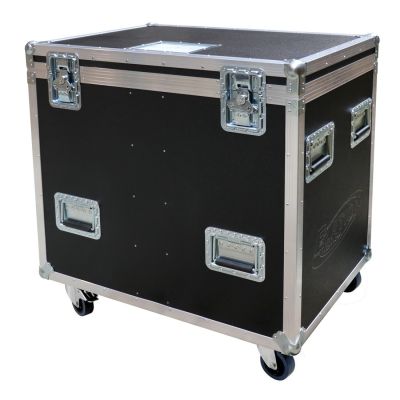

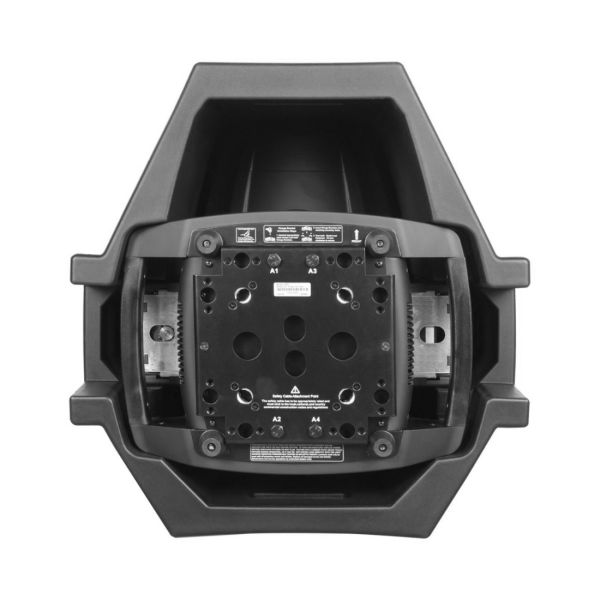

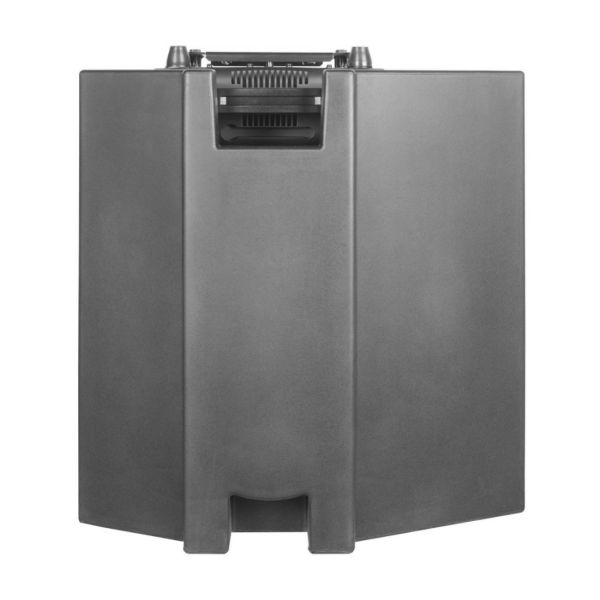

The Artiste Van Gogh™ fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into a custom sized flight case (not included) and provides enhanced impact protection during transport.



Technical Data

FEATURES

High Output Bright White LED Engine with excellent color rendition
CMY and CTO color mixing
7 Position Color Wheel

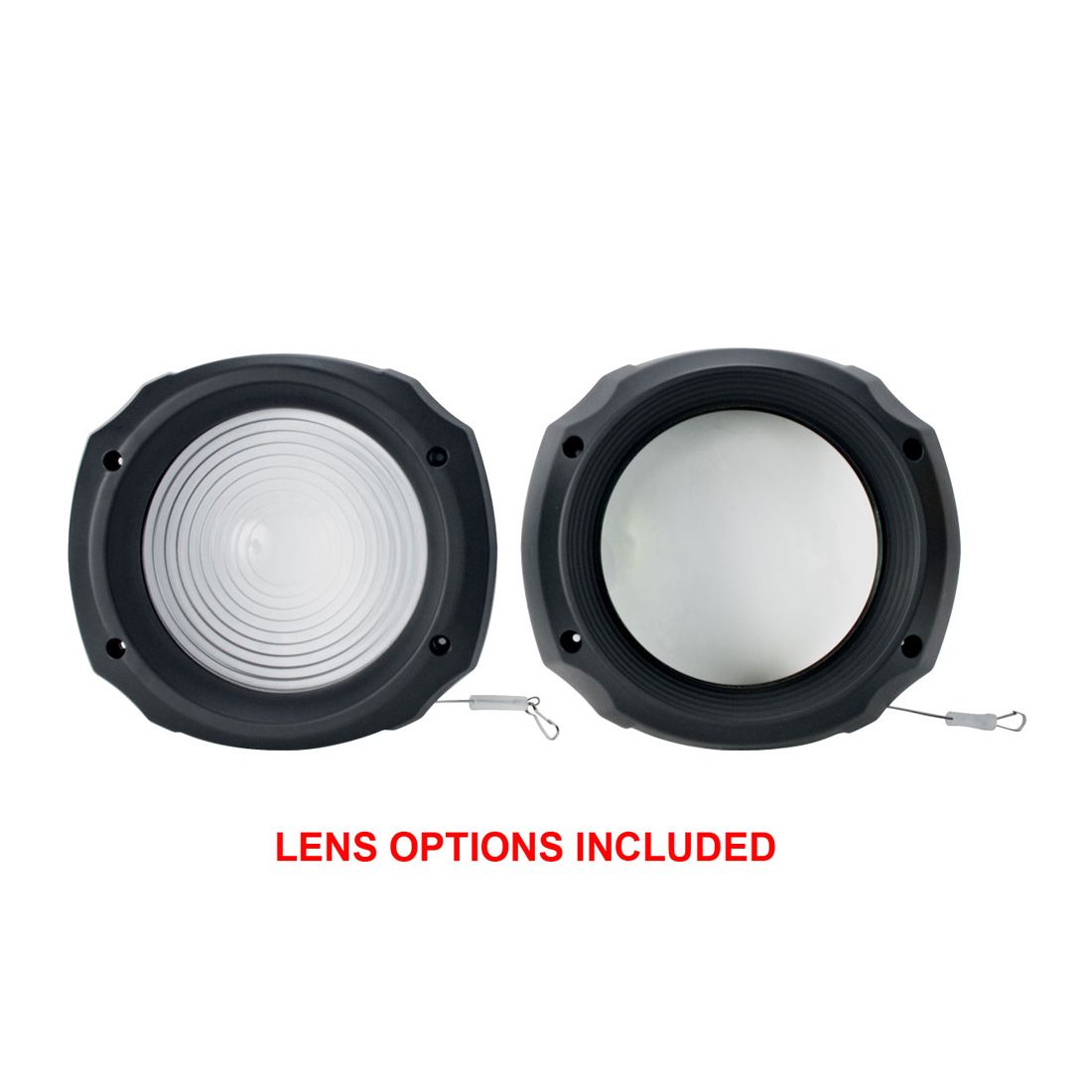

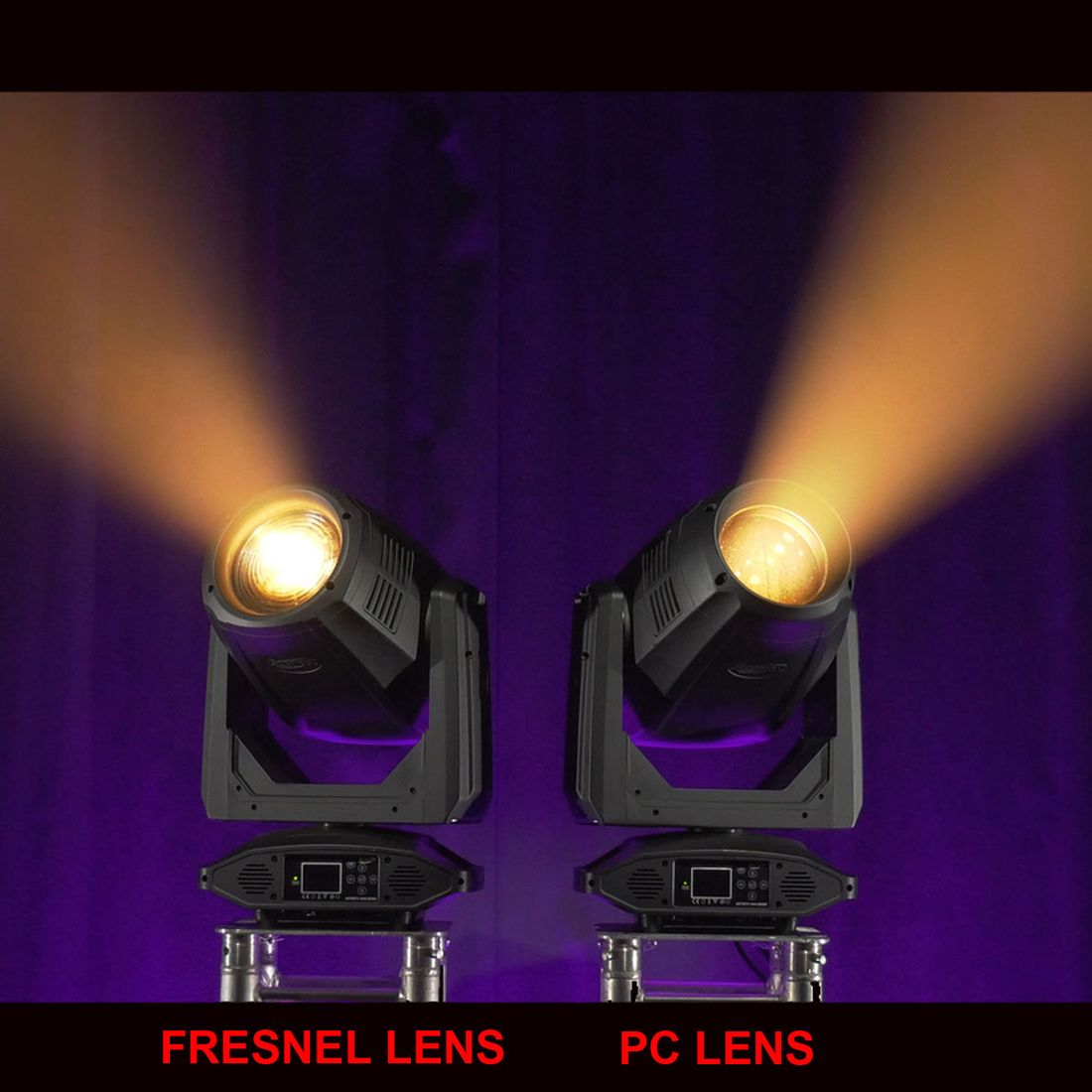

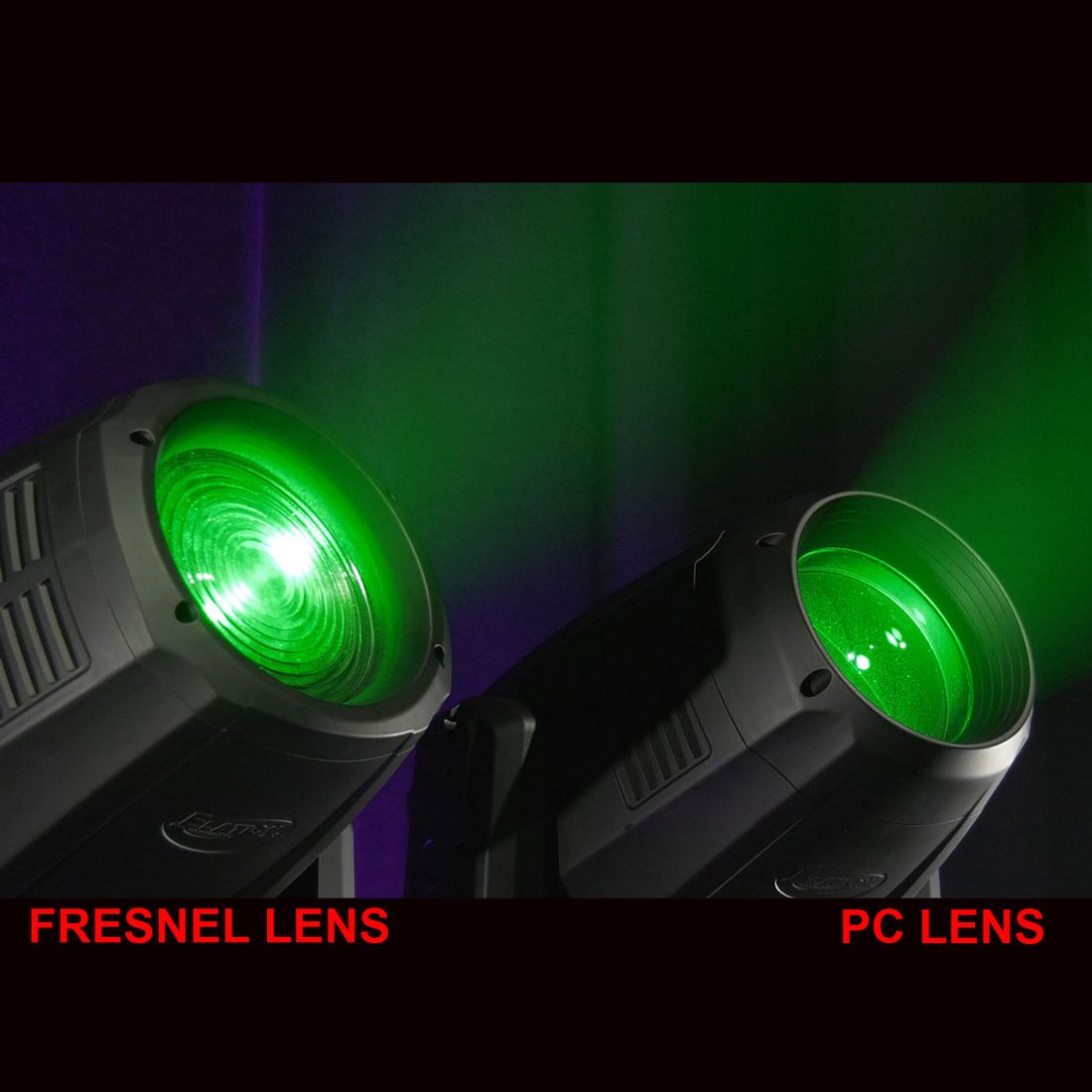

Interchangeable PC and Fresnel Lens options included for even washes and powerful illumination
Internal indexable barn door system for beam shaping and light control at any angle
Seamless Frost Filter
Silent and Cool Operation



SOURCE

380W 6,500K LED Engine
20,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

16,000 Total Output Lumen
CRI 91


Fresnel Lens


Zoom Range 11° - 66°
Beam Angle 7.5° - 45.2°
Field Angle 16.5° - 68.2°

PC Lens


Zoom Range 7° - 55°
Beam Angle 5.6° - 43.2°
Field Angle 7.1° - 58°



EFFECTS

Motorized Zoom
CMY+ CTO Color Mixing
7 Position Fixed Color Wheel including UV
4 Independent Barn Doors
Barn Door Index Adjustment
Frost Filter
Remote Focus Adjustment
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
Pan Angle: 540°/630°
Tilt Angle: 260°


CONTROL / CONNECTIONS

2 DMX Channel Modes (22 / 36 Channels)
DMX Adjustable Refresh Rate (900 -25,000 Hz)
(6) Button Touch Panel

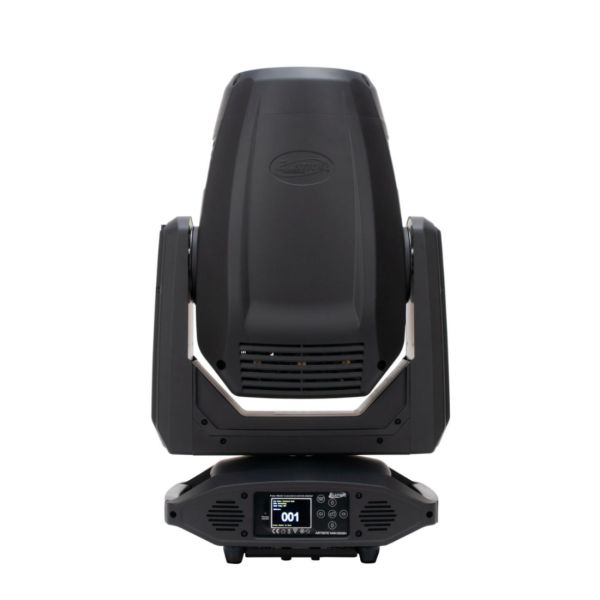

Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net, sACN Protocol Support

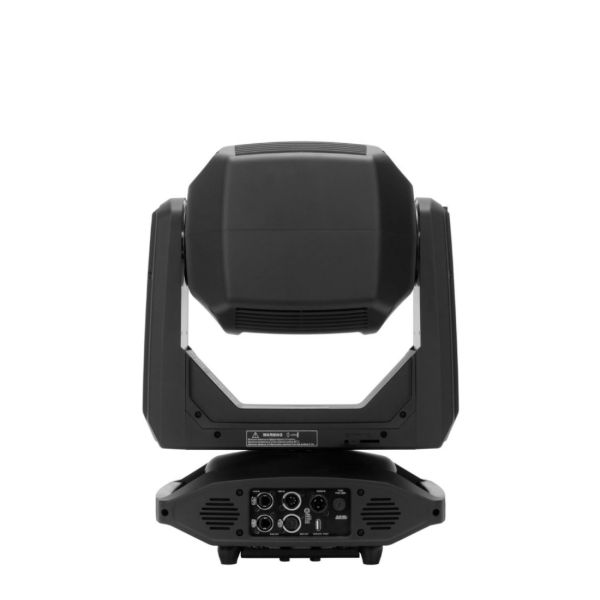

Locking 5pin XLR DMX, RJ45 Ethernet and Power
USB Connection (Firmware Updates)
With Wired Digital Communication Network


SIZE / WEIGHT

Length: 399.6mm (15.73 in)
Width: 447.3mm (17.61 in) (Fresnel Lens)
Height: 669mm (26.34 in)
Center Spacing: 609mm (24.0 in)
Weight: 28.5kg (62.8 lbs.)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
600W Max Power Consumption

-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 2046

FIRMWARE UPDATES

Current firmware can be found here (login required)



Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan Cyan
 Magenta Magenta
 Yellow Yellow
 C.T.O. C.T.O.
Color Wheel
Green Green
 Red Red
 Dark Blue Dark Blue
 Orange Orange
 UV UV
 CTB CTB
 Pink Pink
Framing
Endless Rotation
