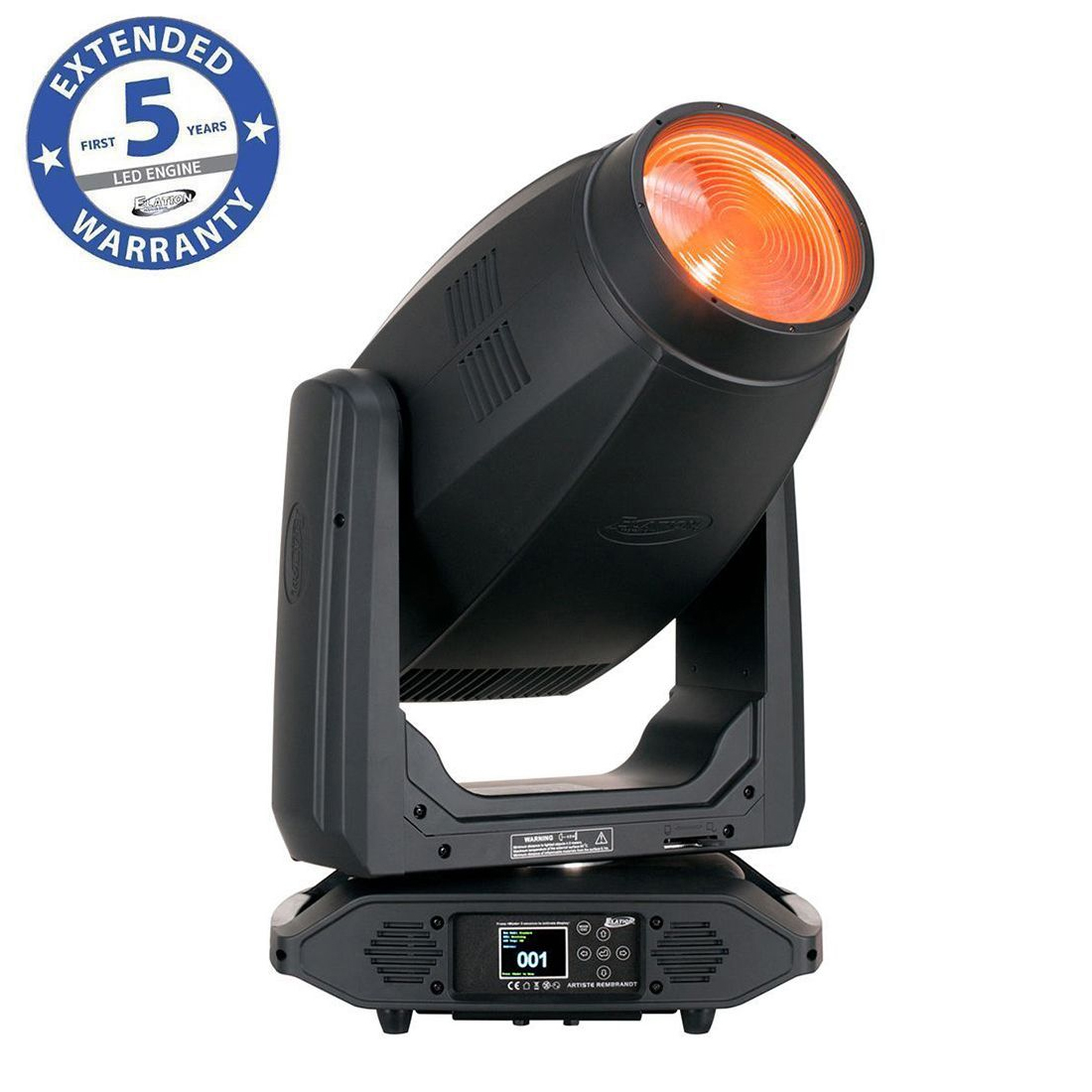

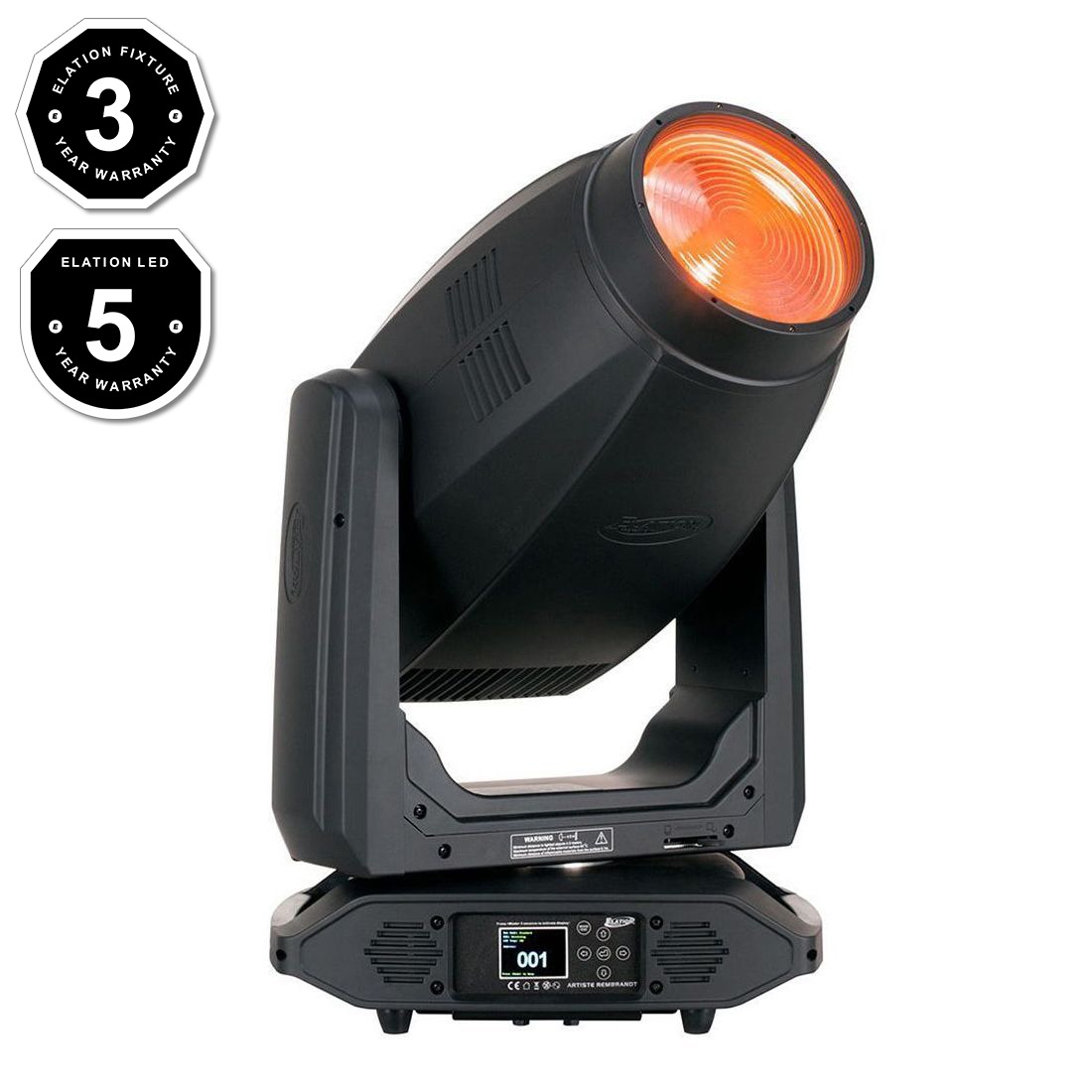

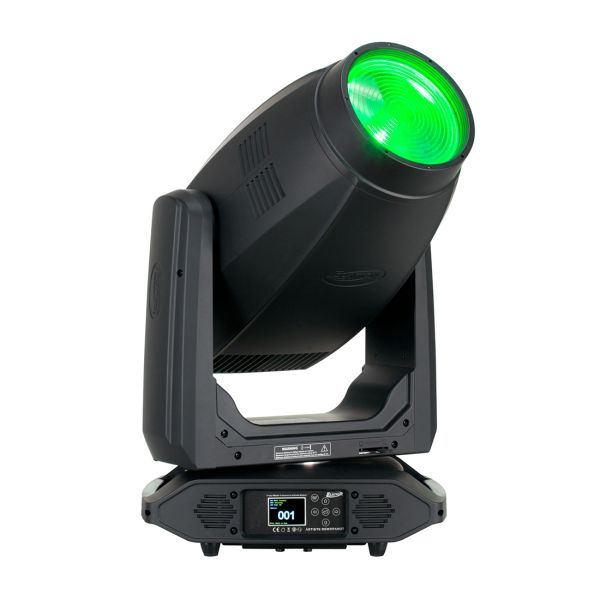

Artiste Rembrandt

The Artiste Rembrandt™ is an extremely bright, full-featured LED Wash fixture offering outstanding output, optimized wash field and a wide color-mixing gamut through its variable SpectraColor engine.

Providing up to 51,000 lumens from its efficient 950W 6,500K LED engine, the Rembrandt is the ideal fixture for any application requiring superior wash output, bright and powerful beams, and quiet operation, as well as stunning colors. Rembrandt integrates Elation's new SpectraColor system, which offers traditional CMY mixing but adds a variable RGB color mix for rich saturated primaries. In combination with the variable CTO, the Rembrandt allows for colors that were previously impossible to achieve, from theatrical pastels to the most vibrant red or blues ever produced by a color mixing system. The wide color gamut of the Artiste Rembrandt is achieved by seven color-mixing flags with 16-bit precision for artistic possibilities that are truly inspiring. The fixed color wheel offers UV and high CRI options to round out the amazing color range of the fixture.

The internal full-blackout framing system provides precise control when highlighting set pieces and performers while eliminating any light spill. Designers can also use the flexible framing system to create outstanding projection and mid-air effects, and DMX controllable variable fan modes offer low noise operation for noise sensitive environments.

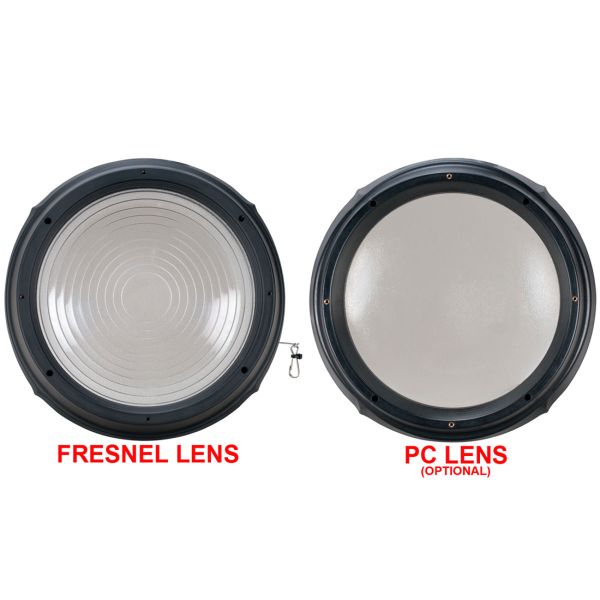

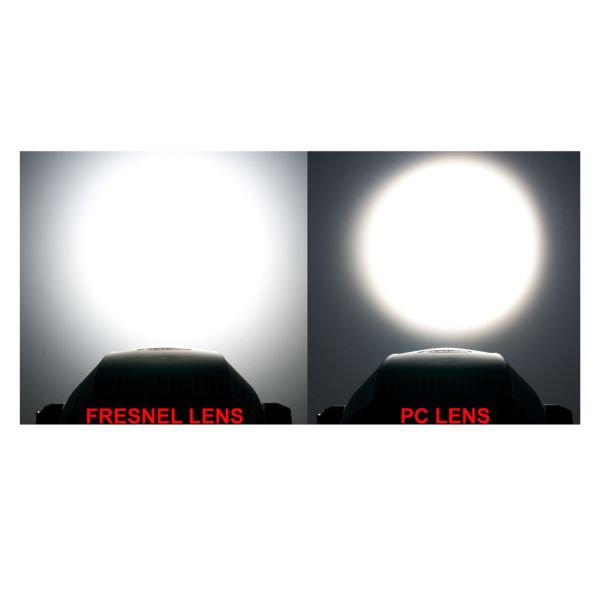

With a fast zoom range from 11° to 55° and an impressive 180mm front lens, the Rembrandt has the power to cut through at even great distances in arena touring environments or large TV or theater stages. The traditional Fresnel lens is interchangeable with a Pebble Convex lens, providing a tighter beam angle and higher center intensity for long throws or beam applications.

Additionally, the Artiste Rembrandt incorporates an innovative wash texture concept that gives the designer new tools to wash stages while providing soft textures and depth. Two independent animation wheels allow for directional motion, including overlapping and counter-rotating motion effects that are unique to the fixture. Combined with the incredible output and stunning SpectraColors, the Rembrandt is a surprisingly versatile luminaire for a wide range of applications.

The Artiste Rembrandt ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert. The foam insert easily fits into a custom flight case (not included) and provides enhanced impact protection during transport.

Technical Data

FEATURES

High Efficiency 950W 6,500K White LED Engine
Peak Field Engine for Optimized Wash Field / High Center Intensity
Up to 51,000 Total Lumen Fixture Output
SpectraColor CMYRGB Array and Variable Linear CTO
6-Position Color Wheel, High CRI, UV Filter
Wash Beam Animation Array with 2 Independent Wheels
Dual Variable Frost
Full Blackout Framing System with 360° Continuous Index and Rotation of Shapes
11° to 55° Zoom Range |  Large 180mm Fresnel lens

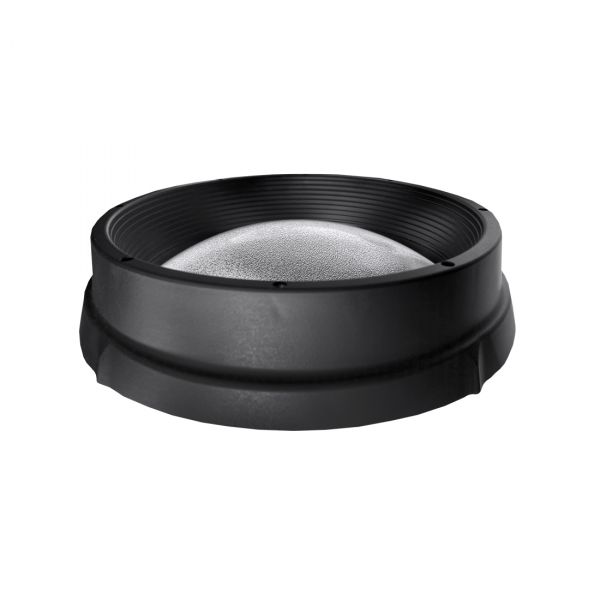

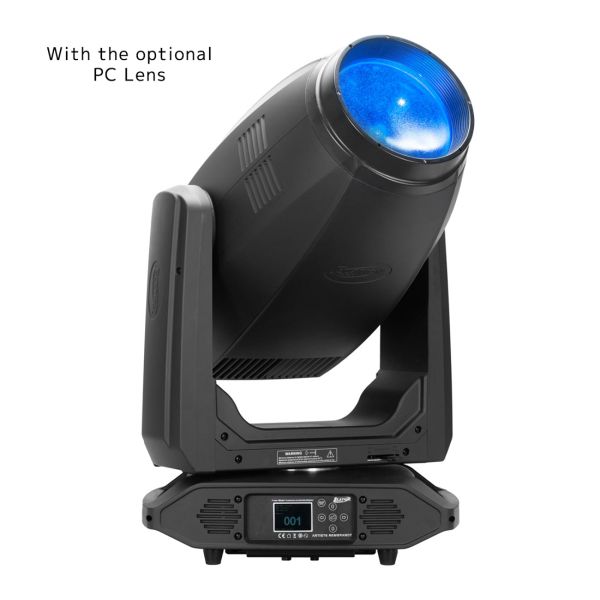

Optional Pebble Convex (Stipple PC) Lens
DMX Controllable Variable Fan Modes / Low Noise Operation


SPECIFICATIONS

SOURCE

950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

51,000 Total Lumen Fixture Output
CRI 72+ (85+ with HCRI filter)

Fresnel


Zoom Range 11° - 55°
Beam Angle 6.1° - 43.1°
Field Angle 51.9° - 64.9°

PC (optional)


Zoom Range 8° - 50°
Beam Angle 6.5° - 45°
Field Angle 10.8° - 75.7°

EFFECTS

Motorized Zoom
4 Full Blackout Framing Blades
360° Framing Index - Continuous Framing Rotation
2 Variable Frost Filters (Medium, Heavy)
2 Bi-Directional Animation Wheels
High Speed Iris
Variable 16-bit Dimming Curve Modes
Focus Edge Control
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency
Pan Angle: 540°/630°
Tilt Angle: 250°

COLOR

6 Dichroic Colors including High CRI Filter, UV
SpectraColor CMY + RGB color mixing array
Linear CTO Color Correction

CONTROL / CONNECTIONS

2 DMX Channel Modes (35/59 Ch.)
16-bit Pan, Tilt, and Dimming Control
DMX, RDM, Art-NET, and sACN Protocol Support
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)

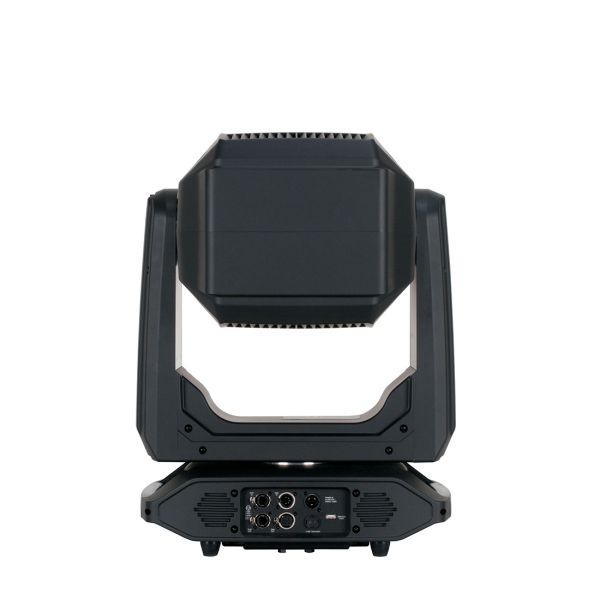

Locking 5pin XLR DMX, RJ45 Ethernet and Power
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 471mm (18.54 in)
Width: 334mm (13.11 in)
Vertical Height (Fresnel Lens): 805mm (31.69 in)
Vertical Height (optional PC Lens): 795mm (31.3 in)
Center Spacing (Fresnel Lens): 773mm (30.4 in.)
Center Spacing (Optional Lens): 741mm (29.2 in.)
Weight: 43 kg (94.7lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
1300W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 4433

OPTIONAL ACCESSORIES

1237000248- PC Lens (See below in Related Products)

FIRMWARE UPDATES

Current firmware can be found here (login required)


Specifications and documentation subject to change without notice

COLORS AND GOBOS

Color Flags
Cyan Cyan
 Magenta Magenta
 Yellow Yellow
 C.T.O. C.T.O.
 Red Red
 Green Green
 Blue Blue
Color Wheel
Green Green
 Red Red
 Blue Blue
 Orange Orange
 UV UV
 High CRI High CRI
Animation Wheel
Animation Wheel 4
 Animation Wheel 5
Framing
Endless Rotation
