FEATURES

Unlock the potential of your lighting setups with our cutting-edge wireless DMX / fixture management controller. Designed for maximum versatility and convenience, this controller boasts a single DMX universe and supports multiple connectivity options including 900MHz, 2.4 GHz WiFi, and Bluetooth, providing seamless integration with a variety of lighting fixtures. Configuring your lighting setup has never been easier, with options for configuration via a forthcoming app or through the intuitive front panel interface. Its robust IP65 housing ensures durability, allowing you to confidently use it in both indoor and outdoor environments without worry.

Supported protocols include DMX (with RDM planned for future software updates), Bluetooth 5.2, our proprietary Aria X2 Mesh Protocol, and Aria X2 Serial Protocol, offering unparalleled compatibility and flexibility. Equipped with advanced RF characteristics such as interference mitigation through CSMA and adaptive frequency hopping, as well as OTA updates, this controller ensures reliable performance in any environment. For seamless connectivity, the controller features 900MHz and 2.4GHz antennas, along with DMX 5-pin XLR input and output, and an outdoor locking power input and output. Power is no issue with universal AC100-240V compatibility and minimal power consumption of 2.2W, ensuring efficient operation. Safety features include a T1.25A/250V power fuse.

Built to withstand the rigors of professional use, the controller features an IP65 enclosure, front panel digital screen, and M12 threads for secure mounting. With a max ambient operating temperature range of -4°F to 113°F (-20°C to 45°C) and a maximum operating humidity of

Compact yet robust, the controller measures 6.46" (163.95mm) in length, 8.48" (215.30mm) in width, and 1.66" (42mm) in height, weighing just 2.7lbs (1.23kgs). Experience the future of lighting control and fixture management with our Aria X2 IPC wireless DMX controller.



Features:

Single DMX Universe
Sub-GHz, 2.4 GHz WiFi and Bluetooth
Configuration via App (Coming Soon) or Front panel
Wireless to DMX or DMX to Wireless
IP65 Housing

Supported Protocols:

DMX
RDM (Planned for future software release)
Proprietary 802.15.4
Aria X2 Mesh Protocol
Bluetooth 5.2 (BLE)
Aria X2 Serial Protocol
This is our proprietary serial protocol for communicating with a variety of fixtures.

RF Characteristics:

Frequency range
2404-2480 MHz
863-870 MHz (EU)
902-928 MHz (US)
Radio module: Aria X2
Interference mitigation
CSMA
Adaptive frequency hopping (on the roadmap)
OTA updates

Standards:

Health
EN IEC 62311:2020
EN50665:2017
BS EN IEC 62311:2020
BS EN 50665:2017
Safety
EN IEC 62368-1: 2020+A11:2020
BS EN IEC 62368-1: 2020+A11:2020
EMC
ETSI EN 301 489-1 V2.2.3 (2019-11)
ETSI EN 301 489-3 V2.3.2 (2023-01)
ETSI EN 301 489-17 V3.2.4 (2020-09)
EN 55032:2015/A1:2020
EN 55035:2017/A11:2020
EN 61000-3-3:2013/A2:2021
EN IEC 61000-3-2:2019/A1:2021
BS EN 55032:2015/A1:2020
BS EN 55035:2017/A11:2020
BS EN 61000-3-3:2013/A2:2021
BS EN IEC 61000-3-2:2019/A1:2021
Radio
EN 300 220-1 V 3.1.1 (2017-02)
EN 300 220-2 V 3.2.1 (2018-06)
ETSI EN 300 328 V2.2.2 (2019-07)

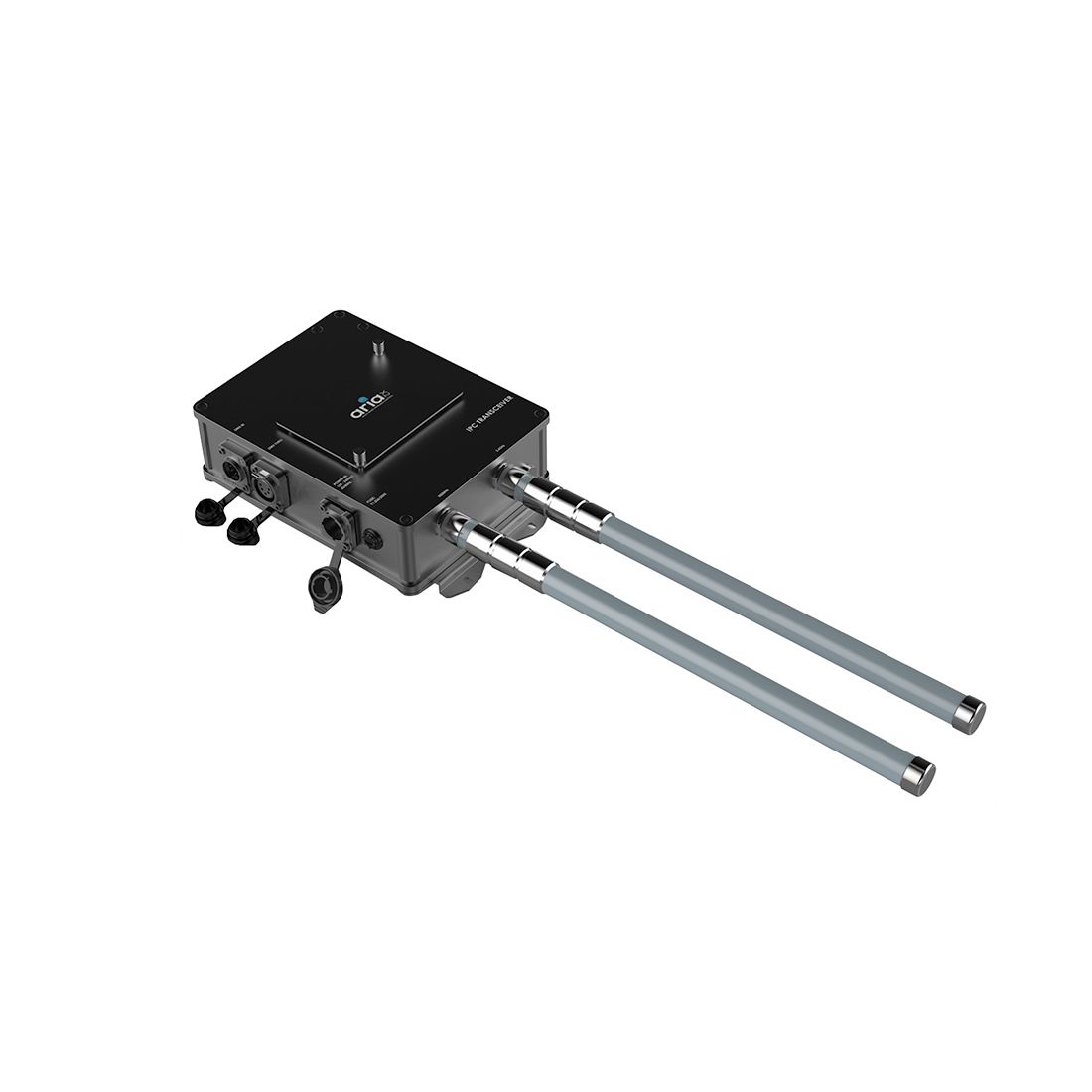

Connectors:

900MHz Antenna
2.4GHz Antenna

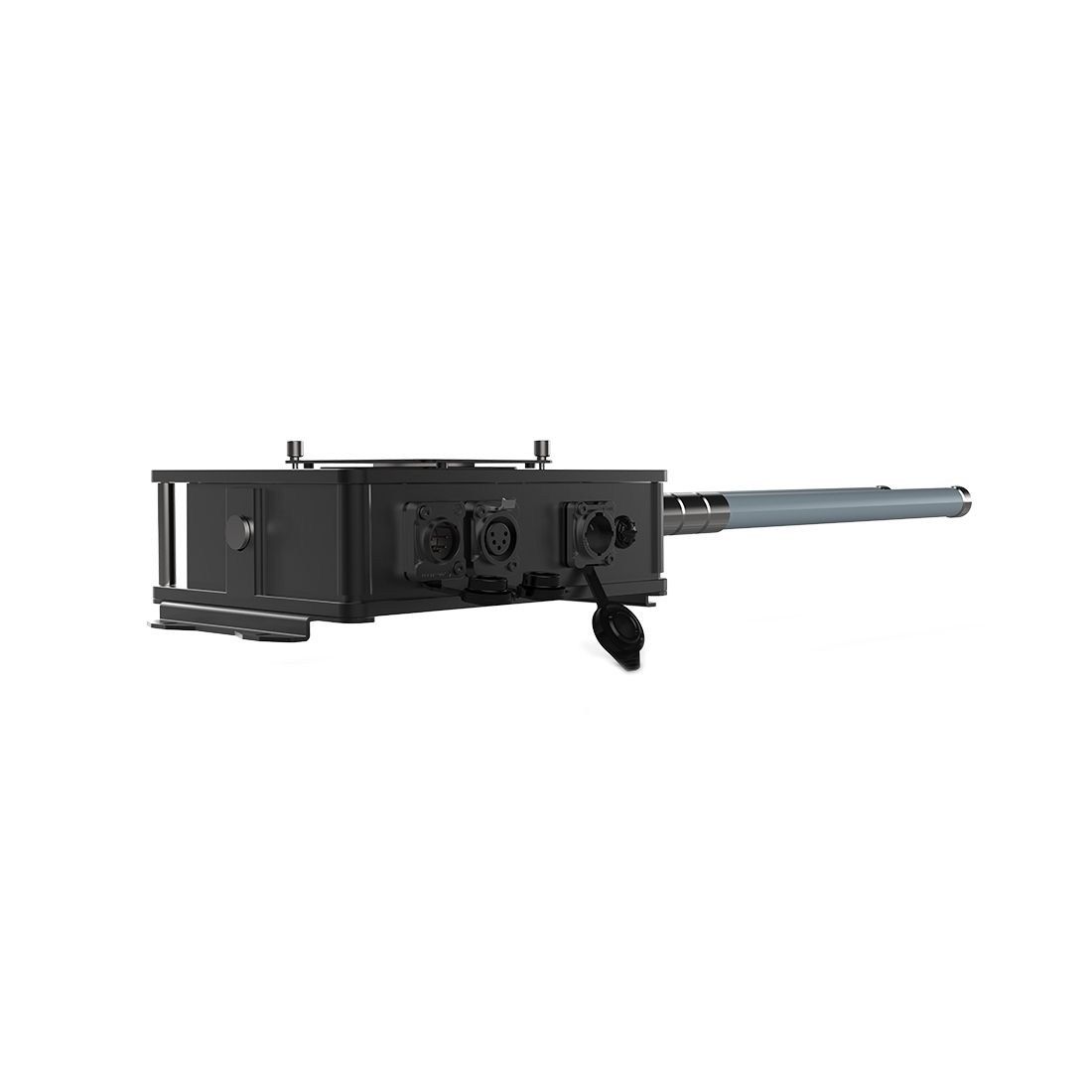

DMX: 5-pin XLR Input and Output
Outdoor Locking Power Input and Output

Power:

Power Input: AC100-240V 50/60Hz
Power Consumption: 2.2W (19mA) @ 120V/60Hz, 2.2W (10mA) @ 230V/50Hz
Power Fuse: T1.25A/250V. (5 x 20mm)

Physical:

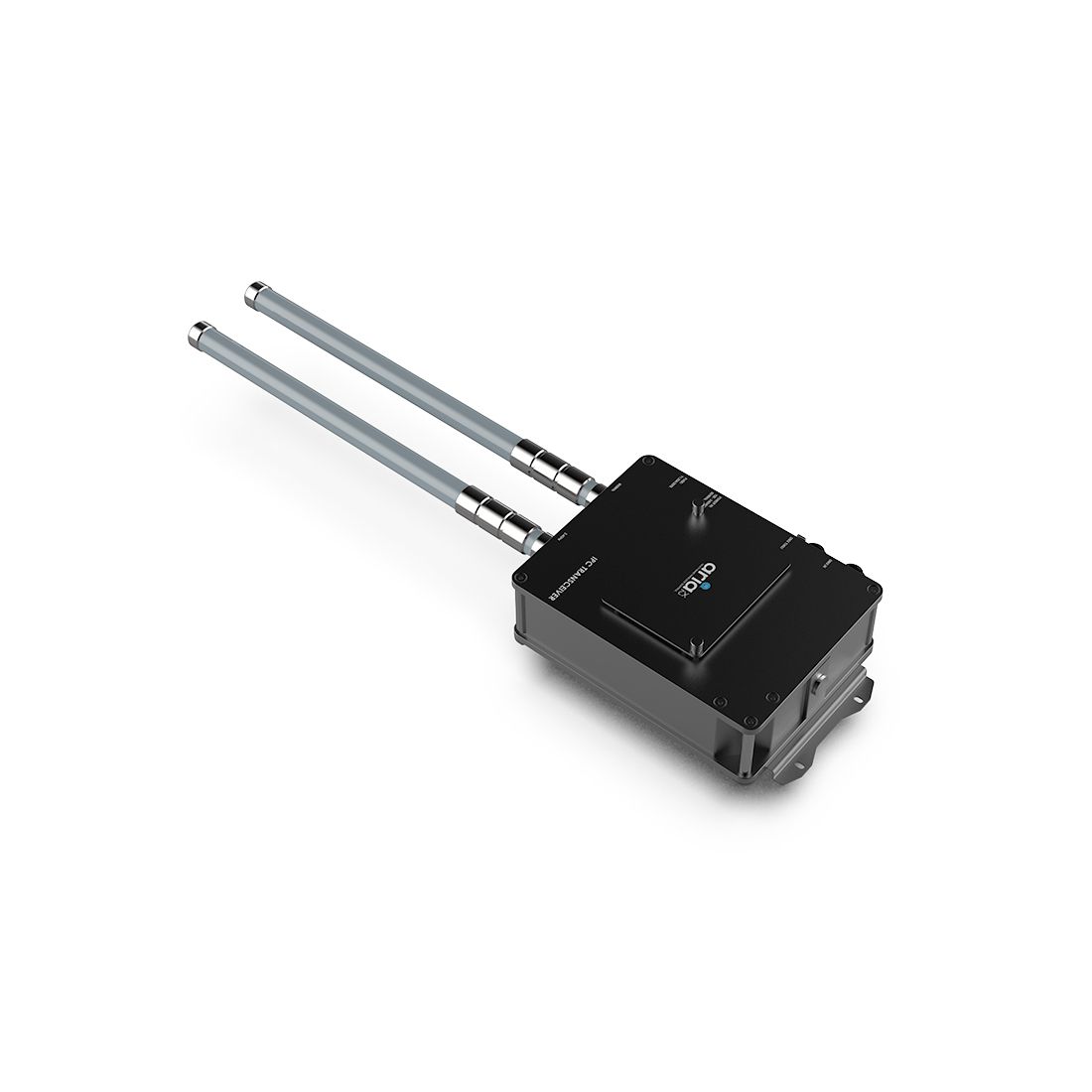

IP65 Enclosure
Front panel digital screen

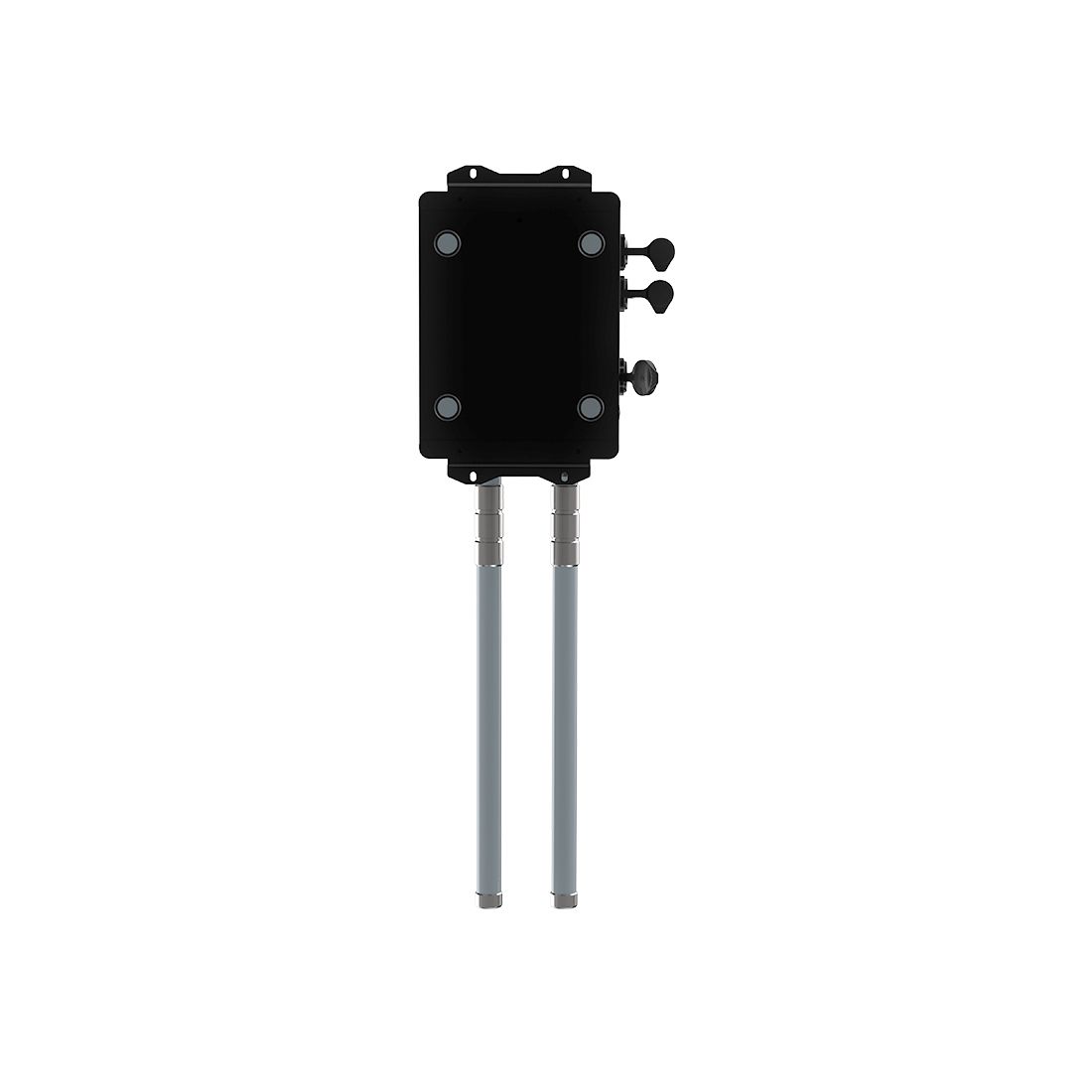

M12 Threads
Max ambient operating temp range: -4°F to 113°F (-20°C to 45°C)
Max operating humidity: <75%
Storage temperature: 77°F (25°C)

Dimensions and Weight:

Length: 163.95mm (6.46")
Width: 215.30mm (8.48")
Height: 42mm (1.66")
1.23kgs (2.7lbs)
