  • Arena Zoom Q7IP
Code 1236100138

Arena Zoom Q7IP

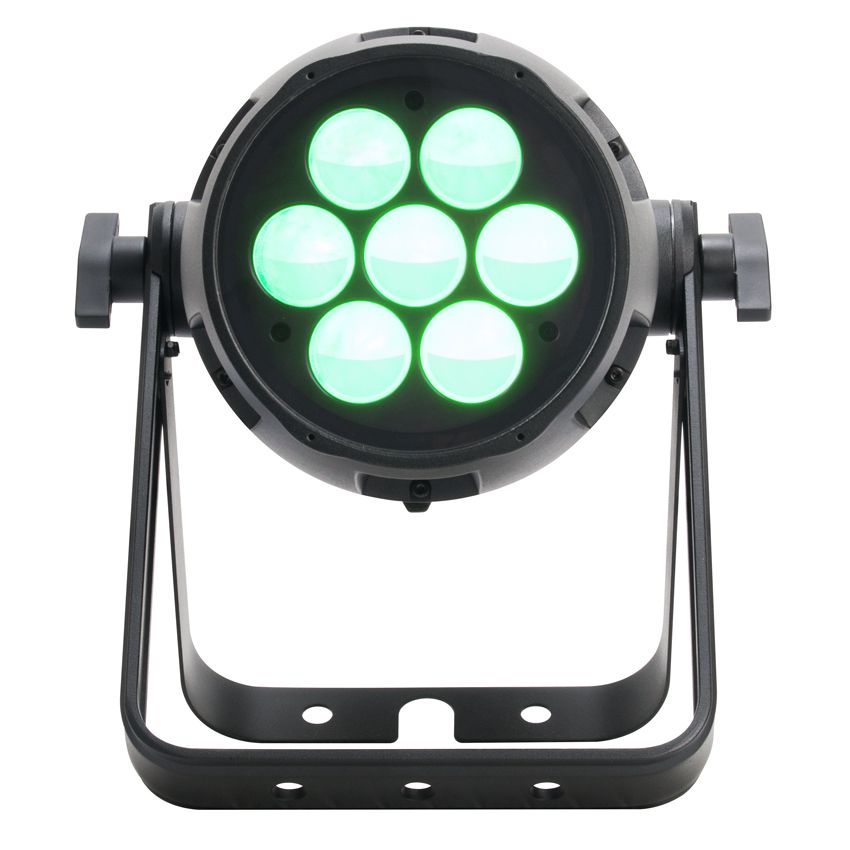

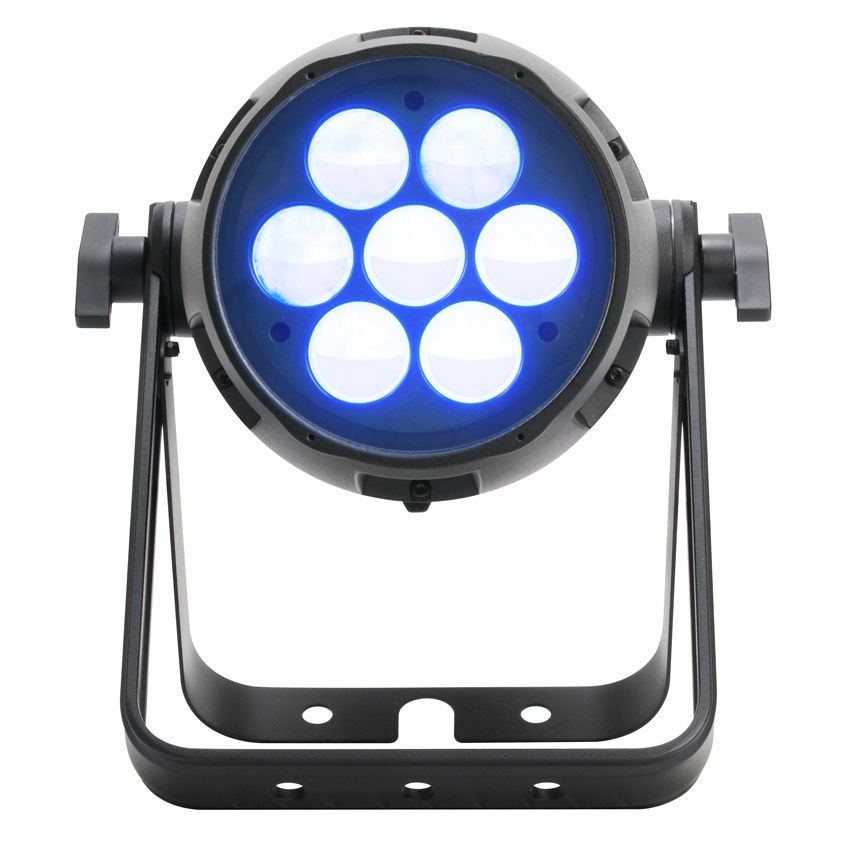

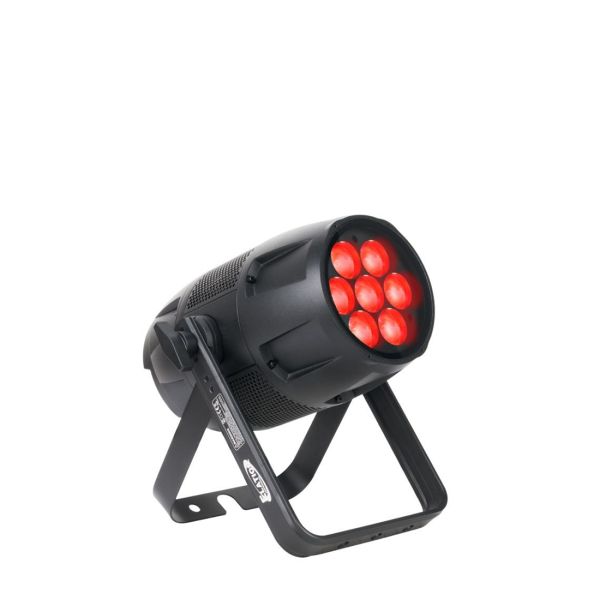

The ARENA ZOOM Q7IP™ an IP65 outdoor rated par fixture featuring (7) 30W Osram™ Multichip RGBW LEDs, 7° to 40° motorized zoom, smooth color mixing, 38 color macros and variable speed macro effects, RGB white balance calibration, variable 3,200-10,000K color temperatures, selectable dimming curve effects, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX and RDM (remote device management) protocol support, IP rated 5pin DMX and Locking Power Cable in/out connections, 4 Button 180° Reversible OLED Menu Control Display, integrated dual rigging yoke/floor stand, a durable die-cast housing, multiple unit power linkable, and a multi-voltage universal auto switching power supply (100-240v).

Technical Data

FEATURES

IP65 Outdoor Rated Par Wash Luminaire
(7) 30W Osram™ Quad-Color RGBW LEDs
7° to 40° Motorized Zoom
38 Color Macros and Variable Speed Macro Effects
Variable 3,200-10,000K Color Temperatures
Selectable Dimming Curve Effects
Adjustable LED Refresh Rate and Gamma Brightness

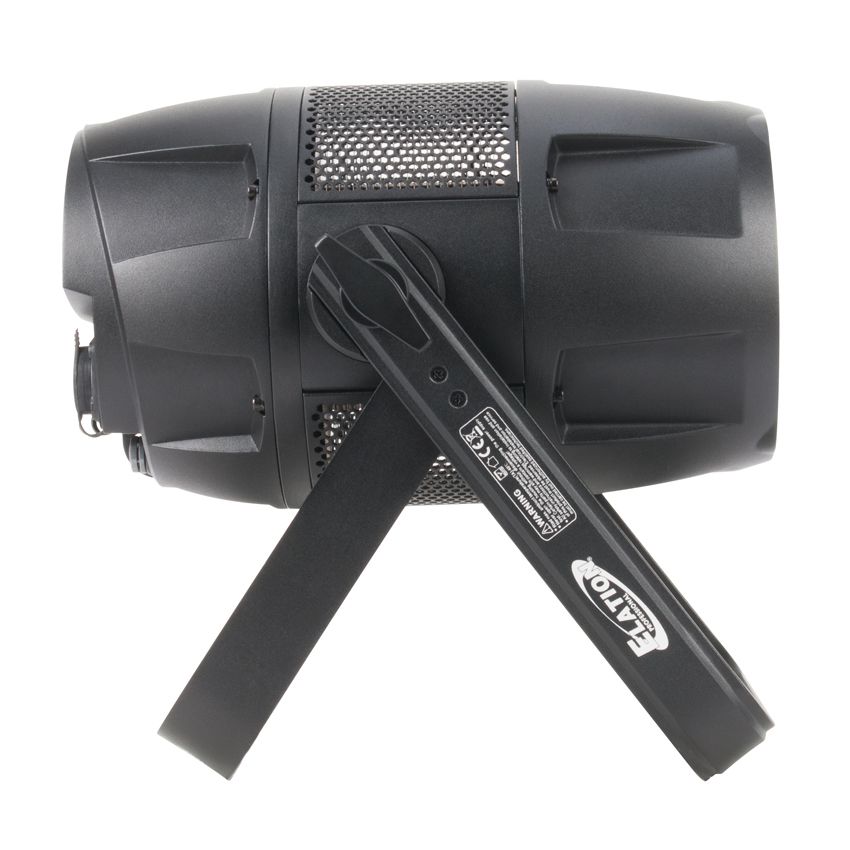

Dual Rigging Yoke / Floor Strand
Durable Die-Cast Housing


SOURCE

7x 30W Osram™ Quad-Color RGBW LEDs
30,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

3,200+ Total Lumen Output
Zoom Range 7° - 40°
Beam Angle: 8.8° - 36.5°
Field Angle: 13.9° - 53.6°


EFFECTS

Motorized Zoom
38 Color Macros and Variable Speed Macro Effects
Variable 3,200-10,000K Color Temperatures
Selectable Dimming Curve Effects


COLOR

RGBW


CONTROL / CONNECTIONS

(5) Multiple DMX Channel Modes (12 total channels)
Adjustable Refresh Rate (600-28,800Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)

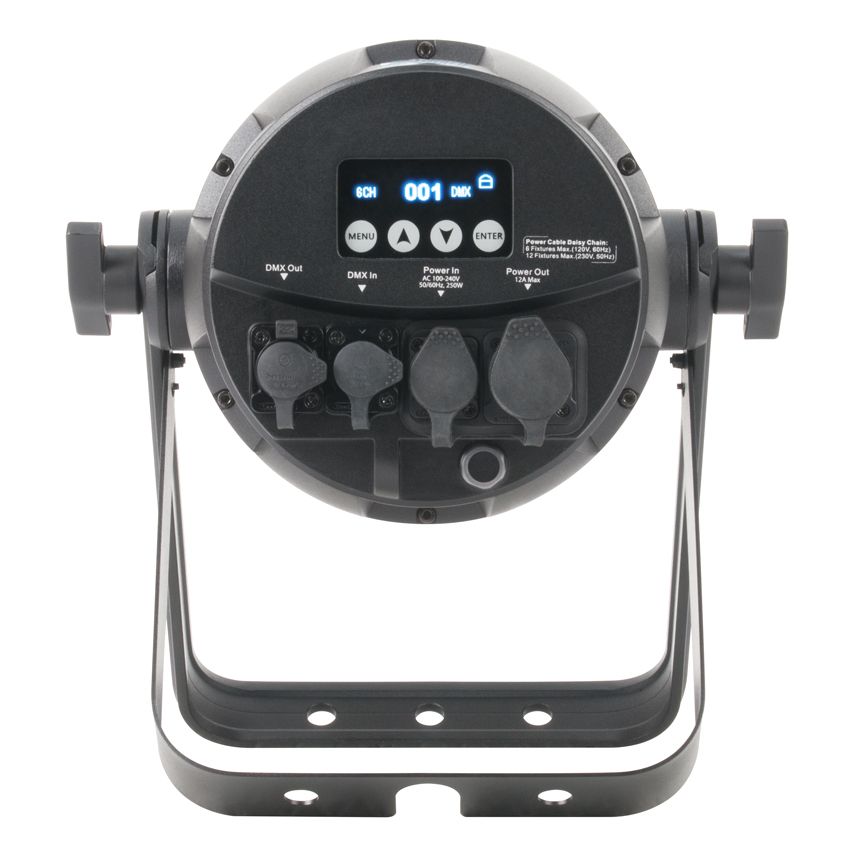

4 Button 180° Reversible OLED Menu Control Display
DMX and RDM Protocol Support
IP Rated 5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network


SIZE / WEIGHT

Length: 12.4” (316mm)
Width: 9.6” (245mm)
Vertical Height: 7.8” (197mm)
Weight: 19.0 lbs. (8.6kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
250W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


FIRMWARE UPDATES

Current firmware can be found here (login required)




Specifications and documentation subject to change without notice
