  • Arena Q7 Zoom
Code 1236100113

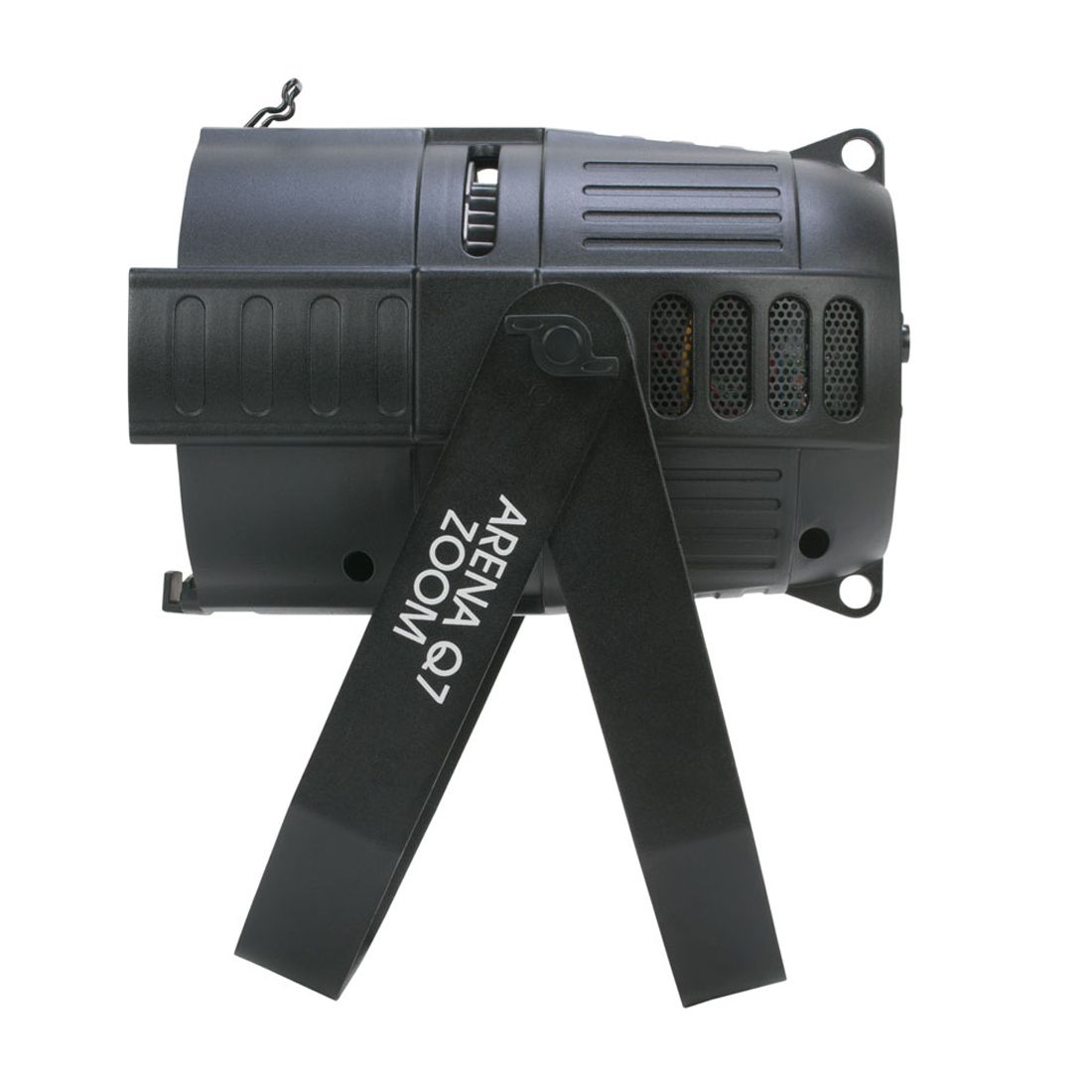

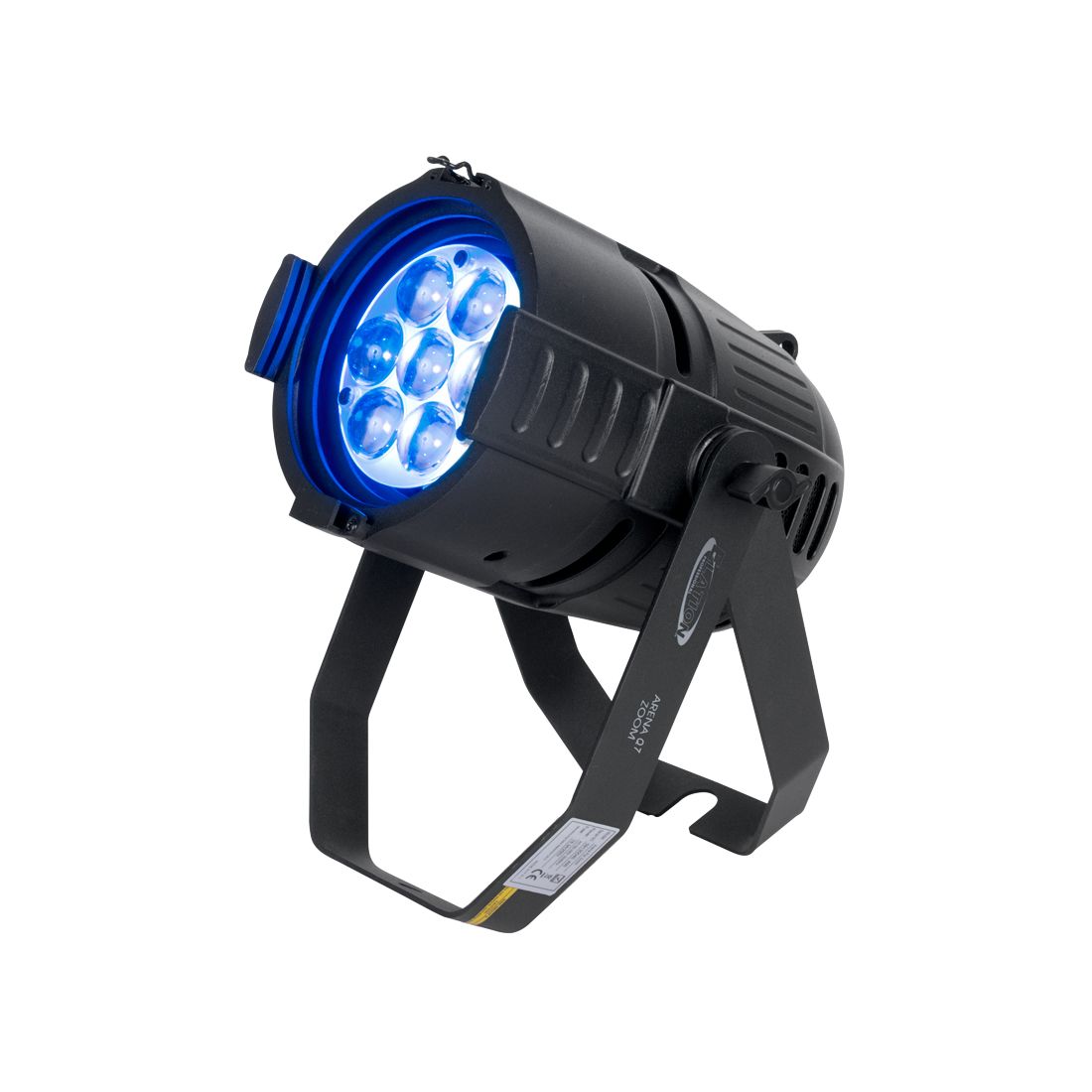

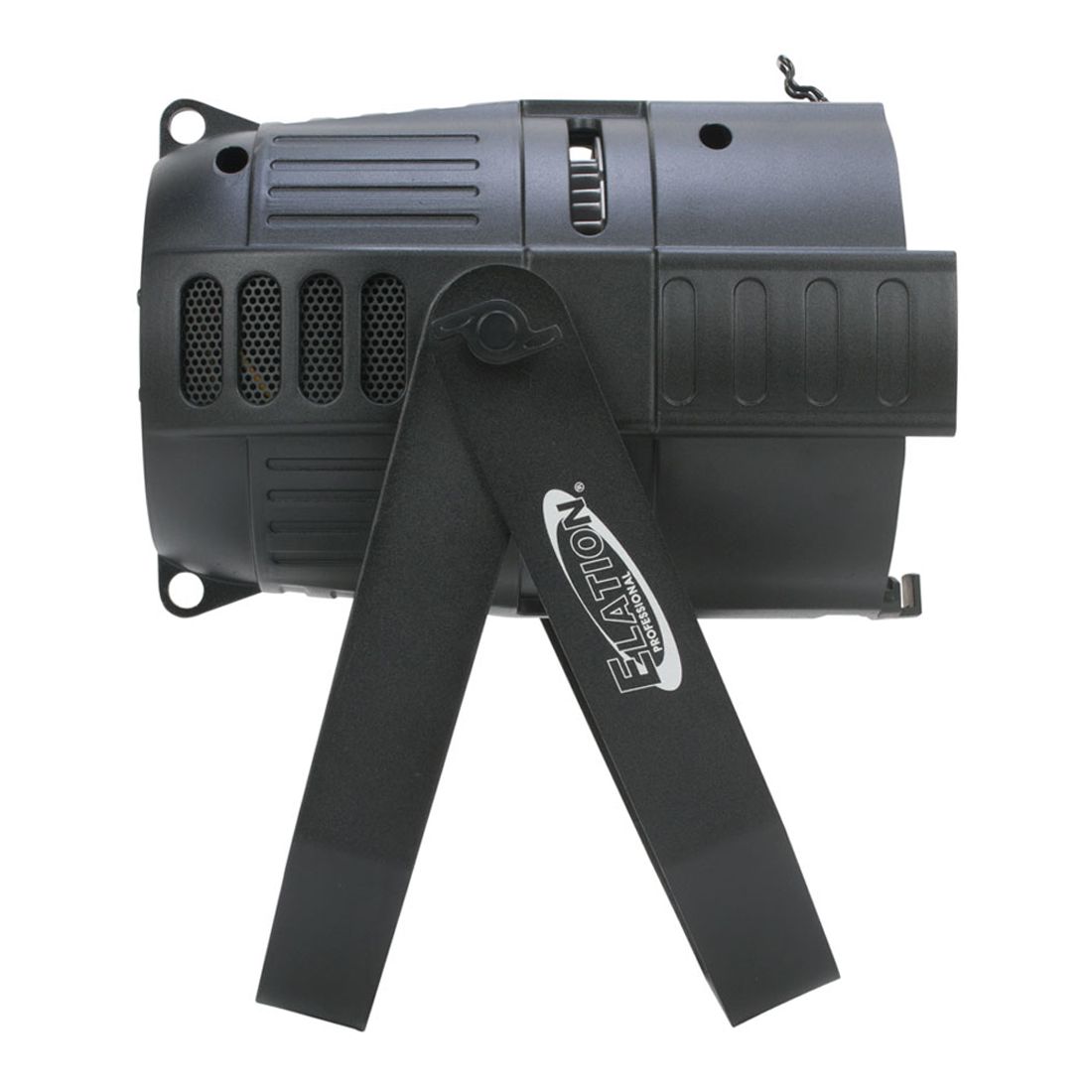

Arena Q7 Zoom

The Arena Q7 Zoom™ feature (7) 10W QUAD Color LEDs from Osram™, 10° to 60° motorized zoom, strobe effects, variable color temperature (3,200K – 7,200K), variable dimming curves, locking 5pin DMX in/out and locking power in/out connections, flicker free operation for TV and Film, LCD menu display with 4 button control panel, integrated dual yoke/floor stand and a multi-voltage universal auto switching power supply (100-240V).

Technical Data

FEATURES

Versatile LED Zoom Par Luminaire
Motorized 10° - 60° Zoom
Full RGBW Color Mixing
Variable Dimming Curves
Flicker Free Operation for TV and Film


SOURCE

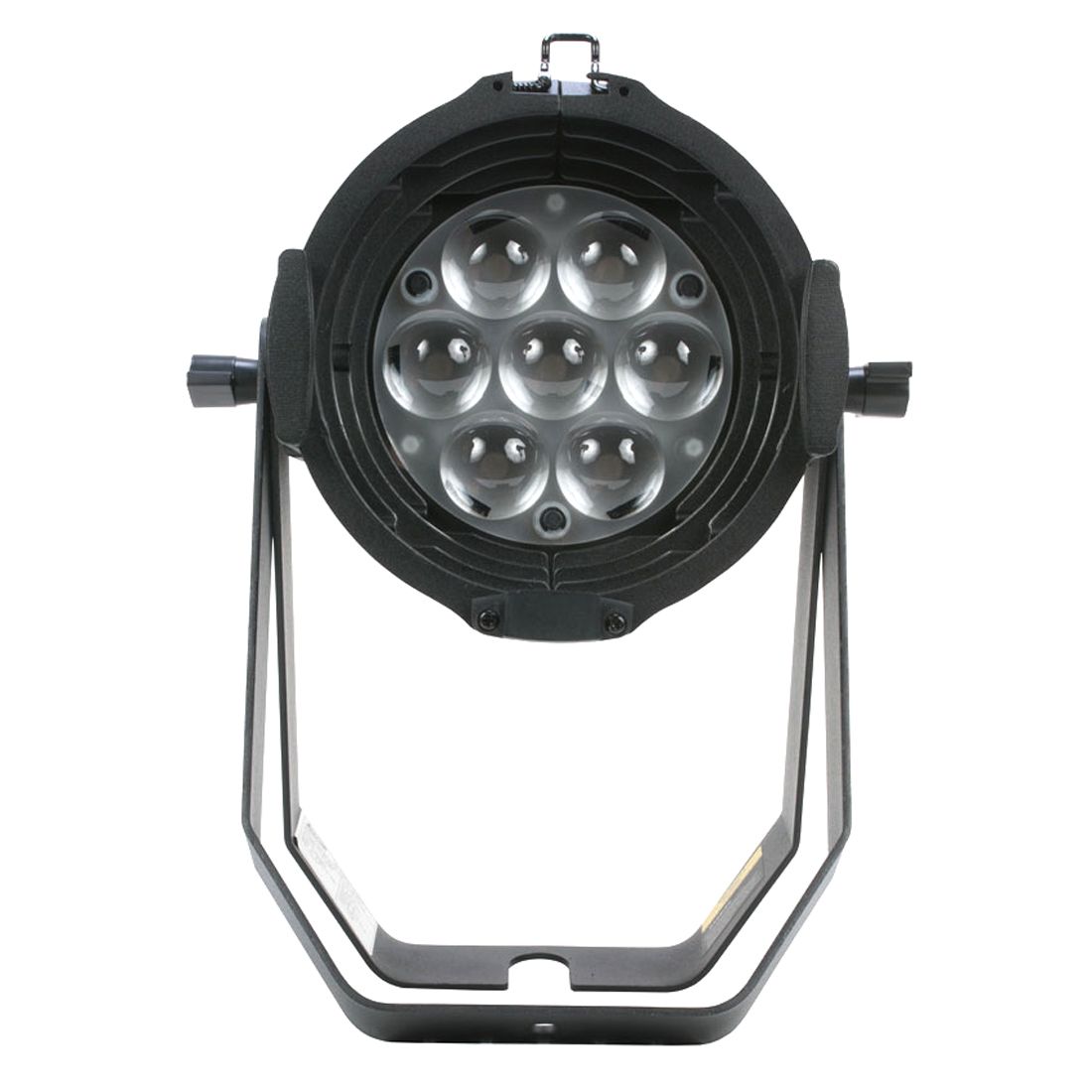

7 x 10W Osram™ QUAD Color (RGBW) LEDs
50,000 Hour Average LED Life*


PHOTOMETRIC DATA

47,500 LUX 706 FC @ 3.3’ (1m) (10° Beam Full On)
3680 LUX 342 FC @ 3.3’ (1m) (60° Beam Full On)


EFFECTS

64 Colour Macros
Strobe & Variable Strobe Macros
Electronic Dimming & Variable Dimming Curves


COLOR

RGBW

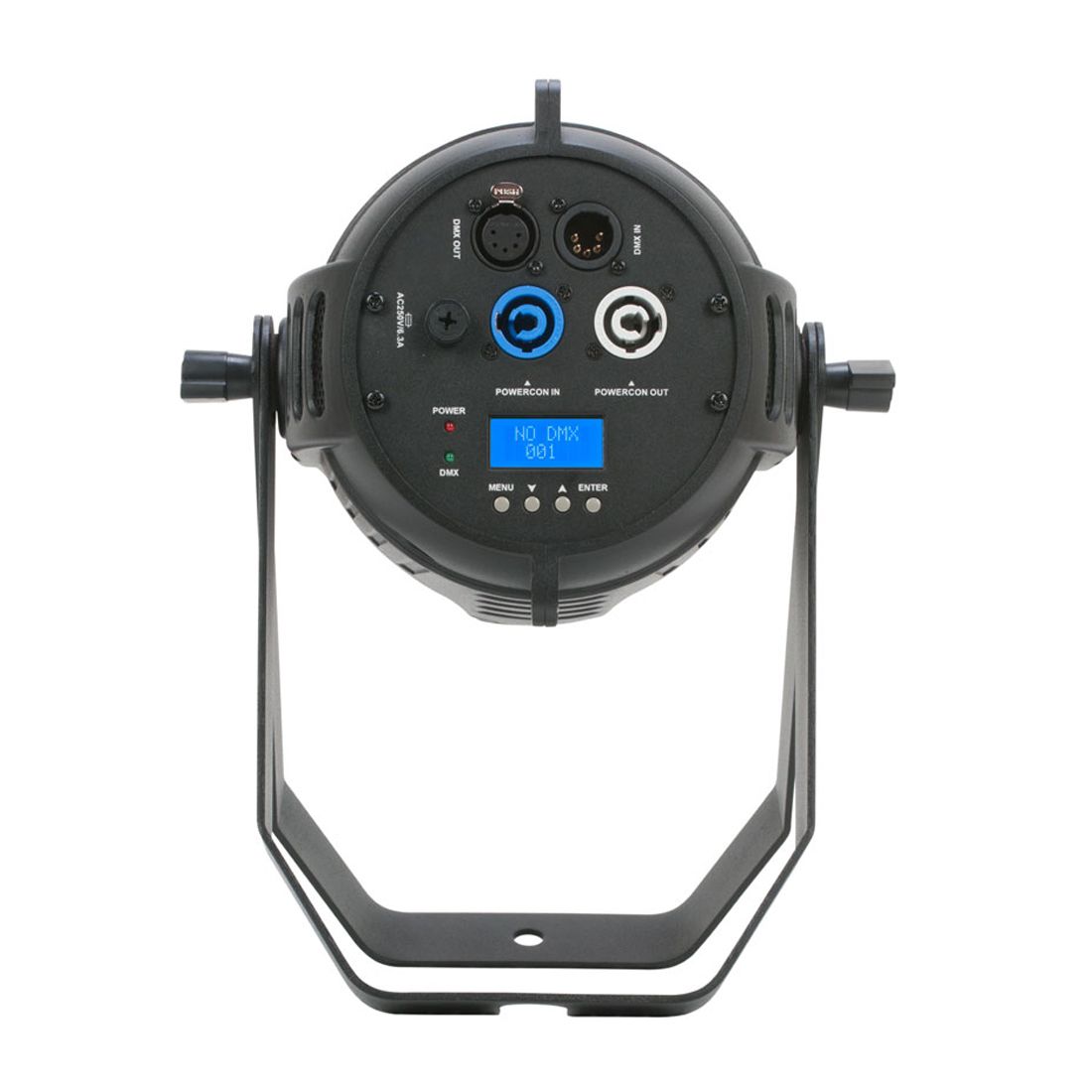

CONTROL / CONNECTIONS

7 DMX Channel Modes (5 / 6 / 7 / 9 / 10 / 15 / 16)
4 Button Control Panel
LCD Menu Display
5pin DMX In/Out
Power cable In/Out
Power Link Up To (15) Units at 120V, (28) Units at 230V
With Wired Digital Communication Network


SIZE / WEIGHT

Length: 15.3” (388mm)
Width: 7.5” (190mm)
Vertical Height: 7.1” (180mm)
Weight: 13.2 lbs. (6 kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
95W Max Power Consumption
Max Ambient Temperature 104°F (40°C)


OPTIONAL ACCESSORIES

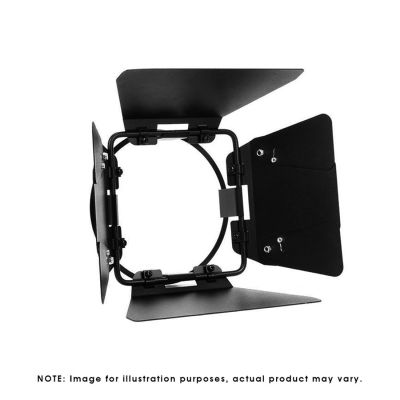

1236100156 Barndoor for Arena Q7 Zoom
1322000058 A-Loader HH


FIRMWARE UPDATES

Current firmware can be found here (login required)

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Specifications and documentation subject to change without notice
