A-Loader HH

Code 1322000058

The A loader HH™ is a battery powered hand held software uploader device used to update Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the uploader to the fixture using a 3pin or 5pin DMX cable (not included). Elation software updates (not included) are stored on a SD card (included) and inserted into the uploader. A loader HH™ features an LCD display, 4 push button control panel, a SD card slot, 3pin...

Code 1322000058

A-Loader HH

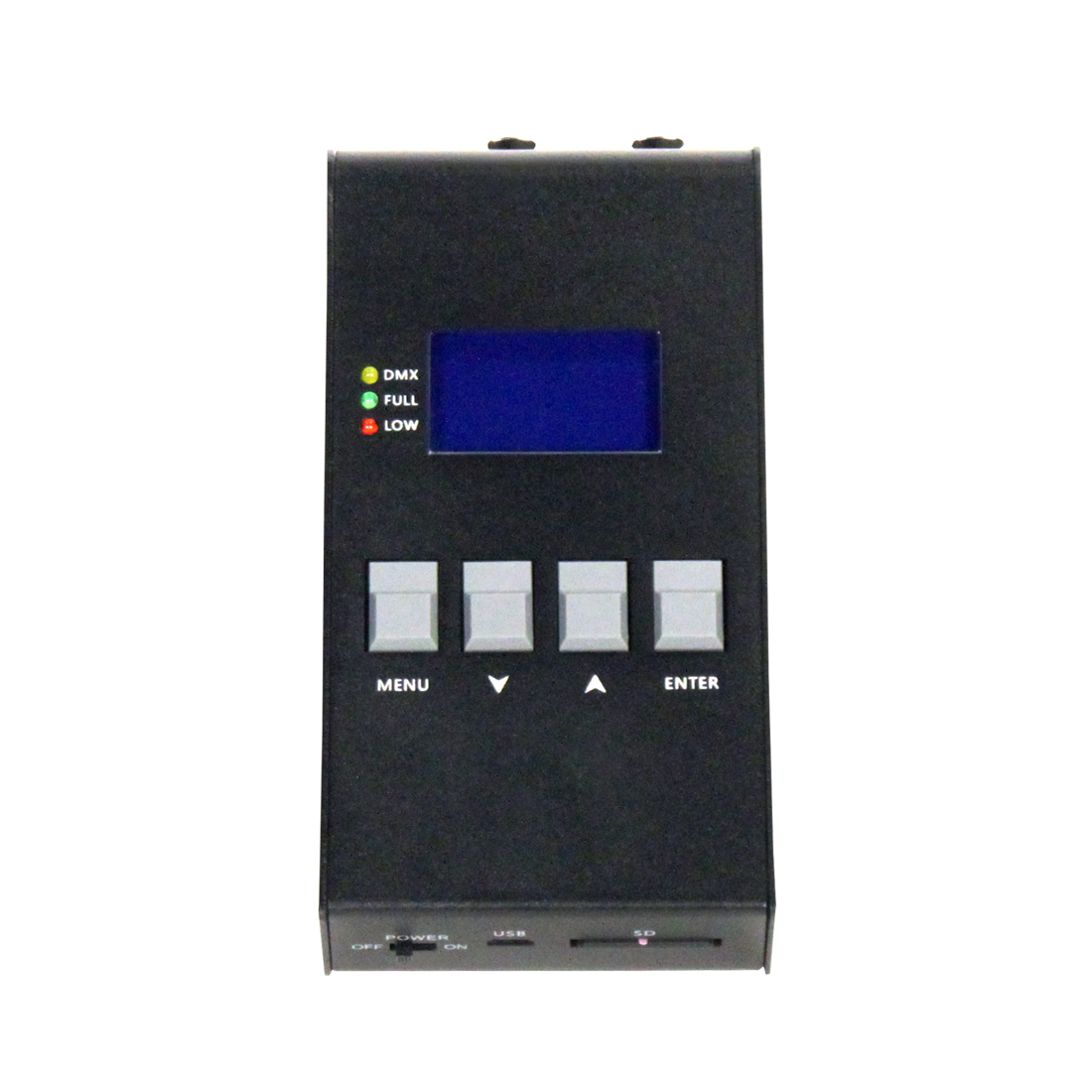

The A loader HH™ is a battery powered hand held software uploader device used to update Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the uploader to the fixture using a 3pin or 5pin DMX cable (not included). Elation software updates (not included) are stored on a SD card (included) and inserted into the uploader. A loader HH™ features an LCD display, 4 push button control panel, a SD card slot, 3pin and 5pin XLR DMX outputs, an On/Off switch and includes a 12VDC external power supply and blank SD card.

Technical Data

CONTROL / CONNECTIONS

4 Push Button Control Panel
LCD Menu Display

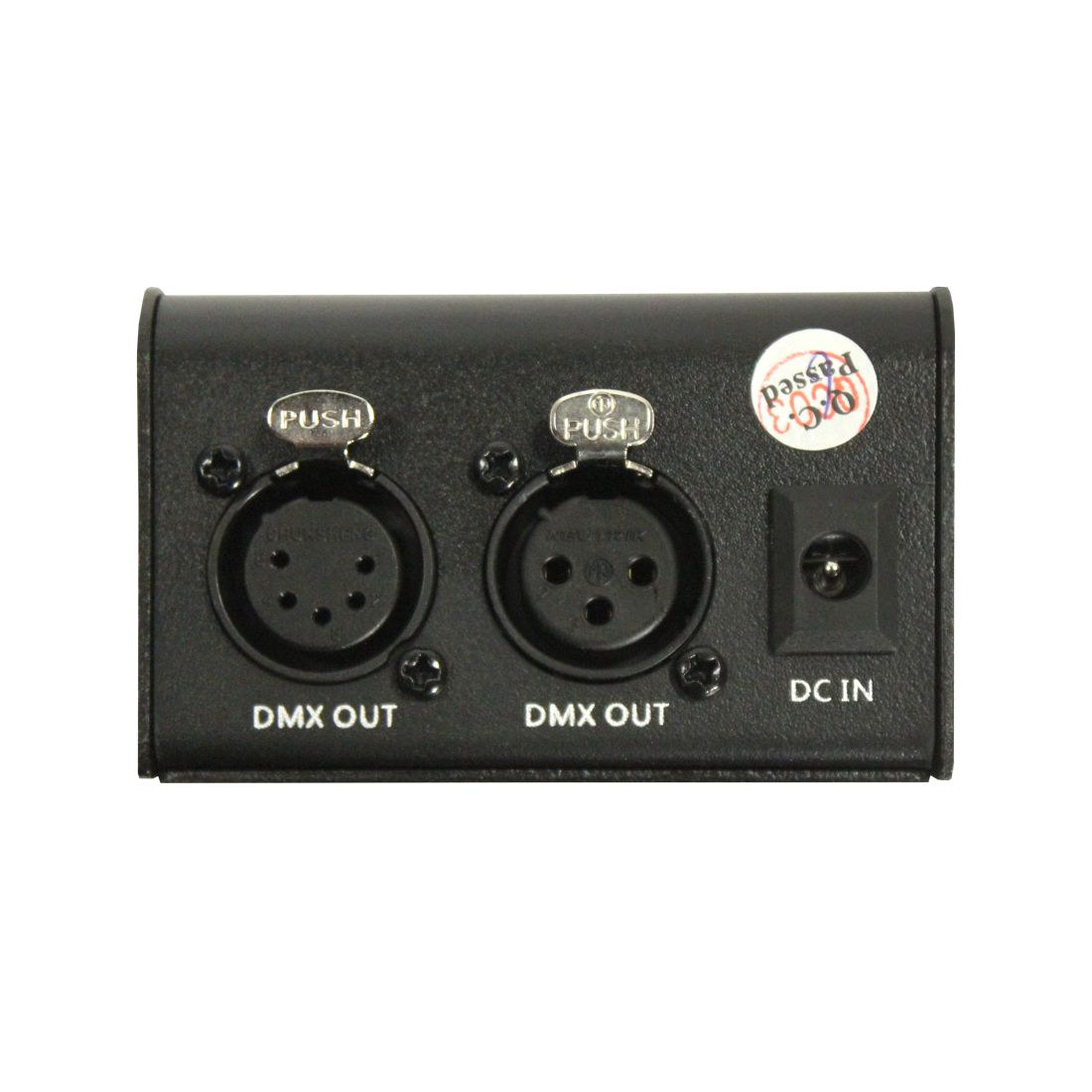

3pin and 5pin DMX Out

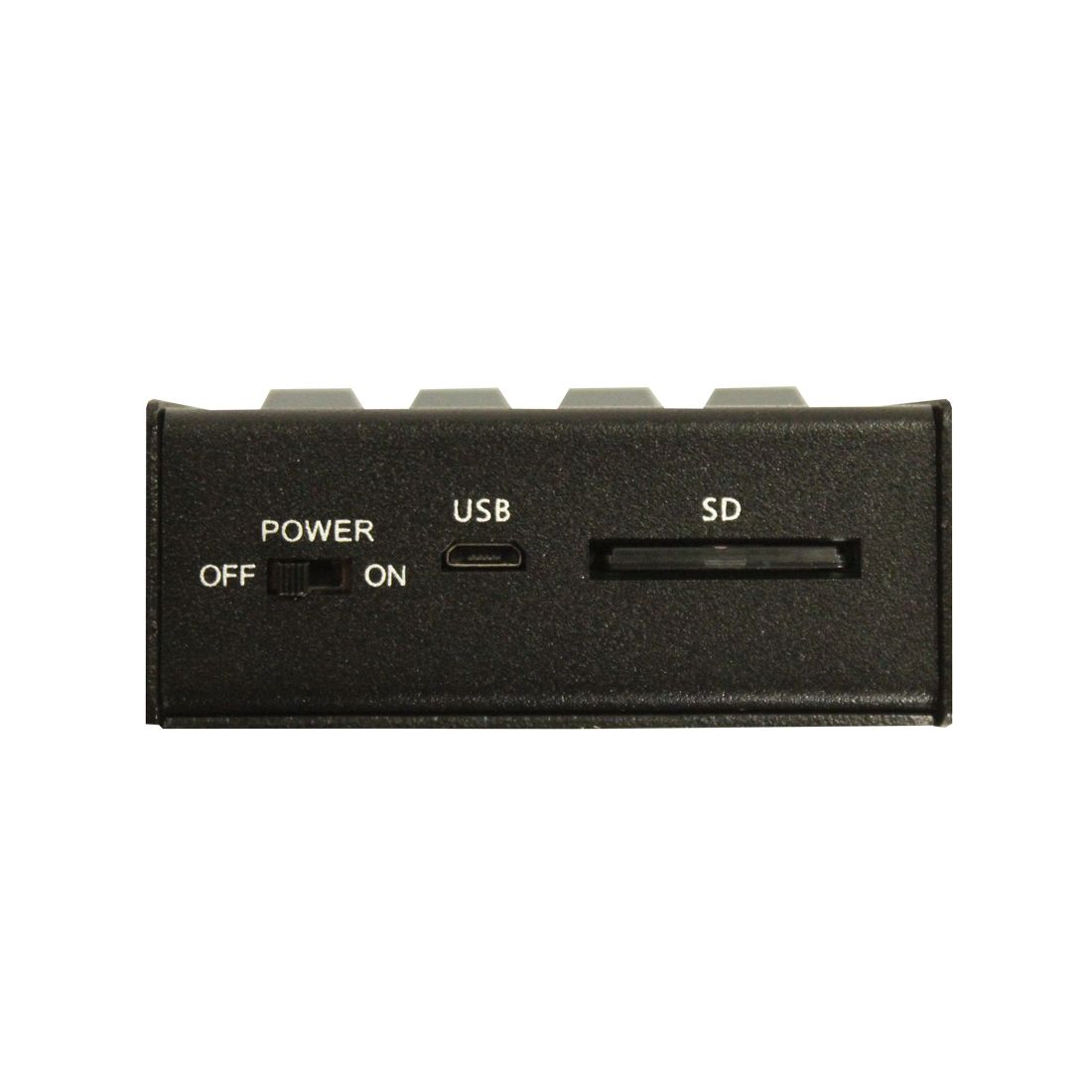

SD Card Slot
Mini USB Input
12VDC Power Input

SIZE / WEIGHT

Length: 6.8” (173mm)
Width: 3.4” (86mm)
Vertical Height: 2.0” (51mm)
Weight: 1.1 lbs. (0.5 kg)

ELECTRICAL

12VDC External Power Supply

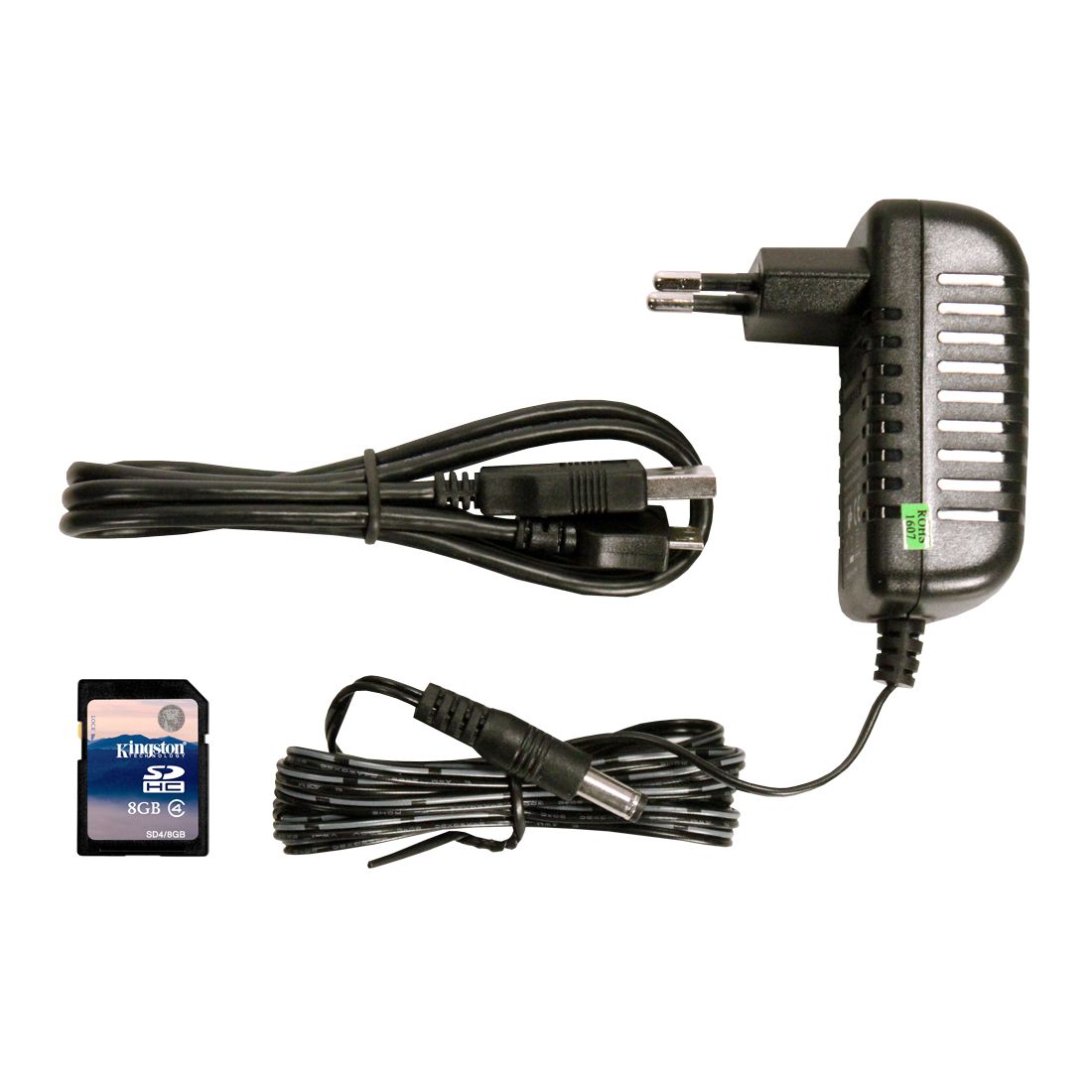

INCLUDED ITEMS

SD Card
12VDC External Power Supply

Specifications and documentation subject to change without notice
